Porshe 911 (997). Manual - part 923

Installing CD changer

Installing CD changer

CD changer adjusting screw position

Note

If a new CD changer is installed, the adjusting screw must be in position H.

Retaining clips

1. Replace retaining clips for CD changer retaining

frame.

Diagnostic system: reading out fault memory and activating systems

 Installing CD changer

3849

Fastening screws

2. Insert the CD changer into its retaining frame and screw down tight with the six fastening screws

-6-

 . → Tightening torque: 2.5 (2 ftlb.) Nm

Electric connectors

3. Insert electric connectors into the audio components until they are felt to

engage.

Installation

4. Position the support with the CD changer already attached on the body and move it backwards until

the support clicks into place.

Diagnostic system: reading out fault memory and activating systems

Installing CD changer

3850

5. Check whether the clips have engaged in the body by pulling the CD changer.

Installing the US version of the CD changer.

CD changer adjusting screw position

Note

If a new CD changer is installed, the adjusting screw must be in position H.

Installing holder for CD changer

1. Check both sheetmetal clips -3- and both fastening parts -4- , replace if

necessary.

2. Press in holder for CD changer -1- with both fastening parts -4- to the body and tighten both

fastening screws. → Tightening torque: 6.5 (5 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

Installing the US version of the CD changer.

3851

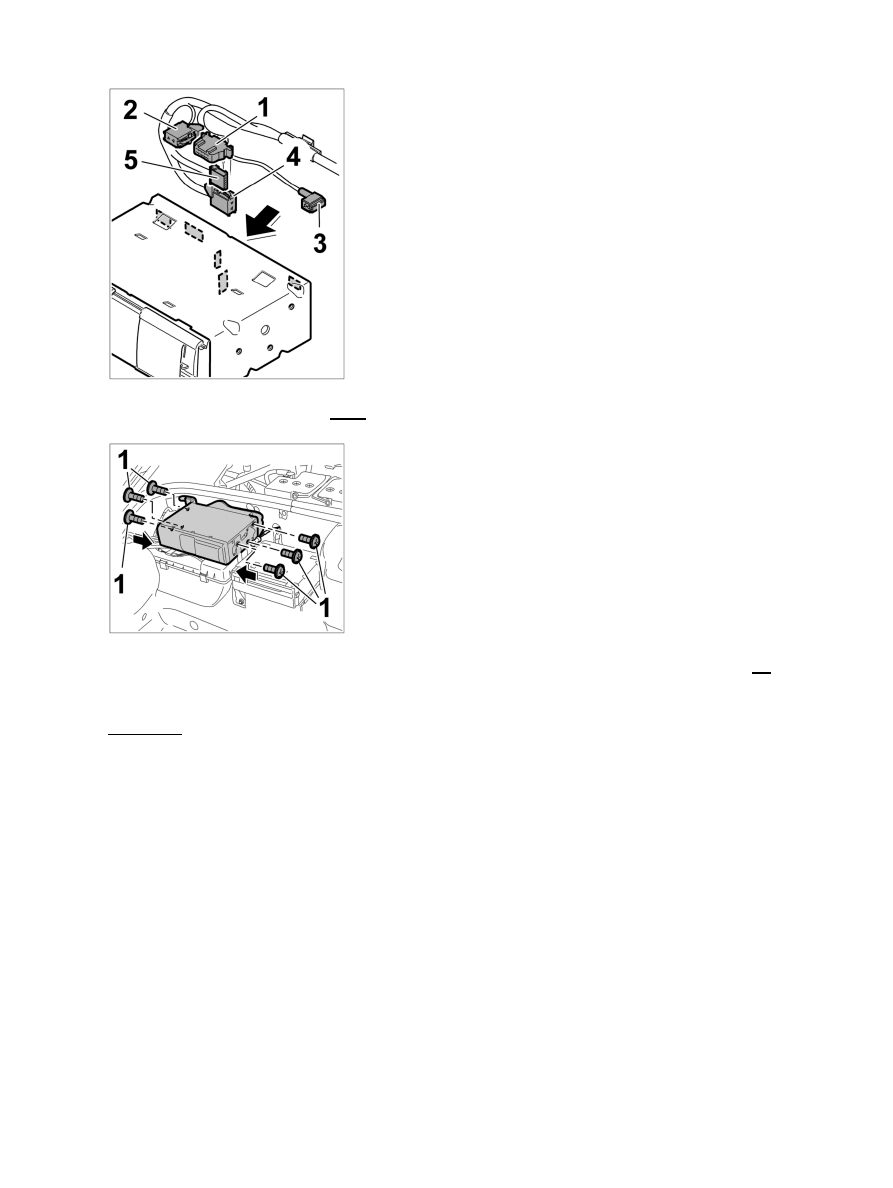

Electrical plug

3. Plug the electrical connectors -4, 5- into the CD changer until they are felt to engage.

Fastening screw

4. Insert the CD changer into its retaining frame and screw down tight with six fastening screws -1- . →

Tightening torque: 2.5 (2.0 ftlb.) Nm

Subsequent work

Subsequent work - CD changer

→  23 Removing and installing luggage compartment cover - installing

Subsequent work - CD changer

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

3852
