Porshe 911 (997). Manual - part 918

91 47 19 Removing and installing radio antenna - as
of MY 2005

- Preliminary work
- Removing radio antenna
- Installing radio antenna
- Subsequent work

Preliminary work

Preliminary work - radio antenna

→  21 Removing and installing cowl panel cover -removing

Removing radio antenna

Removing radio antenna

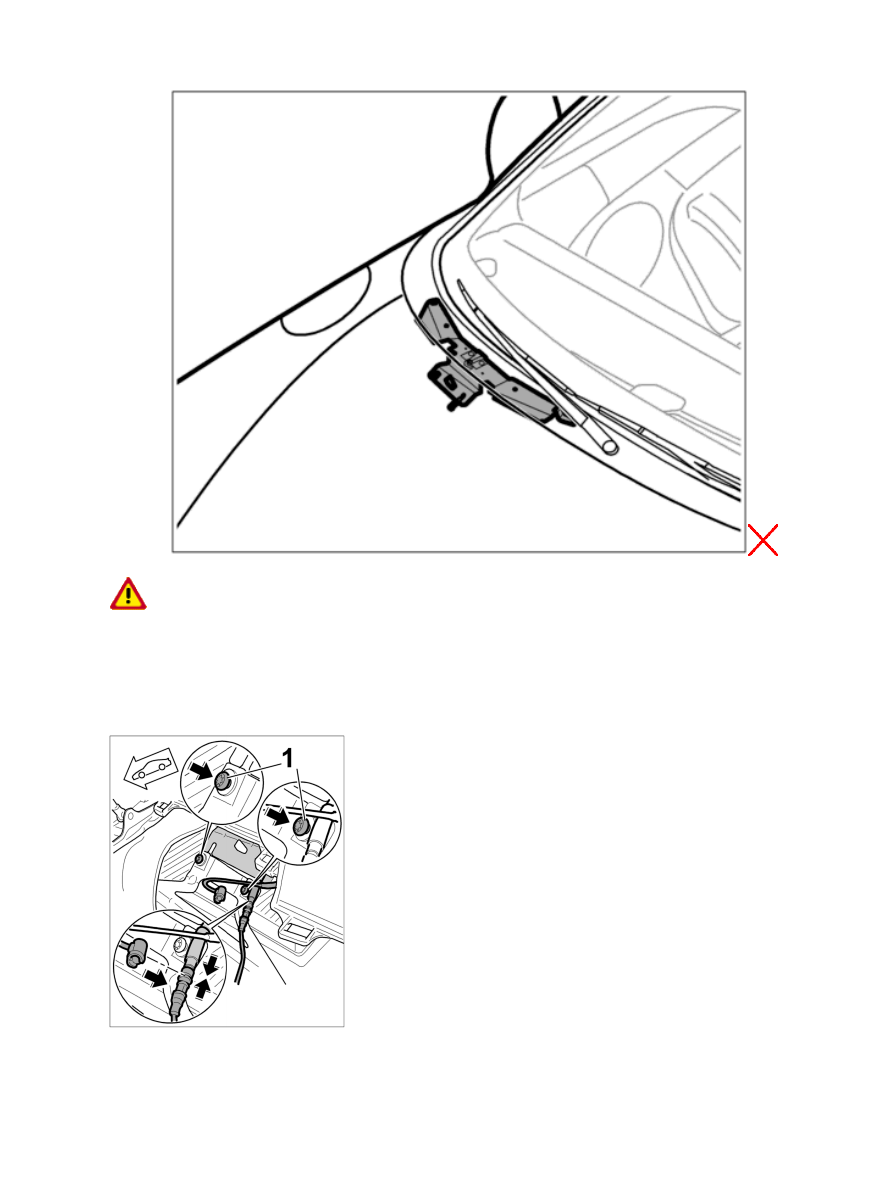

Installation Location:

3829

Install location

ATTENTION

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

Antenna lead

1.

Diagnostic system: reading out fault memory and activating systems

Removing radio antenna

3830

Before removing cowl cover, unclip the retaining clamps for the antenna lead. Disconnect antenna lead
and undo the fastening screws -1- .

Radio antenna installation

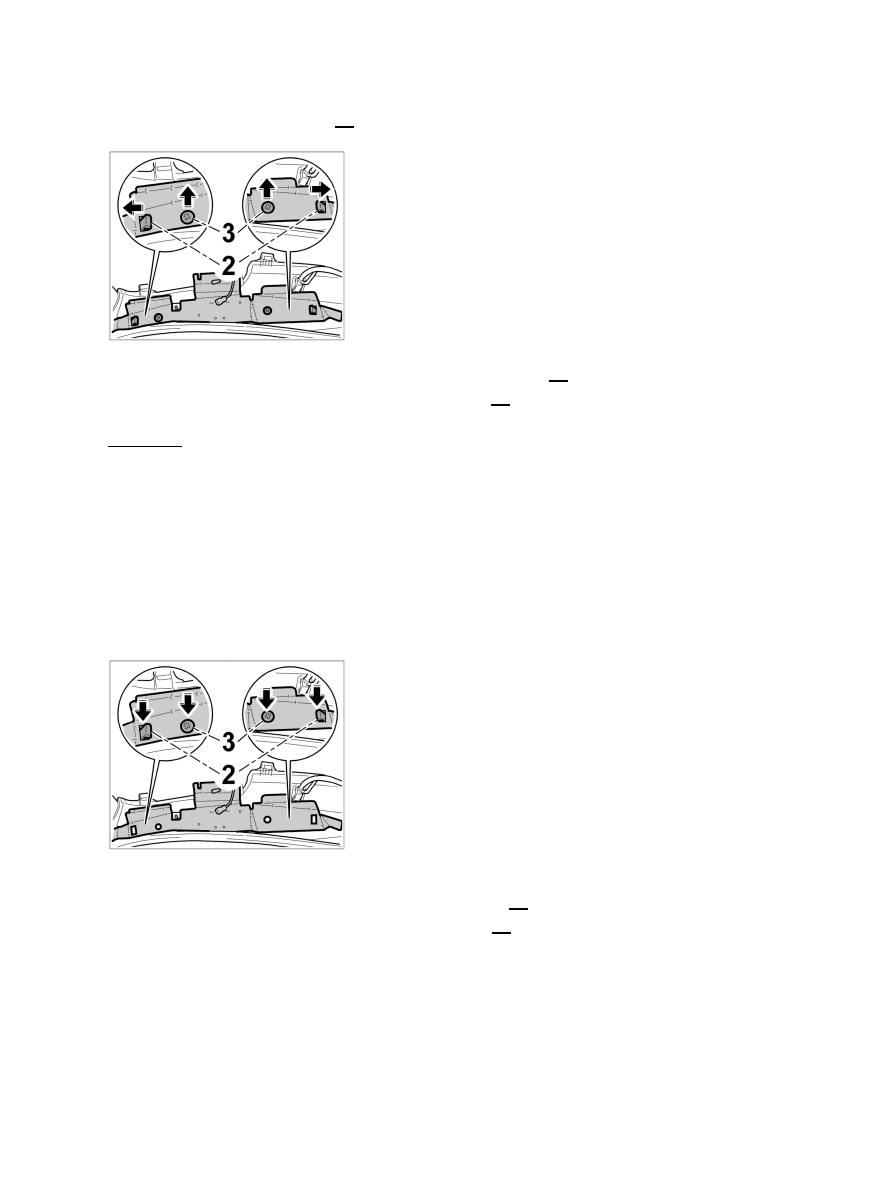

2. Turn around cowl cover and unscrew the two fastening screws -3- .

3. Unclip the radio antenna from the cowl in both places -2- .

Installing radio antenna

Installing radio antenna

Radio antenna installation

1. Clip the antenna onto the cowl cover to the left and right -2- .

2. Screw down radio antenna with both fastening screws -3- .

Diagnostic system: reading out fault memory and activating systems

 Installing radio antenna

3831

Antenna lead

3. Connect the antenna lead and clip on the

fuse.

4. Position the antenna on its bracket and screw it down tight with fastening screws

-1-

 .

Subsequent work

Subsequent work - radio antenna

→  23 Removing and installing cowl panel cover - removing

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

Diagnostic system: reading out fault memory and activating systems

Installing radio antenna

3832
