Porshe 911 (997). Manual - part 916

- Removing loudspeaker amplifier
- Installing loudspeaker amplifier
- Programming loudspeaker amplifier

Tools

Designation

Type

Number

Explanation

PIWIS tester

special tool

9718

Removing loudspeaker amplifier

Removing loudspeaker amplifier

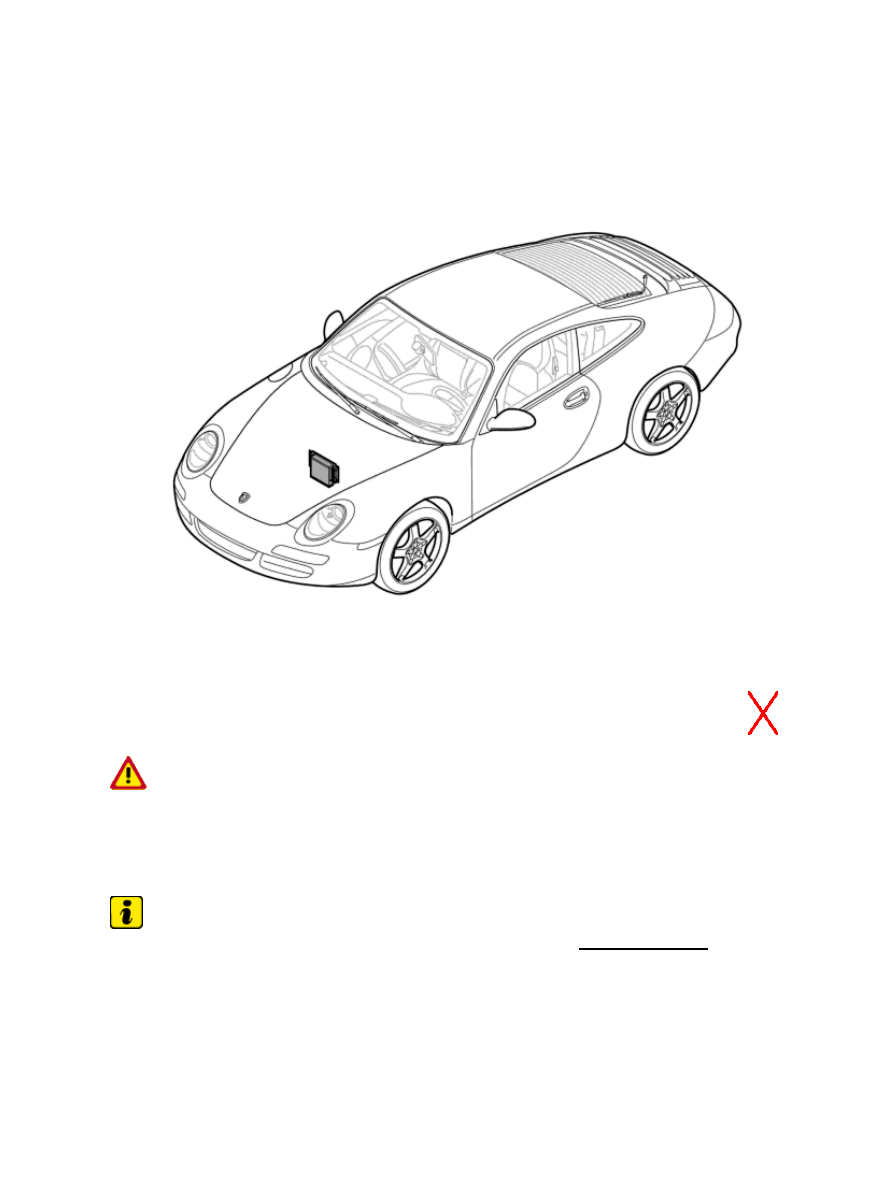

Installation Location:

3821

Install location

ATTENTION

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

Note

If the amplifier is to be replaced, the coding must be read out using the PIWIS tester 9718 before removing
the amplifier.

1. Remove panel for hazard warning triangle and tyre air bottle.

Diagnostic system: reading out fault memory and activating systems

Removing loudspeaker amplifier

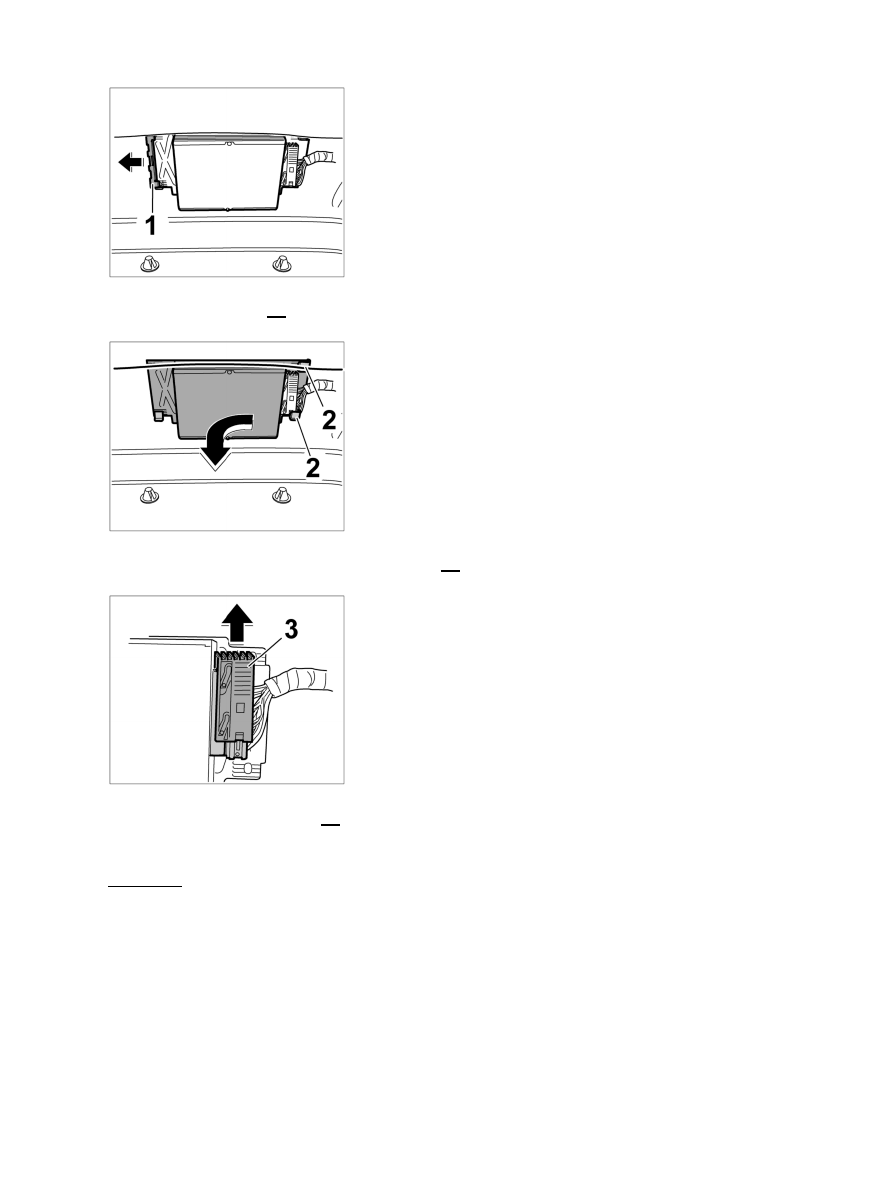

3822

Metal clips for amplifier

2. Remove metal clips -1- from amplifier.

Amplifier bracket

3. Pull amplifier out of its two retaining brackets -2- .

Electrical connector

4. Release electrical connector -3- and remove from

amplifier.

Installing loudspeaker amplifier

Installing loudspeaker amplifier

Diagnostic system: reading out fault memory and activating systems

 Installing loudspeaker amplifier

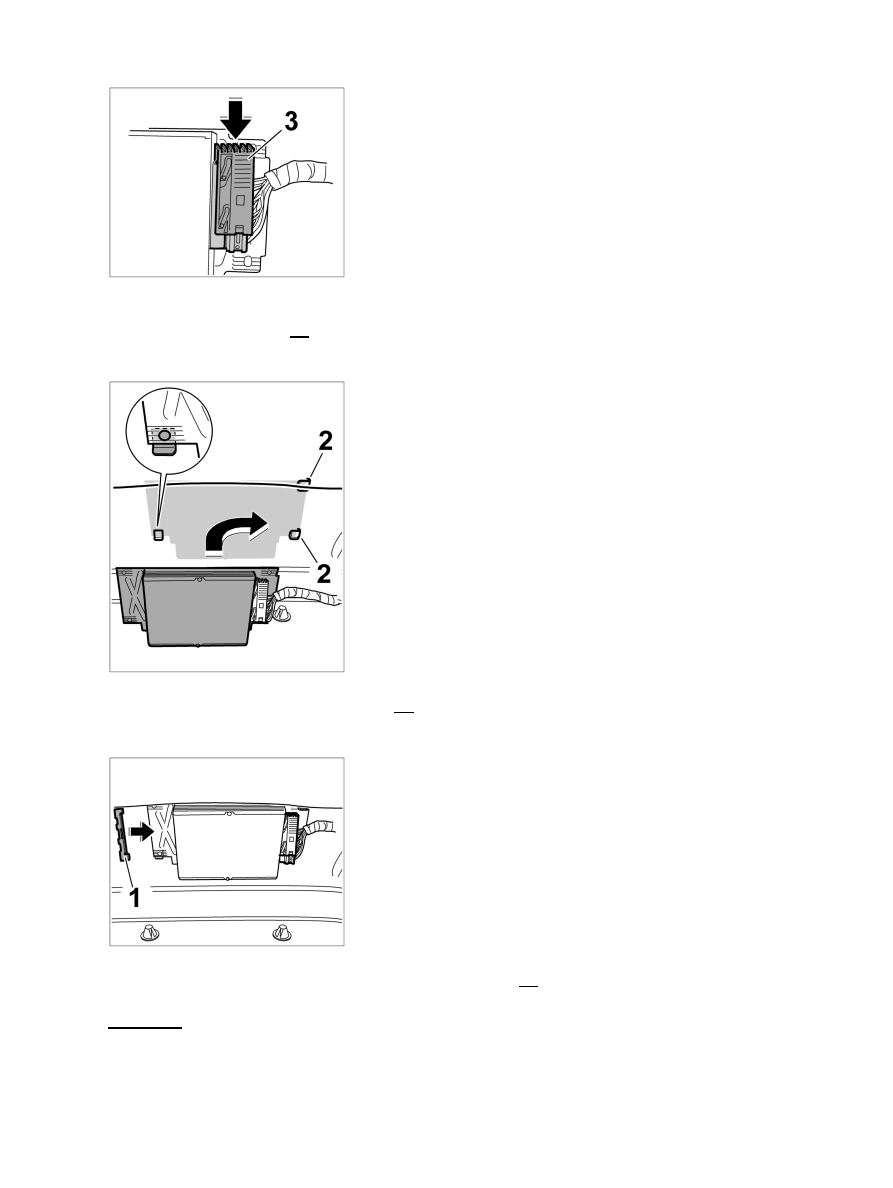

3823

Electrical connector

1. Push electric connector -3- onto the amplifier and

lock it.

Amplifier bracket

2. Push the amplifier into its two brackets -2- and allow it to rest on the guide

rail.

Metal clips for amplifier

3. Push amplifier into its brackets and clip on the metal clips -1- .

Diagnostic system: reading out fault memory and activating systems

Installing loudspeaker amplifier

3824
