Porshe 911 (997). Manual - part 913

- Preliminary work
- Removing loudspeaker amplifier
- Installing loudspeaker amplifier
- Subsequent work
- Programming loudspeaker amplifier

Tools

Designation

Type

Number

Explanation

PIWIS tester

special tool

9718

Preliminary work

Preliminary work for loudspeaker amplifier

1. Remove the luggage compartment cover. → 703019 21 Removing and installing luggage

compartment cover - section on "Removing"

2. Remove navigation unit DVD player. → 911219 Removing and installing navigation unit - section on

"Removing"

Removing loudspeaker amplifier

Removing loudspeaker amplifier

ATTENTION

3809

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

Note

If the amplifier is to be replaced, the coding must be read out using the PIWIS tester 9718 before removing
the amplifier.

Installation Location:

Installation position

Diagnostic system: reading out fault memory and activating systems

Removing loudspeaker amplifier

3810

Unscrew amplifier holder and disengage it.

1. Unscrew fastening screw -1- and fastening nut -2- .

2. Lift up holder and disengage at the body.

Unplugging electric connectors

3. Turn the holder around, release the electric connectors -a- and unplug from the amplifier.

4. Unscrew the four fastening screws -3- and remove amplifier from the holder.

Removing the loudspeaker amplifier (US version)

ATTENTION

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

Diagnostic system: reading out fault memory and activating systems

Removing the loudspeaker amplifier (US version)

3811

Note

If the amplifier is to be replaced, the coding must be read out using the PIWIS tester 9718 before removing
the amplifier.

Installation Location:

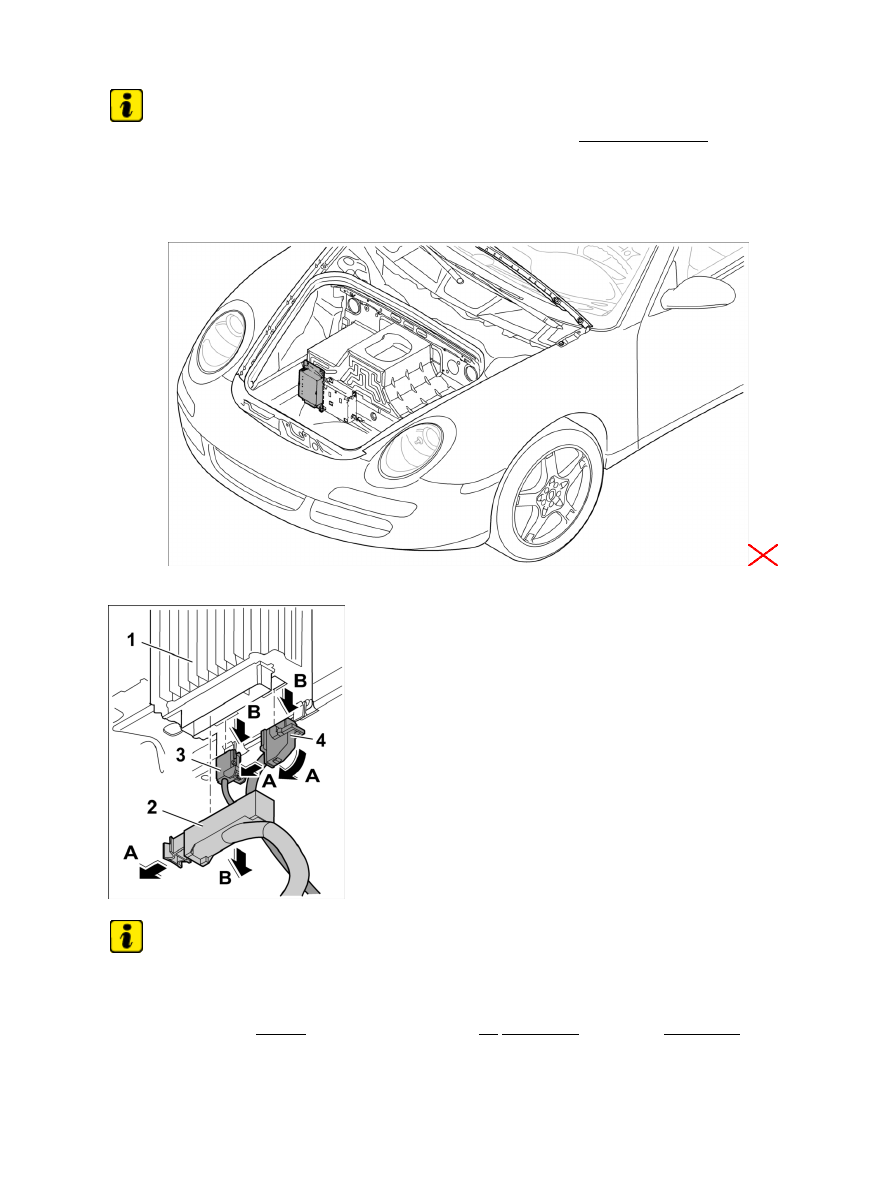

Installation location for loudspeaker amplifier (C4 USA version)

Pulling off connector on loudspeaker amplifier

Note

The number of plugs can vary, depending on the equipment.

•

1. Release connector -2 to 4- on loudspeaker amplifier -1- -arrows A- and pull off -arrows B- .

Diagnostic system: reading out fault memory and activating systems

Removing the loudspeaker amplifier (US version)

3812
