Porshe 911 (997). Manual - part 908





Rod antenna installation location for the 911 Cabriolet

ATTENTION

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

1. Remove the ignition key and switch off the audio system.

2. Unscrew antenna rod on the antenna base cover.

Antenna base cover

3. Unscrew fastening nut -B- and remove antenna base cover -A- .

4. Remove -arrow- seal.

Diagnostic system: reading out fault memory and activating systems

Removing rod antenna

3789

Antenna base connector

5. Take out antenna base downward and pull off both connectors -A and B- from the antenna base.

Installing rod antenna

Installing rod antenna

Antenna base connector

1. Push both connectors -A and B- onto the antenna base until they are felt to engage.

Inserting the antenna base

2. Insert antenna base in the cut-out from below. The bar of the antenna base must be inserted in the guide

nut -A- while doing so.

Diagnostic system: reading out fault memory and activating systems

 Installing rod antenna

3790

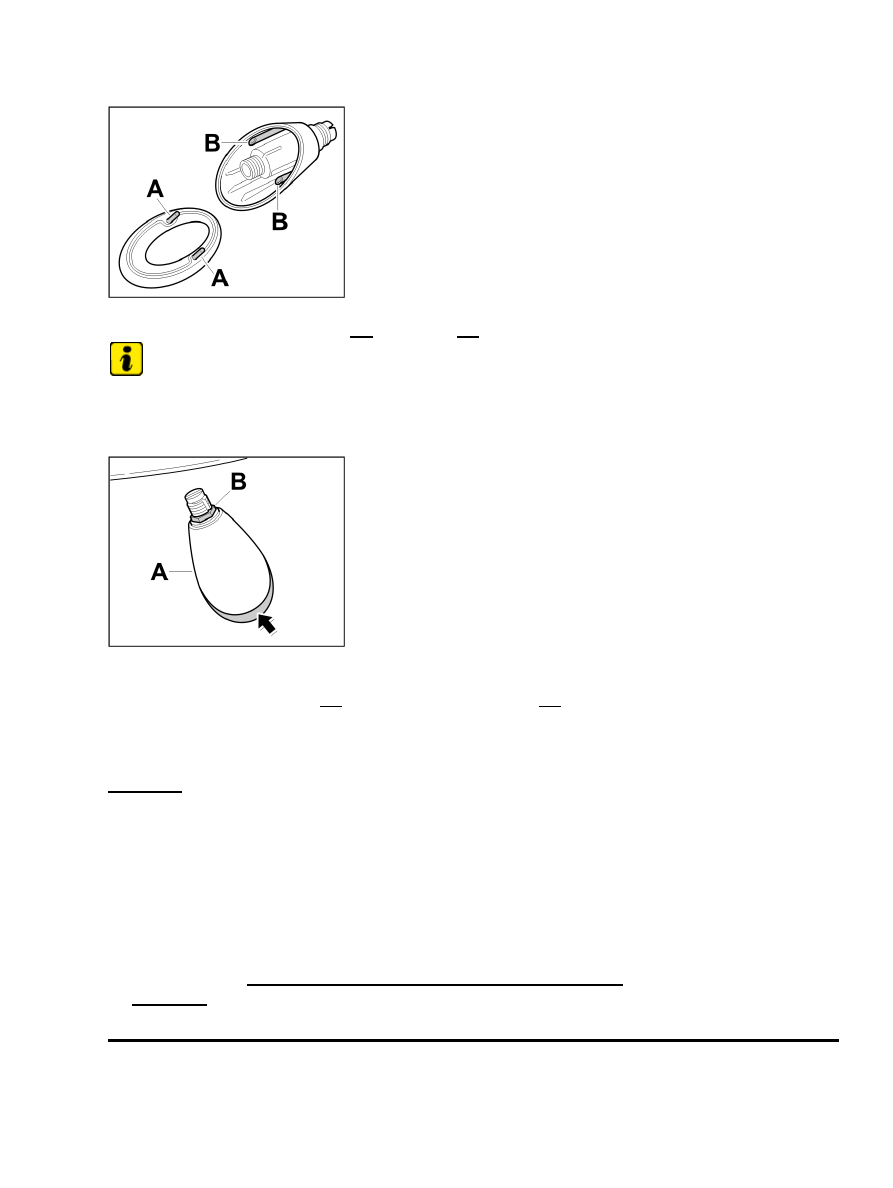

Inserting the seal on the antenna base cover

3. Insert seal with the locating pins -A- in the holes -B- on the antenna base cover.

Note

The seal (arrow) must make contact all the way around on the antenna base cover.

Antenna base cover

4. Position antenna base cover -A- and tighten the fastening nut -B- . → Tightening torque: 3 (2 ftlb.) Nm

5. Screw in antenna rod hand-tight in the antenna base

cover.

Reworking

Subsequent work

1. Install headliner. → 708419 Removing and installing headliner - section on

"Installing"

997110, 997111, 997120, 997121, 997410, 997411, 997430, 997431

Diagnostic system: reading out fault memory and activating systems

Installing rod antenna

3791
