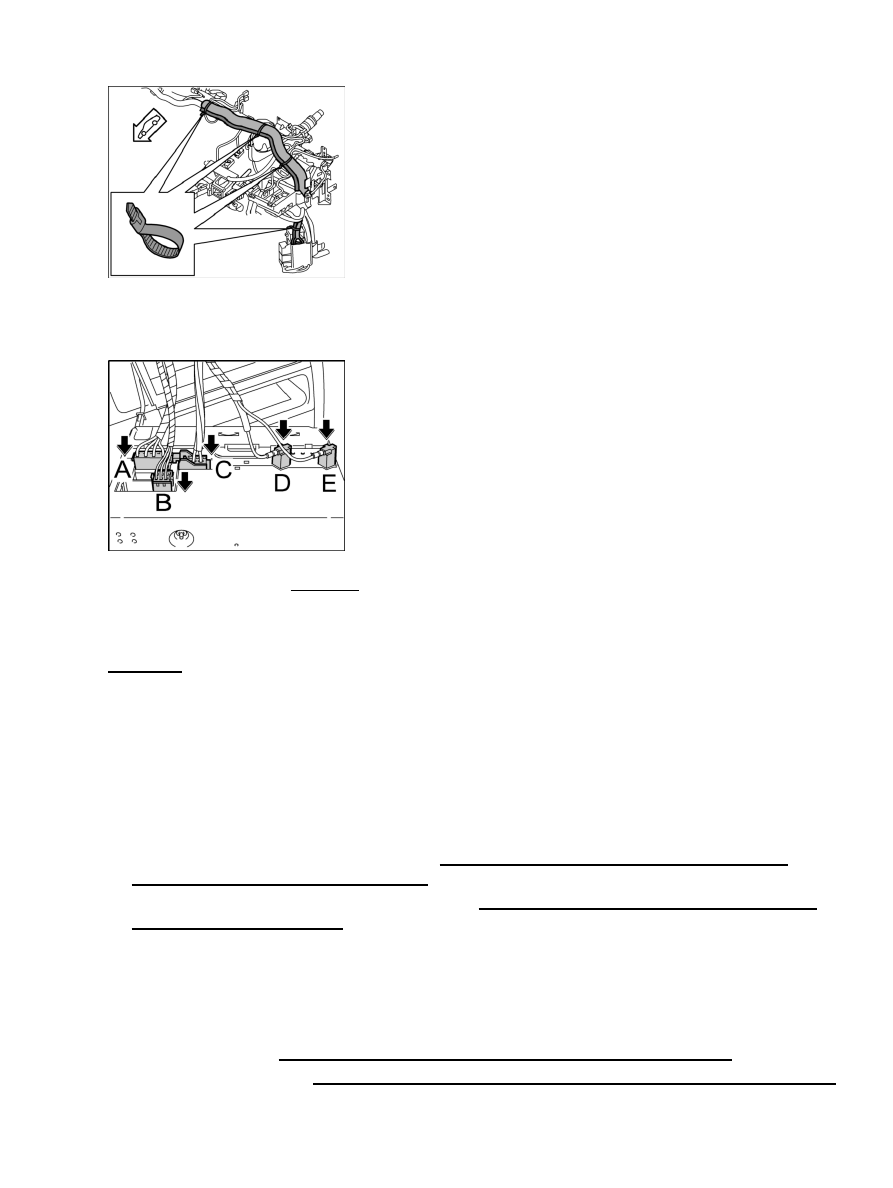

Overview of antenna leads, shown on the 911 A - PCM/radio B - Antenna control unit C - Antenna amplifier, left D - Antenna amplifier, right E - KESSY/PAS control unit F - Rod antenna G - Navigation unit H - GPS antenna PCM plug connections Note The number of plugs can vary, depending on the vehicle equipment. • 1. Release and pull off connectors -D and E- on the damaged antenna lead on the affected components. The illustration shows the connectors for the PCM display and operator control unit as 2. Cut off the connectors on the damaged antenna lead, then insulate it and tie it to the main wire harness. Diagnostic system: reading out fault memory and activating systems Installing antenna leads 3753 |
