Porshe 911 (997). Manual - part 895

Installing the car radio

Installing the car radio

Plug connections

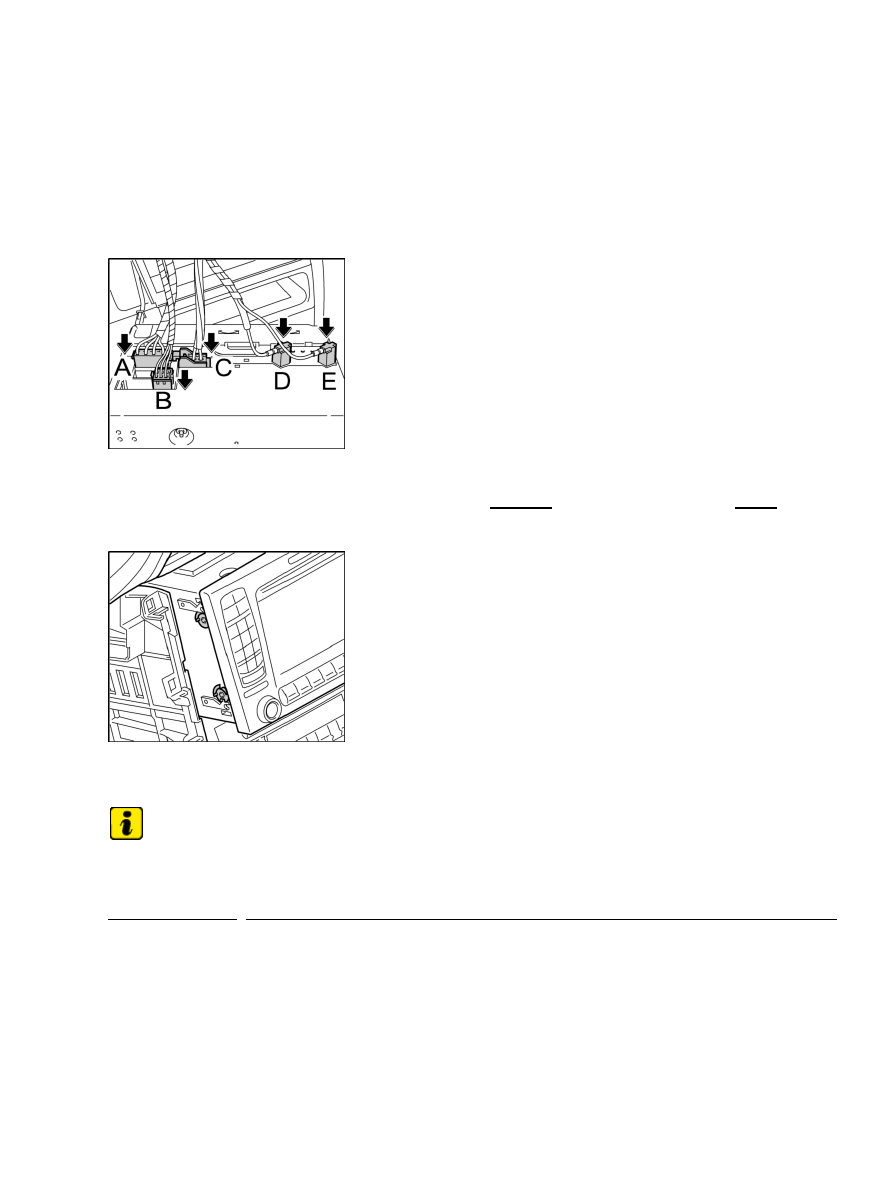

1. Connect the electric plug connections in the sequence -C, B, A- and the antenna amplifiers -D, E-

so that the plugs are felt to engage.

Locking tabs shown on the PCM

2. Check that the locking tabs on the radio are out, opening the locking mechanism with an Allen key

if necessary.

Note

Before sliding the PCM/radio into the installation slot, make sure that the electric lines are not trapped by the
PCM/radio or damaged .
After installation of a new display and PCM/radio operator control unit, the system must be activated with the
PIWIS tester 9718

. → 911019 Removing and installing display and PCM operator control unit - programming

3. Push the radio into the installation slot until the locking mechanisms engage on the radio housing.

Diagnostic system: reading out fault memory and activating systems

 Installing the car radio

3737

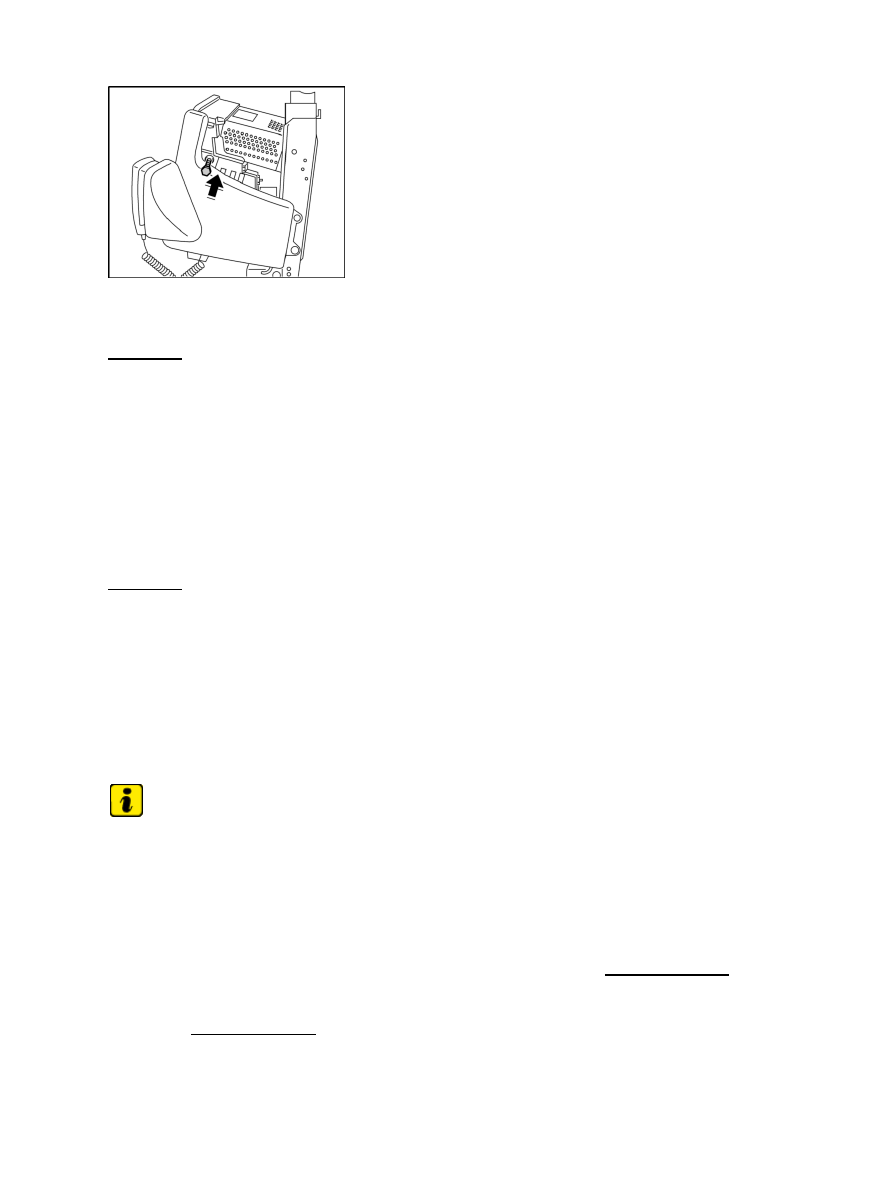

Screw locking device

4. Screw in the locking screw for the radio and tighten it.

Subsequent work

Subsequent work for car radio

Install both covers on centre console. →  23 Removing and installing centre console panel - installing

Reading out car radio

Reading out and transferring car radio codes

Note

When installing a new PCM/CDR in a vehicle, the PCM/CDR code specified in IPAS should be
present. Normally, the code is stored in the instrument cluster, and is read out from the PCM/CDR.

•

You can get the codes from IPAS or from your importer by specifying the vehicle identification
number.

•

During coding, there should be a guaranteed power supply for the PIWIS tester 9718. It is essential
to connect a battery charger with a current rating of at least 40 A to the vehicle battery.

•

The PIWIS tester 9718 instructions take precedence and in the event of a discrepancy these are the
instructions that must be followed. Deviations may occur with later software versions.

•

Diagnostic system: reading out fault memory and activating systems

Installing the car radio

3738

The procedure described here has been structured in general terms; different text or additions may
appear in the PIWIS tester 9718.

•

1. Connect the PIWIS tester 9718 to the vehicle and start it. Switch on the ignition. >> Continue.

2. Select vehicle type using the cursor keys.

3. Using the >> key, move from the vehicle type to the list of control units.

4. Select CDR24 with the cursor keys and press the >> .

5. In the menu CDR24, select Control unit replacement and press the >> .

6. Select Read codes and press >> .

7. On the screen of the PIWIS tester appears the message Coding read-out complete >> .

8. Switch off ignition and replace radio. → 912419 Removing and installing car radio "CD player" -

chapter on "Removing"→ 912419 Removing and installing car radio "CD player" - chapter on
"Installing"

9. Switch on ignition. After replacement of the radio, the data previously read out (see Item 7) is reloaded

under the menu Write in codes. >> .

10. PIWIS tester displays Coding write-in complete >> .

11. In the menu CDR24, select Required & Actual installed components list and press

>> .

12. Compare the Actual/Required listing.

13. Remove ignition key, close and lock vehicle, then unlock and switch on

ignition

14. Read out the fault memory again and erase as necessary.

15. Car radio is now taught.

Programming car radio

Programming the car radio

Note

The procedure described must be applied when a control unit has to be replaced and the tester function
Control unit replacement

 cannot be used.

1. Connect the PIWIS tester 9718 to the vehicle and start it. Switch on the ignition. >> Continue.

2. Select vehicle type using the cursor keys.

3. Using the >> key, move from the vehicle type to the list of control units.

4. Select CDR24 with the cursor keys and press the >> .

5. Select Coding and press the >> .

The following codings can be performed:

Diagnostic system: reading out fault memory and activating systems

Reading out and transferring car radio codes

3739

Note

When installing a new PCM/CDR in a vehicle, the PCM/CDR code specified in IPAS should be
present. Normally, the code is stored in the instrument cluster, and is read out from the PCM/CDR.

•

You can get the codes from IPAS or from your importer by specifying the vehicle identification
number.

•

During coding, there should be a guaranteed power supply for the PIWIS tester 9718. It is essential
to connect a battery charger with a current rating of at least 40 A to the vehicle battery.

•

The PIWIS tester 9718 instructions take precedence and in the event of a discrepancy these are the
instructions that must be followed. Deviations may occur with later software versions.

•

The procedure described here has been structured in general terms; different text or additions may
appear in the PIWIS tester 9718.

•

6. Select PCM code, enter and code with F8 .

7. Select Traffic broadcast loudspeaker boost and code with F8 .

8. Select GAL (NLB) and code with F8 .

9. Select Vehicle type vehicle coding and code with F8 .

Vehicle type vehicle coding

911 (997)

Boxster (987)

10. Select Vehicle version vehicle coding and code with F8 .

Vehicle version vehicle coding

Coupé

Cabriolet

Targa

11. Select Air conditioner and code with F8 .

Air conditioning

Without air conditioning

With air conditioning

12. Select Tuner parameters and code with F8 .

Tuner parameters

Diagnostic system: reading out fault memory and activating systems

Programming the car radio

3740
