Installation position

Diagnostic system: reading out fault memory and activating systems

Removing navigation unit

3721

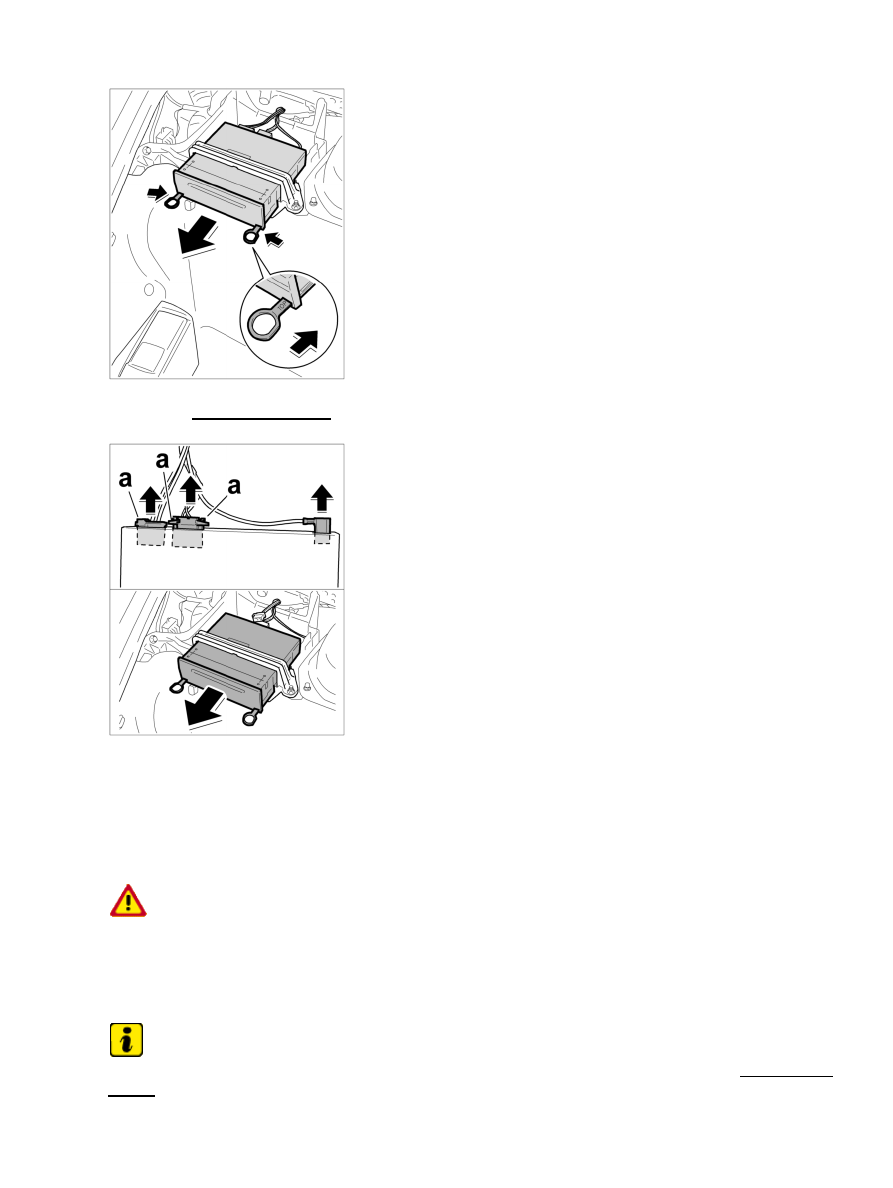

Pulling out navigation unit with removal tool

1. Push the removal tool 9570/1 -1- into the navigation unit and pull the navigation unit forward.

Unplugging electrical connector

2. Unlock the electric connectors on the navigation unit and pull out the navigation unit.

Removing the navigation unit (US version)

ATTENTION

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

Note

If the navigation unit has to be replaced, the coding must be read out prior to removal using the PIWIS tester
P 9718

Diagnostic system: reading out fault memory and activating systems

Removing the navigation unit (US version)

3722

Installation Location:

Installation location for navigation unit, C4 USA

Removing navigation unit

1. Remove navigation unit.

Removing retaining frame for navigation unit

Diagnostic system: reading out fault memory and activating systems

Removing the navigation unit (US version)

3723

2. Remove retaining frame for navigation unit.

necessary.

Installing navigation unit

Connecting plug connections

1. Insert the navigation unit into the retaining frame and plug in the electric plug connections until the

connectors engage securely.

2. Slide the navigation unit further into the retaining bracket until the navigation unit is felt to click into

place.

Installing the navigation unit (US version)

Diagnostic system: reading out fault memory and activating systems

Installing navigation unit

3724
