Porshe 911 (997). Manual - part 879

- Preliminary work
- General warning notes
- Removing gateway control unit
- Installing gateway control unit
- Subsequent work
- Coding gateway control unit

Tools

Designation

Type

Number

Explanation

PIWIS tester

special tool

9718

Preliminary work

Preliminary work for gateway control unit

Cover of driver's footwell: → 702219 Removing and installing cover - removing.  [997110 997111 997120
997121 997310 997311 997320 997321]→ 702219 21 Removing and installing cover - removing.  [997410
997411 997430 997431 997610 997611 997620 997621]
Remove relay carrier 1 → 978319 Removing and installing relay carrier 1 - chapter on "removing"
Remove vehicle electrical system control unit. → 971019 Removing and installing vehicle electrical system
control unit - chapter on "installing"

General warning notes

3673

General warnings for gateway control module

WARNING

Sudden voltage interruption of the power supply to the control module.

Destruction of the control module.

•

→ During programming, it is essential to guarantee the power supply for the Porsche System tester. It is

essential to connect a battery charger with a current rating of at least 40 A to the vehicle battery.

→ Prior to disconnecting the control module, switch off the ignition and remove the ignition key.

Removing gateway control unit

Removing gateway control unit

Note

The gateway control module is located under the radiator tank, accessible from inside the vehicle near to the
driver.

Installation Location:

Diagnostic system: reading out fault memory and activating systems

General warnings for gateway control module

3674

Installation location of gateway control unit

WARNING

Sudden voltage interruption of the power supply to the control module.

Destruction of the control module.

•

→ During programming, it is essential to guarantee the power supply for the Porsche System tester. It is

essential to connect a battery charger with a current rating of at least 40 A to the vehicle battery.

→ Prior to disconnecting the control module, switch off the ignition and remove the ignition key.

Removing gateway control unit

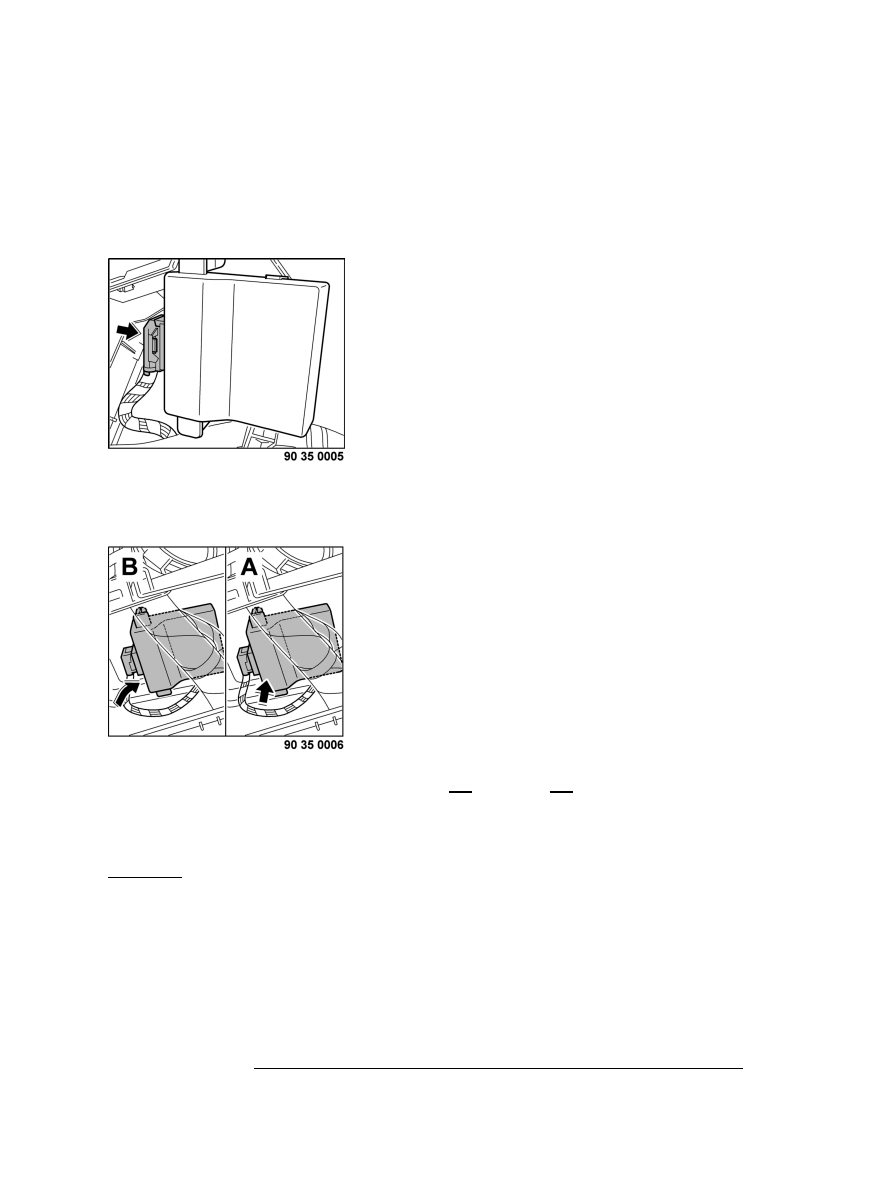

1. -A- Pull gateway control unit downwards on the plug side (unclip)

→  AW Removing and installing gateway control unit - general warnings

2. -B- Pull gateway control unit to the left out of the

holder.

Unlocking the electric connector

3. Release electric connector -A- and pull from the gateway control unit.

Diagnostic system: reading out fault memory and activating systems

Removing gateway control unit

3675

Installing gateway control unit

Installing gateway control module

Connecting electric plug

1. Push on electric plug until it is felt to engage on gateway control module.

Installing gateway control module

2. Push in gateway control module into the holder -A- and clip in -A- .

3. If a new gateway control module has been installed, it must be coded on the vehicle. →  C1 Removing and

installing gateway control module - coding

Subsequent work

Subsequent work for gateway control unit

Install relay carrier 1. → 978319 Removing and installing relay carrier 1 - chapter on "installing"

Diagnostic system: reading out fault memory and activating systems

 Installing gateway control unit
