Diagnostic system: reading out fault memory and activating systems

Subsequent work for blower regulator

3649

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Subsequent work for blower regulator

3650

- Preliminary work
- Removing pressure switch
- Installing pressure switch
- Subsequent work

Preliminary work

Preliminary work for pressure switch

→ 870317 Draining and filling in refrigerant - chapter on "draining"

Removing pressure switch

Removing pressure switch

The pressure switch is located in the radiator tank, right side in the direction of travel, under the cowl panel
cover.

Releasing and removing connector

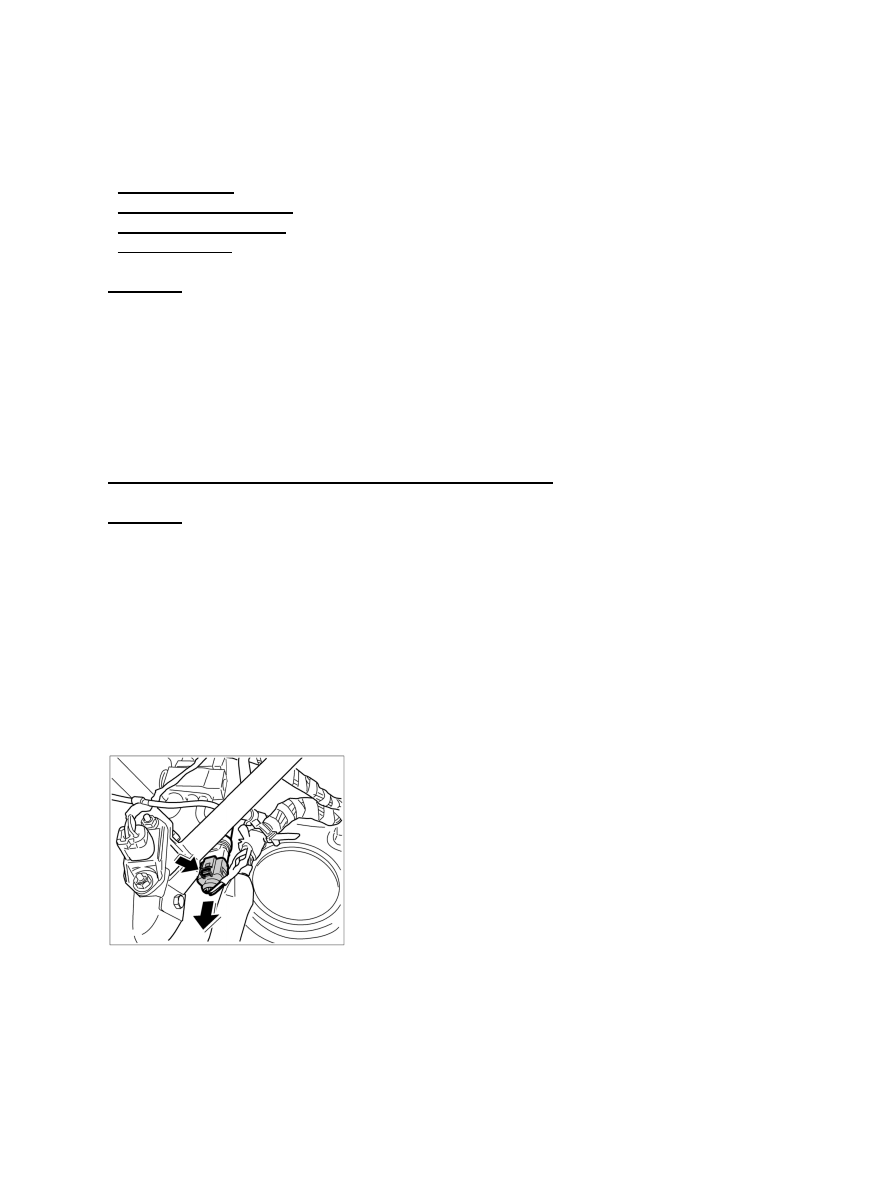

1. Press release on electrical connector and disconnect from pressure switch.

3651

Removing switch

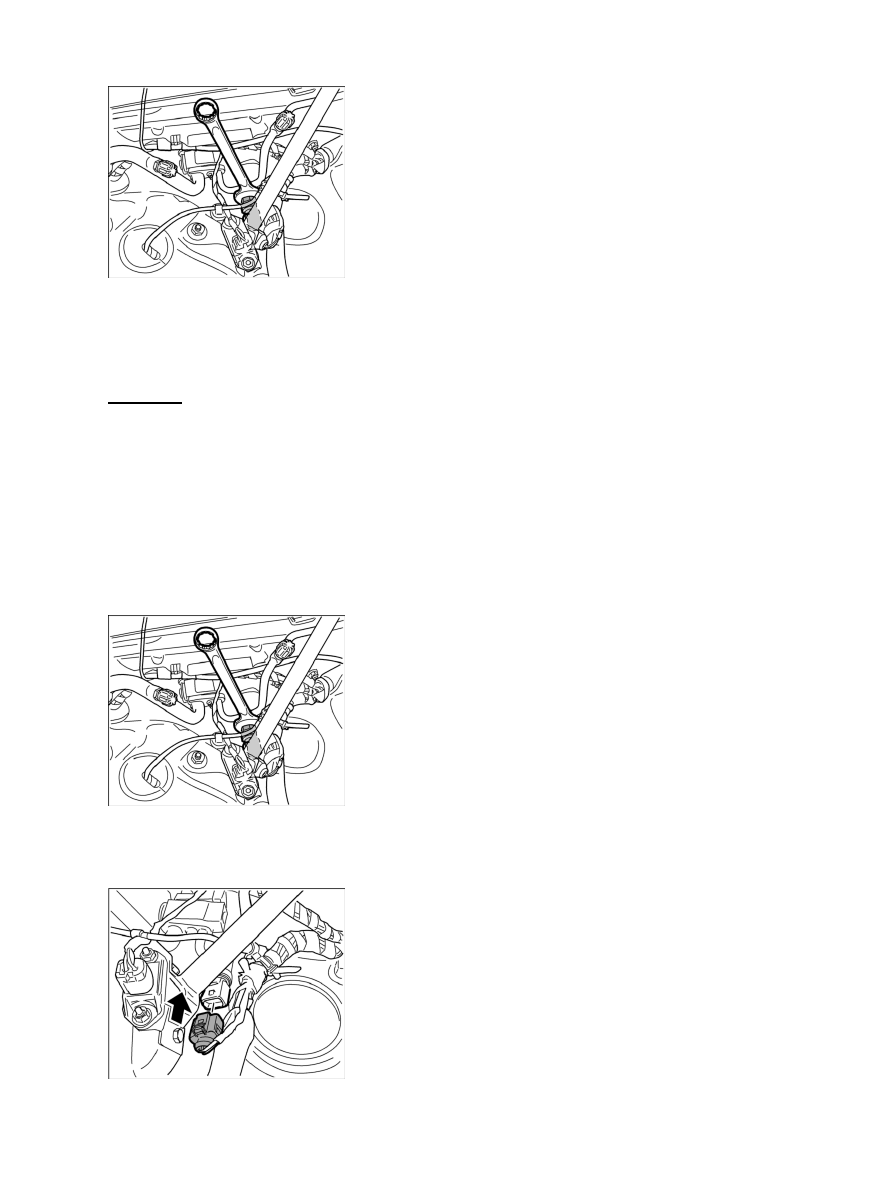

2. Place one open-ended wrench on the hexagon of the pressure switch and a second open-ended wrench on

the hexagon of the refrigerant line.

3. Unscrew pressure switch from refrigerant line and remove.

Installing pressure switch

Installing pressure switch

Replace the O-ring on the pressure switch and wet it with refrigerant oil.

Installing switch

1. Screw pressure switch onto refrigerant line and tighten with an open-ended wrench. Counter with a

second open-ended wrench. → Tightening torque: 3.5 ftlb.

Plugging in connector

Diagnostic system: reading out fault memory and activating systems

Removing pressure switch

3652
