3. Turn temperature sensor through 90° and pull it out of the heating/fresh-air unit.

Installing outside temperature sensor

Installing outside temperature sensor

1. Switch off ignition and remove ignition key.

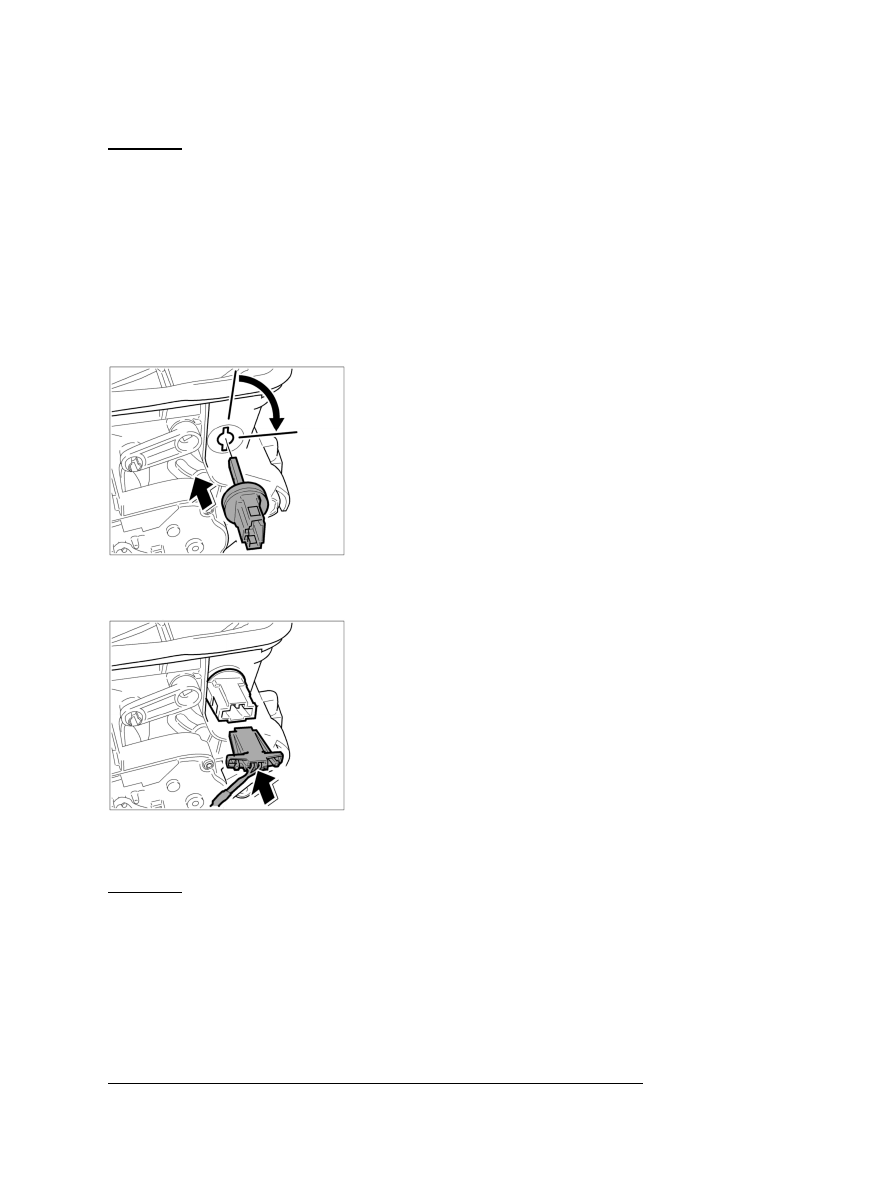

Installing temperature sensor

2. Insert temperature sensor into the heating/fresh air unit and turn through 90°.

Connecting electric plug

3. Push electrical connector into temperature sensor until it clicks into place.

Subsequent work

Subsequent work for outside temperature sensor

→ 851519 Removing and installing heating/fresh-air unit - chapter on "installing"

Diagnostic system: reading out fault memory and activating systems

 Installing outside temperature sensor
