Porshe 911 (997). Manual - part 860

87 43 19 Removing and installing
compressor-condenser line in area of engine - as of
MY 2005

- Preliminary work
- Removing compressor-condenser line
- Installing compressor-condenser line
- Subsequent work

Preliminary work

Preliminary work on compressor-condenser line

Drain refrigerant. → 870317 Draining and filling in refrigerant - chapter on "draining"
Remove drive belt . →  21 Removing and installing drive belt - removing.
Unscrew compressor from engine block. → 873419 Removing and installing compressor

Removing compressor-condenser line

Removing compressor-condenser line

Note

Close off all lines and connections using suitable plugs during removal.
Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if
necessary.

Installation Location:

Installation position

A

- Compressor-condenser line

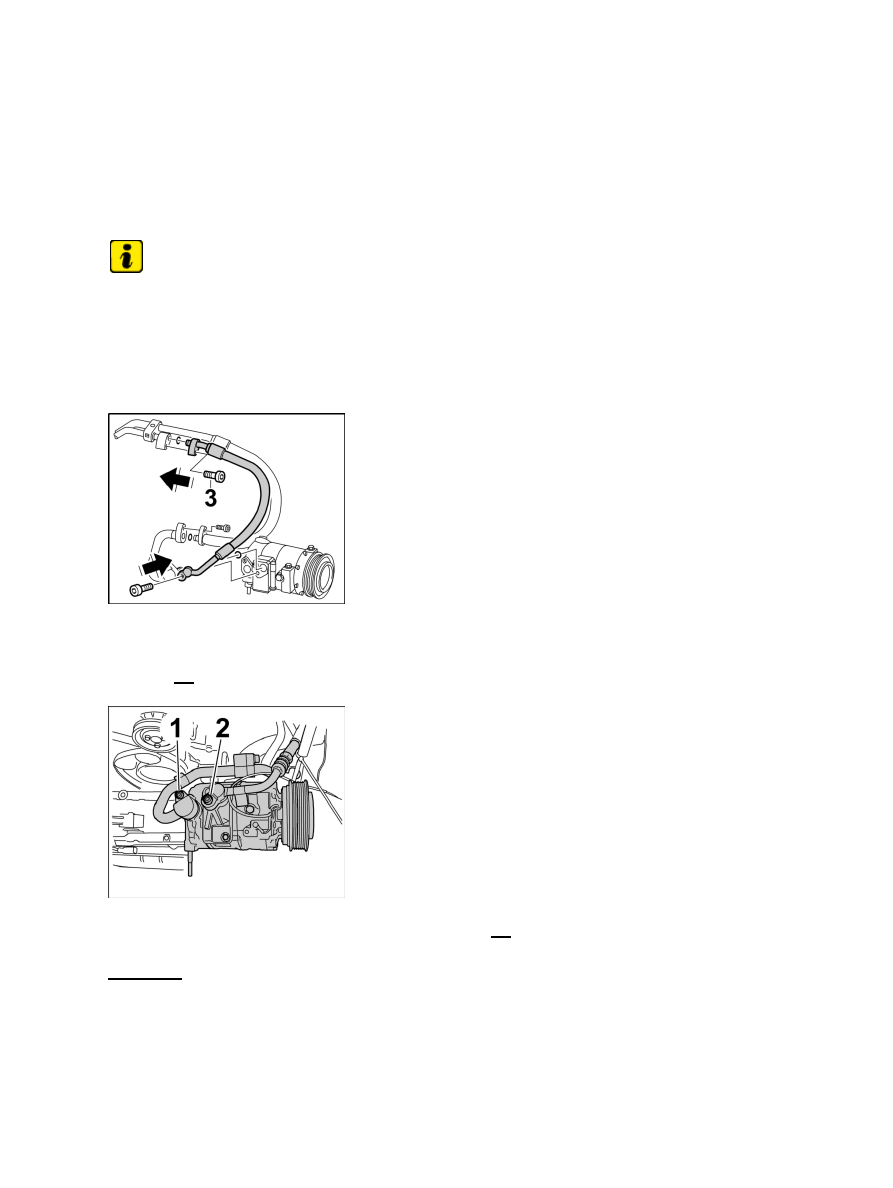

Unscrewing fastening screw

1. Unscrew the fastening screw -2- on the compressor.

Fastening screw at disconnection point

2. Unscrew the fastening screw -3- at the disconnection point ahead of the rubber mounting and remove the

line from the engine compartment.

Diagnostic system: reading out fault memory and activating systems

Removing compressor-condenser line

3598

Installing compressor-condenser line

Installing compressor-condenser line

Note

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if
necessary.
Wet the O-rings of the refrigerant lines with refrigerant oil.
Do not open the plugs for the lines and connections until shortly before installation.

Disconnection point in engine compartment

1. Carefully insert the line into the engine-compartment disconnection point and fasten with the fastening

screw -3- . → Tightening torque: 14 (10.5 ftlb.) Nm

Fastening screw

2. Push the line on and fasten it with the fastening screw -2- . → Tightening torque: 21 (16 ftlb.) Nm

Subsequent work

Diagnostic system: reading out fault memory and activating systems

 Installing compressor-condenser line

3599

Subsequent work on compressor-condenser line

Screw compressor to engine block. → 873419 Removing and installing compressor - chapter on "Installing"
Install drive belt. →  23 Removing and installing drive belt - installing.
Fill in refrigerant. → 870317 Draining and filling in refrigerant
