Porshe 911 (997). Manual - part 852





Overview

A

- Pressure plate

B

- Spacer

C

- Pulley

D

- Solenoid coil

E

- Seeger circlip ring for pulley

F

- Seeger circlip ring for solenoid coil

Loosen pressure plate mount

1. Use a commercially available strap wrench to securely hold the pressure plate -A- on the air-conditioning

compressor, and undo the fastening screw -1- .

Diagnostic system: reading out fault memory and activating systems

Removing the magnetic coupling

3566

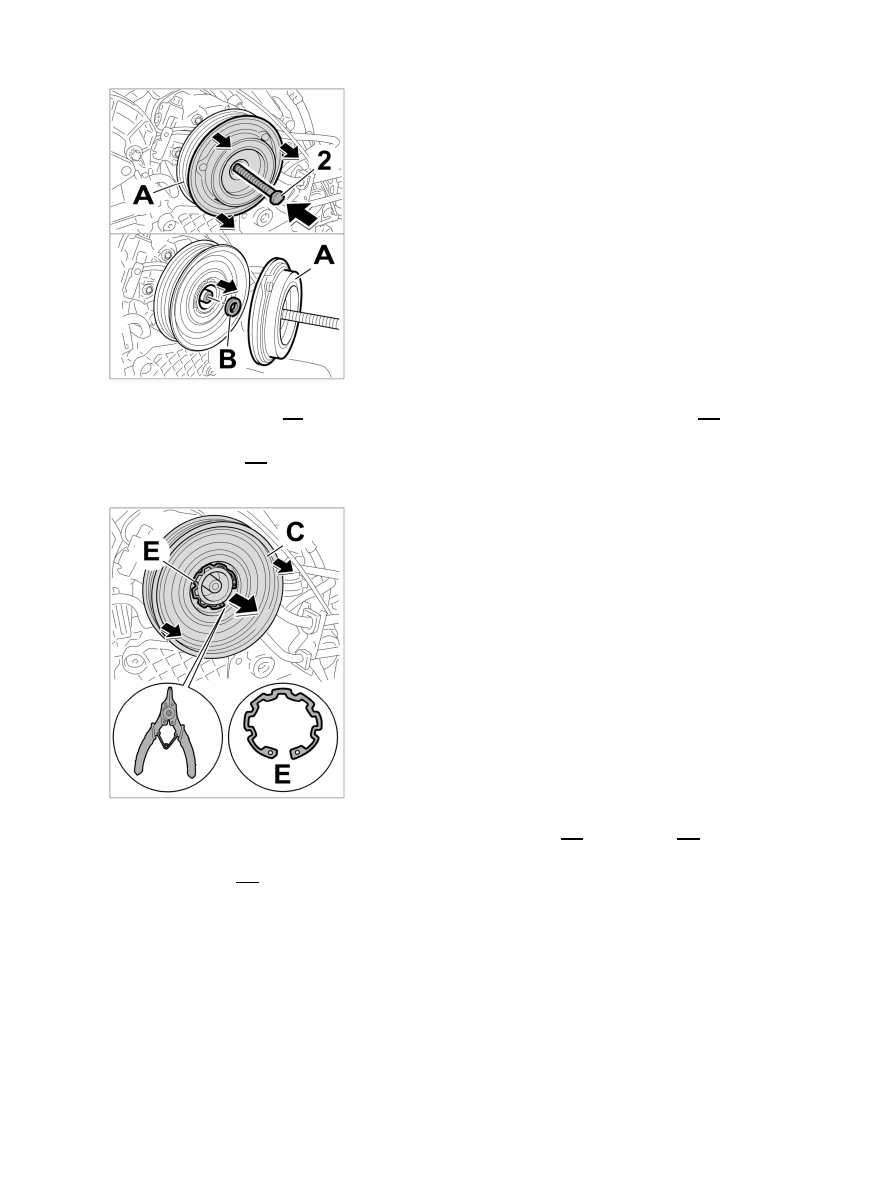

Removing pressure plate

2. Screw in an M8 screw -2- into the thread of the pressure plate until the pressure plate -A- can be removed

by hand.

3. Take off spacers -B- behind the pressure

plate.

Removing Seeger circlip ring for pulley

4. Use a Seeger circlip ring pliers to remove the Seeger circlip ring -E- on the pulley -C-

.

5. Remove pulley -C- on the compressor.

Diagnostic system: reading out fault memory and activating systems

Removing the magnetic coupling

3567

Screwing on electric line to compressor

6. Unscrew electric line of solenoid coil on the

compressor:

6.1. Remove the three fastening screws holding the air-conditioning

compressor -3- .

6.2. Remove the air-conditioning compressor and lift upwards, now the fastening screw -4- for the

solenoid coil line is accessible.

6.3. Unscrew the fastening screw -4- for the solenoid coil line.

Disconnecting compressor plug connection

7. Take out the electric connector -2- for the compressor from between the intake pipes and pull apart.

Diagnostic system: reading out fault memory and activating systems

Removing the magnetic coupling

3568
