Porshe 911 (997). Manual - part 849





Unscrewing fastening screws

2. First unscrew the two accessible fastening screws -1- , then shift the servo motor and unscrew the third

fastening screw -1- .

Releasing the electric connector

3. Release and unplug electric connector -a- .

Disengaging actuating lever

4. Turn the servo motor out until the actuating lever -A- can be

disengaged.

5. Remove servo motor.

Diagnostic system: reading out fault memory and activating systems

Removing servo motor for temperature mixing flap

3553

Installing servo motor for temperature mixing flap

Installing servo motor for temperature mixing flap

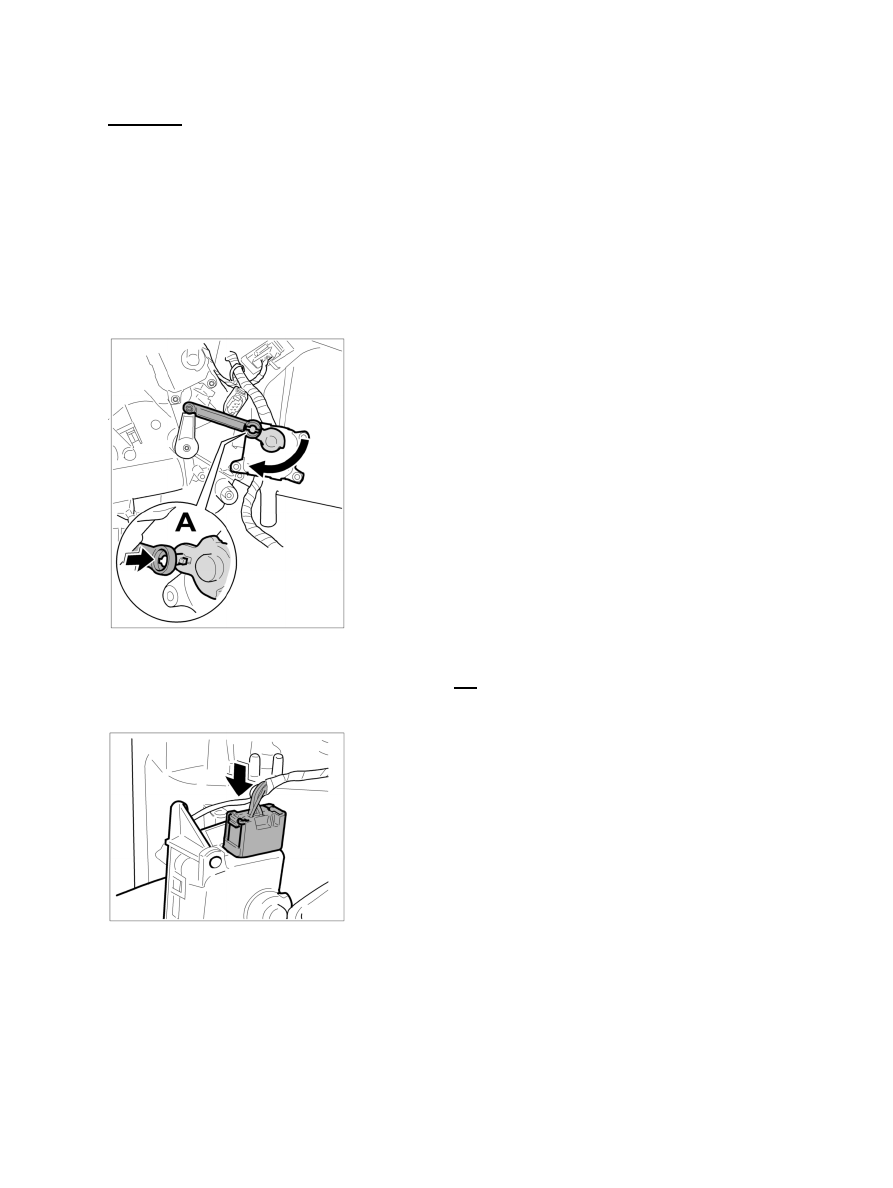

Engaging actuating lever on servo motor

1. Position servo motor and engage actuating lever -A- on the servo

motor.

Connecting electric plugs

2. Connect electric connector to servo motor until the connector is felt to

engage.

Diagnostic system: reading out fault memory and activating systems

 Installing servo motor for temperature mixing flap

3554

Securing servo motor

3. Position servo motor on heater/air-conditioning unit and tighten with the three fastening

screws -1- . → Tightening torque: 1.2 (1.0 ftlb.) Nm +/-0.5 (0.5 ftlb.) Nm

3.1. First screw in one fastening screw.

3.2. Turn the servo motor and screw in the remaining two fastening

screws.

4. Switch on ignition and check function of servo motor by adjusting the air conditioning control.

Subsequent work

Subsequent work - servo motor for temperature mixing valve

1. Install front footwell outlet vent. → 805519 Removing and installing front footwell outlet vent -

chapter on "Installing"

2. Install left and right covers of console. → 681419 Removing and installing centre console cover -

chapter on "Installing"

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Diagnostic system: reading out fault memory and activating systems

Installing servo motor for temperature mixing flap

3555

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

Diagnostic system: reading out fault memory and activating systems

Subsequent work - servo motor for temperature mixing valve

3556
