Porshe 911 (997). Manual - part 817

Removing cover for backrest

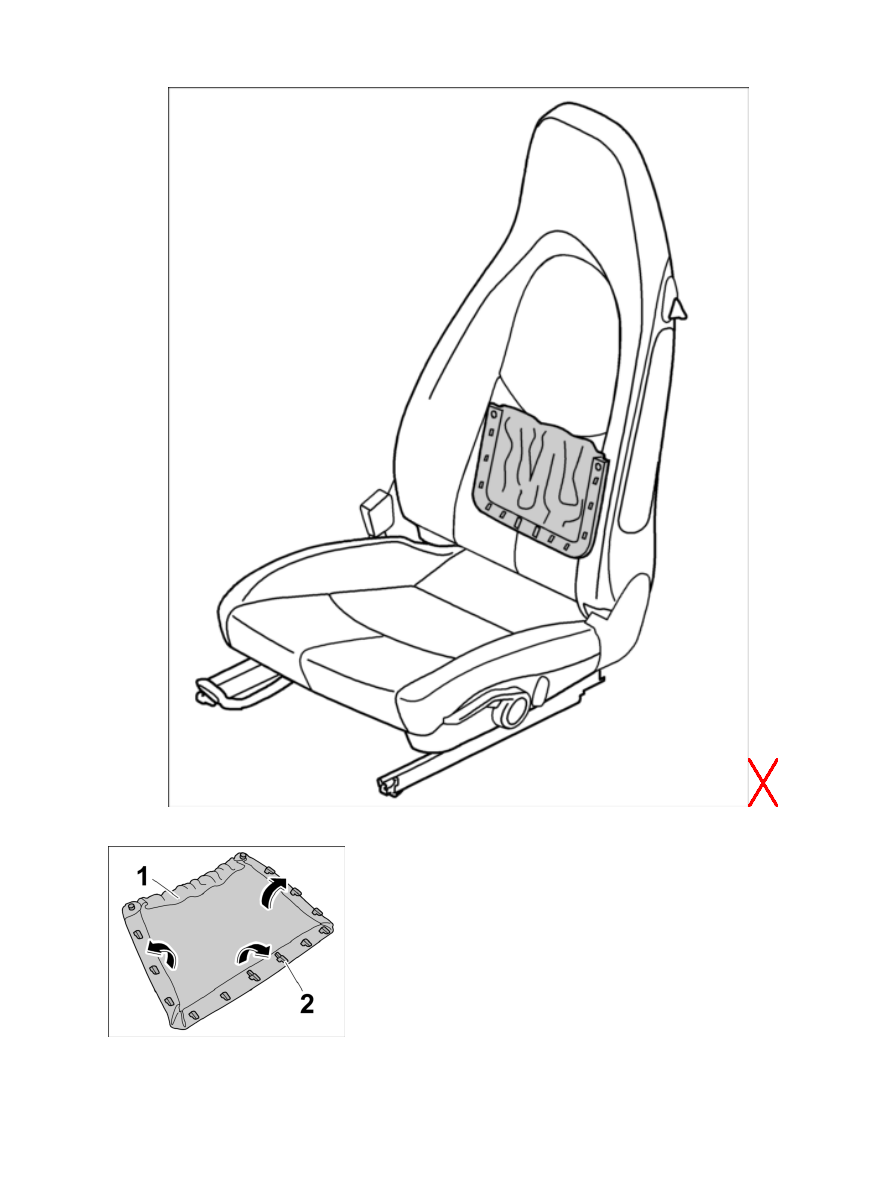

2. Insert your hand into the top of the backrest cover -1- and disengage it by pulling it up out of the backrest

frame -2- ( -arrow A- ). Then press cover for backrest together slightly in the middle -arrows B- and pull
forwards and out.

Disconnecting plug connection

Note

Only for vehicles with heated seats.

Note

Only for vehicles with heated seats.

3. Disconnect electric plug connection for backrest seat heating -1- .

Removing backrest pocket

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing backrest pocket

3425

Installation position of backrest pocket

Diagnostic system: reading out fault memory and activating systems

Removing backrest pocket

3426

Removing backrest pocket

1. Unscrew fastening screws -1- with washers -2- on the inside.

2. Pull backrest pocket -3- out slightly at the top and disengage upwards.

Replacing cover for backrest pocket

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Replacing cover for backrest pocket

3427

Installation position of backrest pocket

Removing cover

1. Remove cover for backrest pocket.

Diagnostic system: reading out fault memory and activating systems

Replacing cover for backrest pocket

3428
