Porshe 911 (997). Manual - part 815

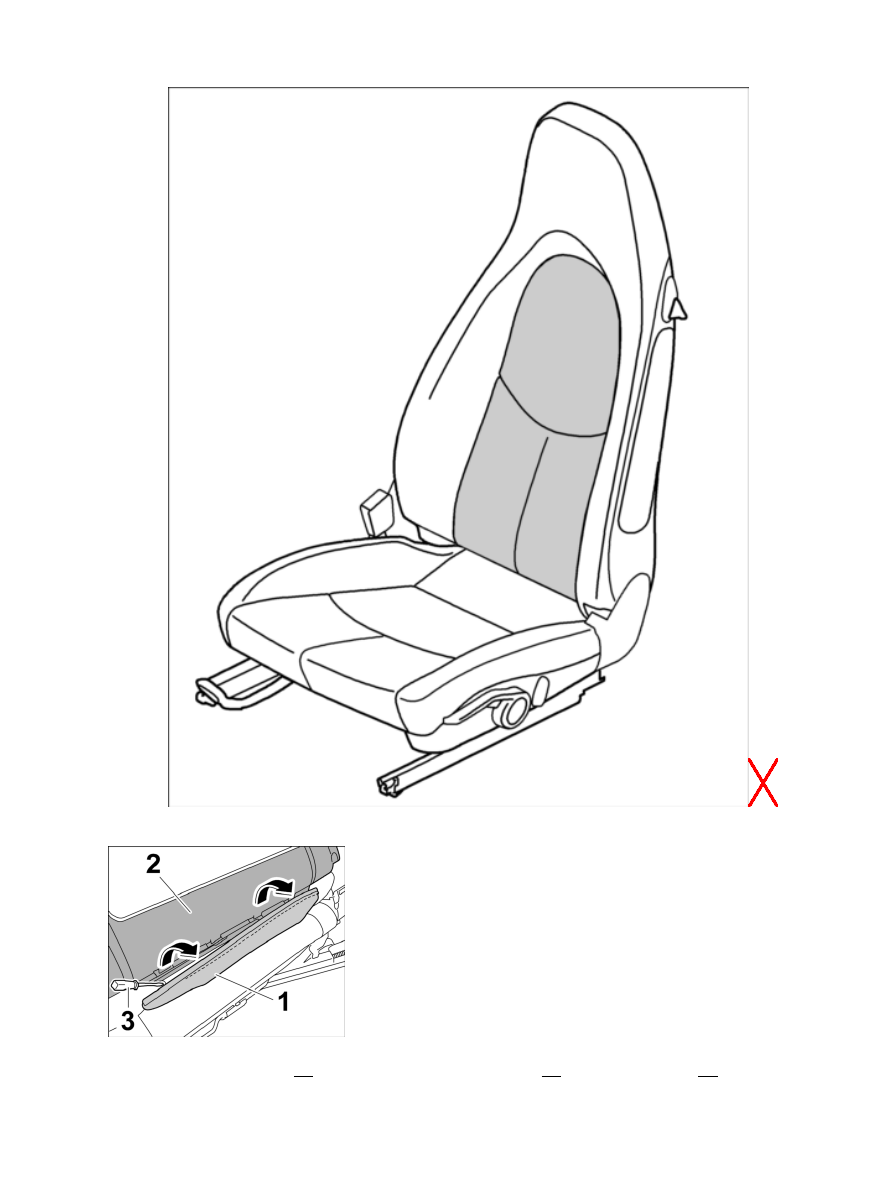

Installation position of cover for front middle backrest

Loosening cover

1. Press cover for backrest -1- carefully out of the backrest shell -2- using a screwdriver -3- .

Diagnostic system: reading out fault memory and activating systems

Removing cover for front middle backrest

3417

Removing cover for backrest

2. Insert your hand into the top of the backrest cover -1- and disengage it by pulling it up out of the backrest

frame -2- ( -arrow A- ). Then press cover for backrest together slightly in the middle -arrows B- and pull
forwards and out.

Disconnecting plug connection

Note

Only for vehicles with heated seats.

Note

Only for vehicles with heated seats.

3. Disconnect electric plug connection for backrest seat heating -1- .

Installing cover for front middle backrest

Diagnostic system: reading out fault memory and activating systems

 Installing cover for front middle backrest

3418

Installing cover for front middle backrest

Installation Location:

Installation position of cover for front middle backrest

Diagnostic system: reading out fault memory and activating systems

Installing cover for front middle backrest

3419

Connecting plug connection

Note

Only for vehicles with heated seats.

Note

Only for vehicles with heated seats.

1. Connect electric plug connection for backrest seat heating -1- .

Installing cover for backrest

2. Engage cover for backrest -1- in the backrest frame -2- at the top -arrow A- .

3. Press in cover for backrest -1- in the middle -arrows B- until the locking tabs engage -inset-

.

Diagnostic system: reading out fault memory and activating systems

Installing cover for front middle backrest

3420
