9. Install side airbag. → 696319 Removing and installing side airbag - section on "Installing"

Fastening cover piping

10. Engage cover piping -1- right and left into backrest frame

-2-

 .

Fastening cover for backrest at bottom

11. Press cover for backrest -1- into the cushion carrier -2- lower left and right using a plastic wedge -3-

.

Installing collar

12. Position collar -2- on the backrest cover -1- and press in until it clicks into

place.

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest

3409

Installing coat hook

13. Position coat hook -1- and screw down with the fastening screw -2- .

Installing cover for backrest

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest

3410

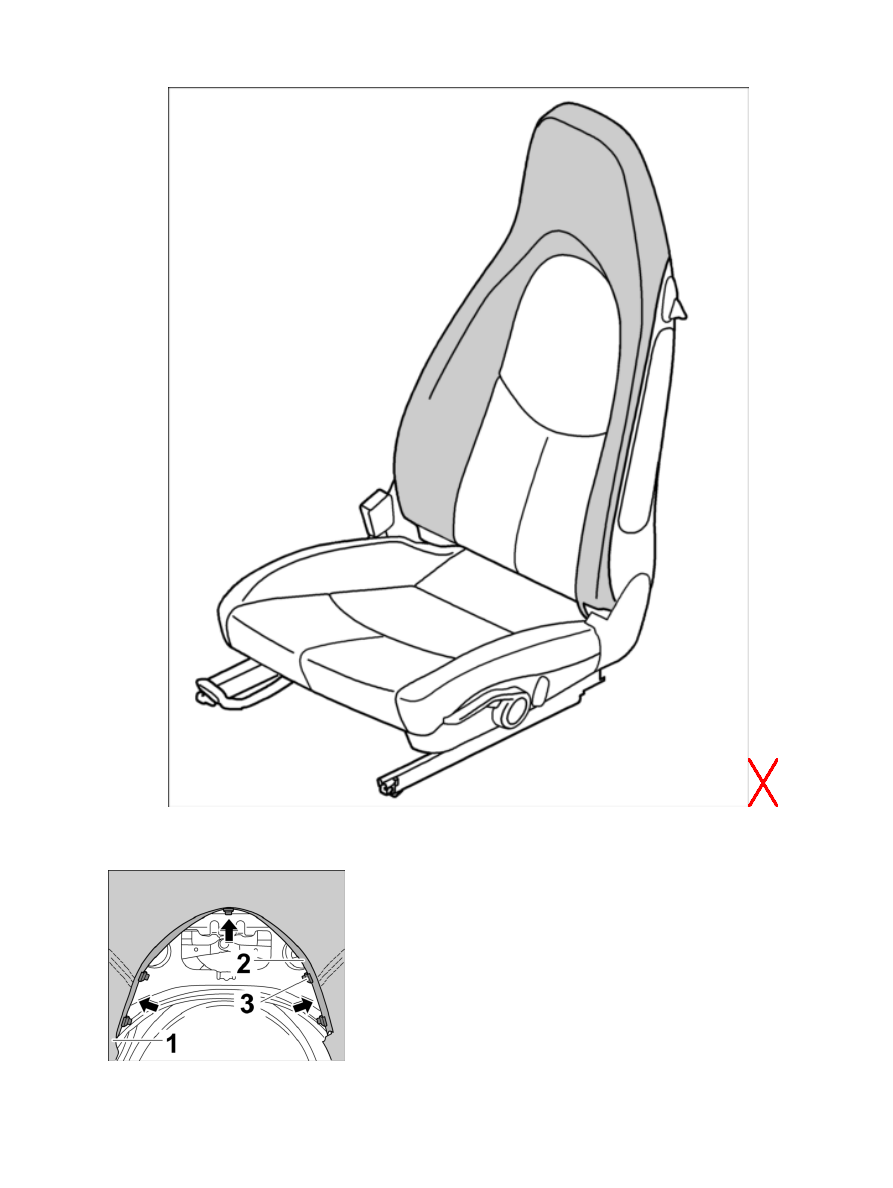

Installation position of cover for front backrest

1. Fit cover for backrest and align with contour of padding.

Fastening cover for backrest

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest

3411

2. Check fastening clips -3- , and replace if necessary.

3. Press plastic strip -2- on cover for backrest -1- into the fixing clips -3-

.

Fastening cover piping

4. Engage cover piping -1- right and left into backrest frame

-2-

 .

Fastening cover for backrest at sides

5. Press connection of backrest cover -1- sideways into the backrest frame -2- with a plastic wedge -3- .

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest
