Disengaging cover for backrest

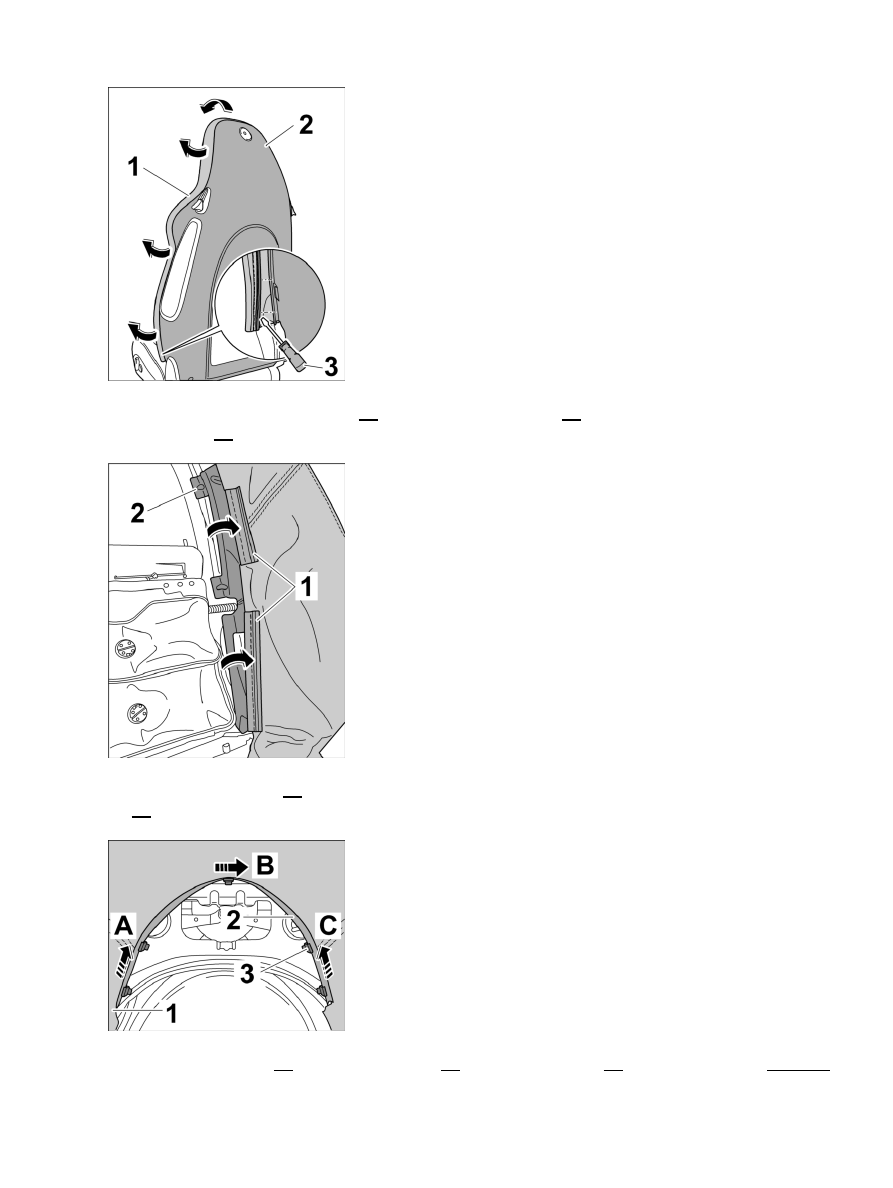

2. Slightly loosen cover for backrest -1- at outside of backrest shell -2- , starting from the bottom with a

screwdriver -3- , and pull out all around by hand.

Loosening cover piping

3. Press out cover piping -1- right and left from backrest frame

-2-

 .

Loosening cover for backrest

4. Push out plastic strip -2- on cover for backrest -1- from the fixing clips -3- in direction of arrow -A, B, C-

.

Diagnostic system: reading out fault memory and activating systems

Removing cover for front backrest

3405

5. Remove cover for backrest -1- .

Installing cover for front backrest

Installing cover for backrest

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing cover for front backrest

3406

Installation position of cover for front backrest

Checking clamps

1. Check clamps -1- , and replace if necessary.

Installing cover for backrest

2. Pull on cover for backrest -1- and align with contour of padding.

Fastening cover for backrest

3. Check fastening clip -3- , and replace if necessary.

4. Press plastic strip -2- on cover for backrest -1- into the fixing clips -3-

.

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest

3407

Folding cover for backrest at sides

5. Fold cover piping -1- at the sides in direction of

arrow.

Fastening cover at rear of backrest

6. Press connection of backrest cover -1- at the rear into the cushion carrier -2- -Arrows A- and tap gently

into place (plastic hammer).

7. Engage connection of backrest cover -1- at the bottom into the cushion carrier -Arrows B- .

Fastening connection at frame for side airbag

8. Press connection of backrest cover -1- into the side airbag frame -2- with a plastic wedge -3- .

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest

3408
