Installation position of cover for front backrest

Disengaging cover for backrest

1. Press out cover for backrest -1- from the backrest shell -2- lower left and right using a screwdriver -3- .

Diagnostic system: reading out fault memory and activating systems

Removing cover for front backrest

3385

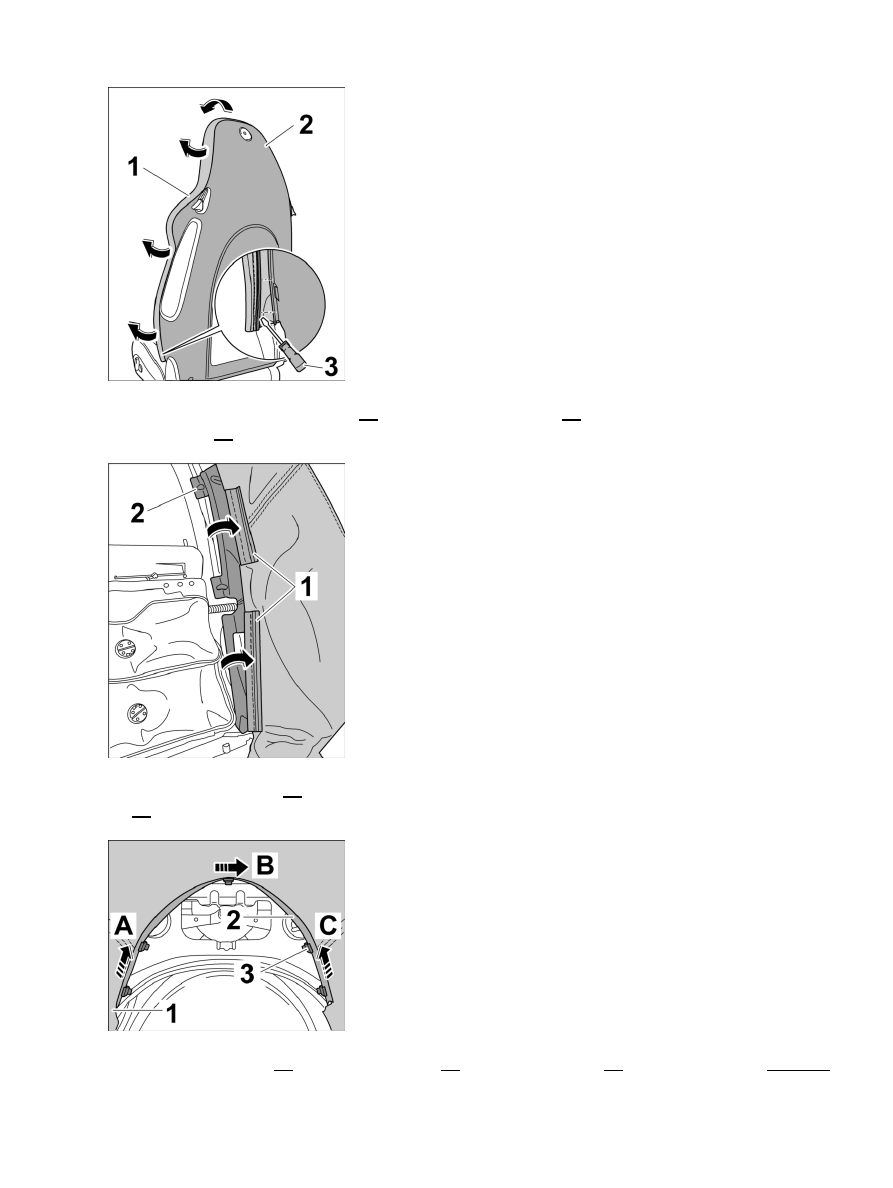

Disengaging cover for backrest

2. Slightly loosen cover for backrest -1- at outside of backrest shell -2- , starting from the bottom with a

screwdriver -3- , and pull out all around by hand.

Loosening cover piping

3. Press out cover piping -1- right and left from backrest frame

-2-

 .

Loosening cover for backrest

4. Push out plastic strip -2- on cover for backrest -1- from the fixing clips -3- in direction of arrow -A, B, C-

.

Diagnostic system: reading out fault memory and activating systems

Removing cover for front backrest

3386

5. Remove cover for backrest -1- .

Installing cover for front backrest

Installing cover for backrest

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing cover for front backrest

3387

Installation position of cover for front backrest

Checking clamps

1. Check clamps -1- , and replace if necessary.

Installing cover for backrest

2. Pull on cover for backrest -1- and align with contour of padding.

Fastening cover for backrest

3. Check fastening clip -3- , and replace if necessary.

4. Press plastic strip -2- on cover for backrest -1- into the fixing clips -3-

.

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest
