Diagnostic system: reading out fault memory and activating systems

Subsequent work

3377

- Preliminary work
- Removing cover for front backrest
- Installing cover for front backrest
- Subsequent work

Preliminary work

Preliminary work

Note

The lumbar support must be deflated before removing the front seat.

1. Remove front seat. → 720119 Removing and installing front seat - chapter on

"Removing" [997110 997120 997410 997430]→ 720119 Removing and installing front seat -
chapter on "Removing" [997111 997121 997411 997431]

Front seat on assembly fixture

2. Position front seat on assembly fixture.

3. Remove cover for front centre backrest. → 742019 Removing and installing cover for front centre backrest

- section on "Removing"

4. Remove cover for backrest. → 722619 Removing and installing cover for backrest - section on

"Removing"

5.

3378

Remove control button for backrest release at right and left. → 723119 Removing and installing control
button for backrest release - section on "Removing"

Preliminary work

Note

The air cushions and lumbar support must be deflated before removing the front seat.

1. Remove front seat. → 720119 Removing and installing front seat - chapter on

"Removing" [997110 997120 997410 997430]→ 720119 Removing and installing front seat -
chapter on "Removing" [997111 997121 997411 997431]

Front seat on assembly fixture

2. Position front seat on assembly fixture.

3. Remove cover for front centre backrest. → 742019 Removing and installing cover for front centre backrest

- section on "Removing"

Removing cover for front backrest

Removing cover for front backrest

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Preliminary work

3379

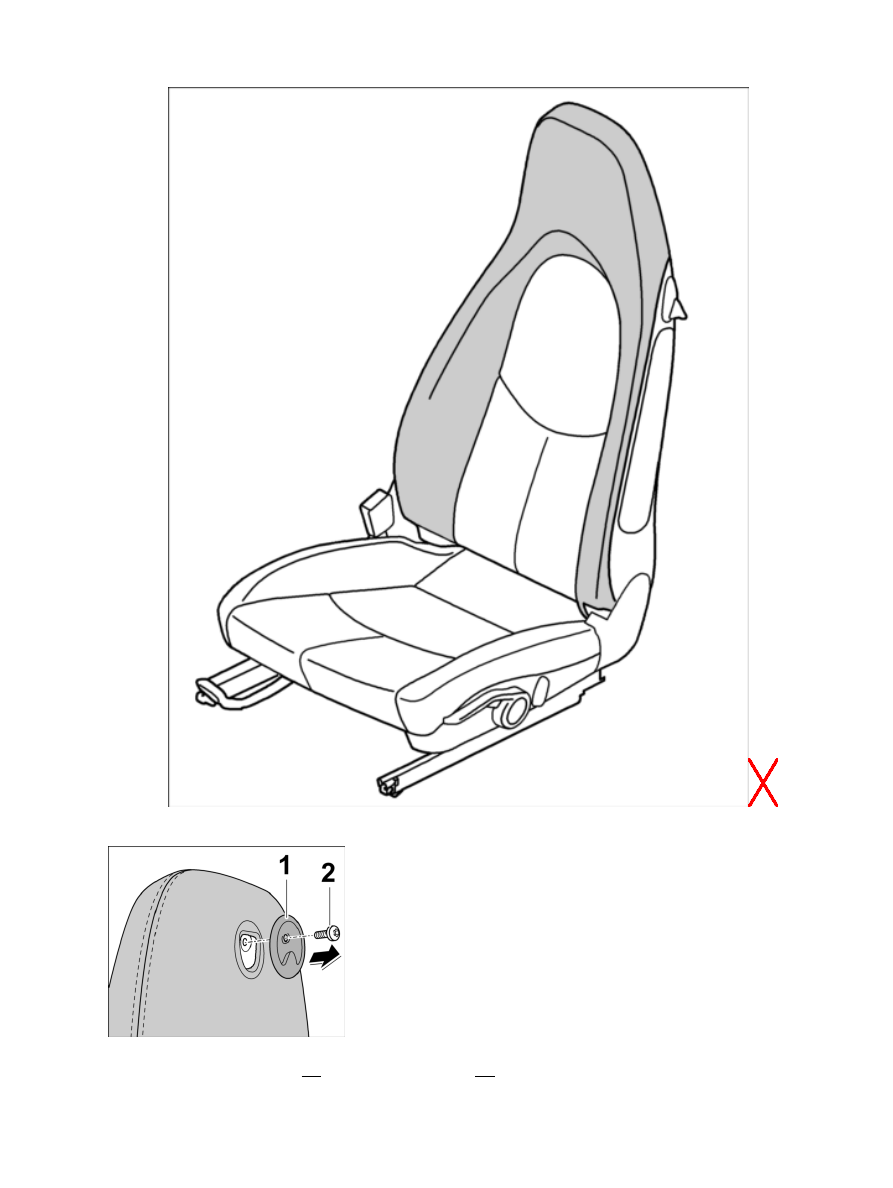

Installation position of cover for front backrest

Removing coat hook

1. Unscrew fastening screw -2- and remove coat hook -1- .

Diagnostic system: reading out fault memory and activating systems

Removing cover for front backrest

3380
