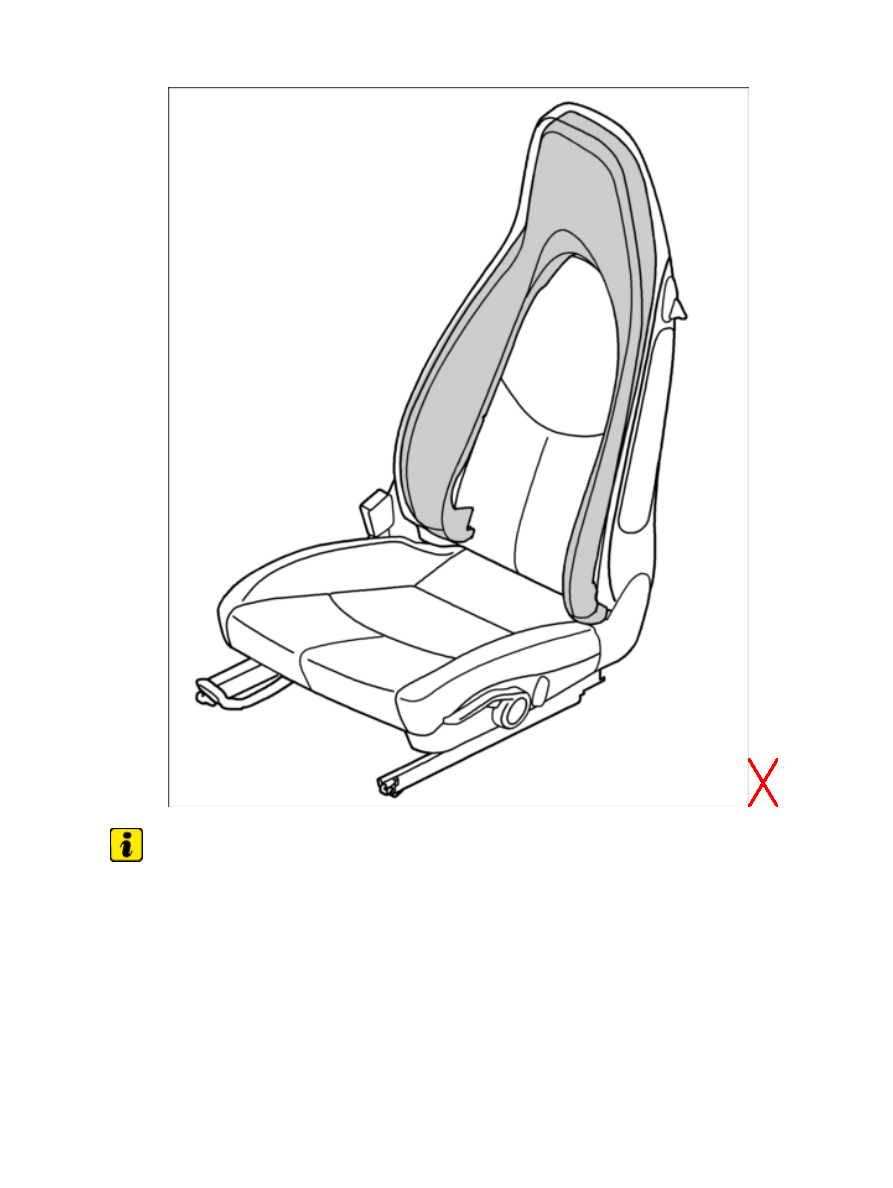

Installation position of padding

Note

Only for vehicles with heated seats.

Diagnostic system: reading out fault memory and activating systems

Releasing wire harness for backrest seat heating

3357

Releasing wire harness on backrest frame

1. Release wire harness on backrest

frame.

1.1. Unclip fixing clip -1- .

1.2. Cut tie-wrap -2- .

Releasing wire harness on seat frame

2. Release wire harness on seat frame.

2.1. Cut tie-wrap -1- and disengage wire harness -2- ( -arrow A- ).

2.2. Disconnect electric plug connection -3- for backrest seat heating -arrows B- .

Pulling out wire harness

Note

Make sure not to trap or damage the wire harness when pulling it through.

Diagnostic system: reading out fault memory and activating systems

Releasing wire harness for backrest seat heating

3358

3. Pull wire harness out through the seat and backrest

frame.

Removing padding for front backrest

Installation Location:

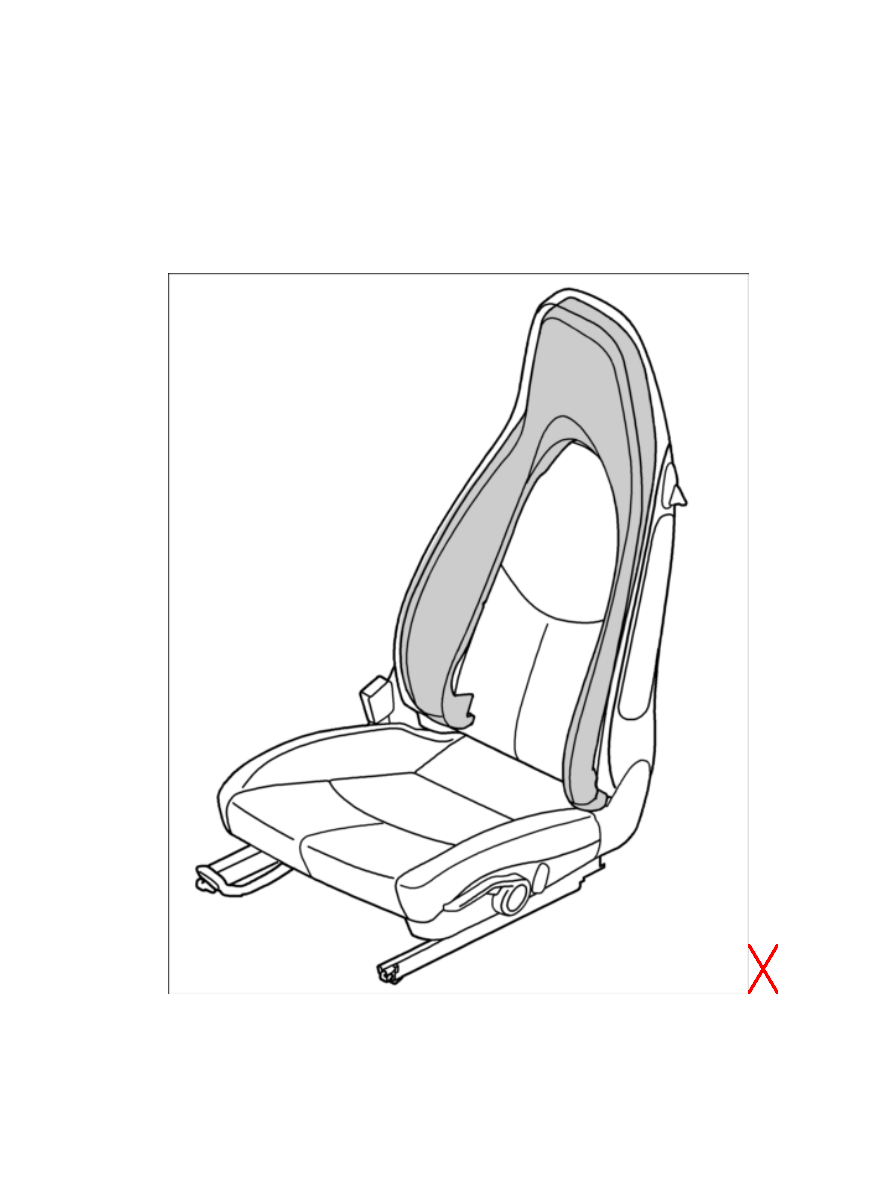

Installation position of padding

Diagnostic system: reading out fault memory and activating systems

Removing padding for front backrest

3359

Removing padding

1. Loosen padding -1- carefully by hand and remove it from the cushion carrier

-2-

 .

Removing residual adhesive

2. Remove residual adhesive -1- and clean sealing surface of backrest frame -2- with cleaning

agent.

Removing padding for front backrest

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing padding for front backrest

3360
