Porshe 911 (997). Manual - part 794





Releasing wire harness on seat frame

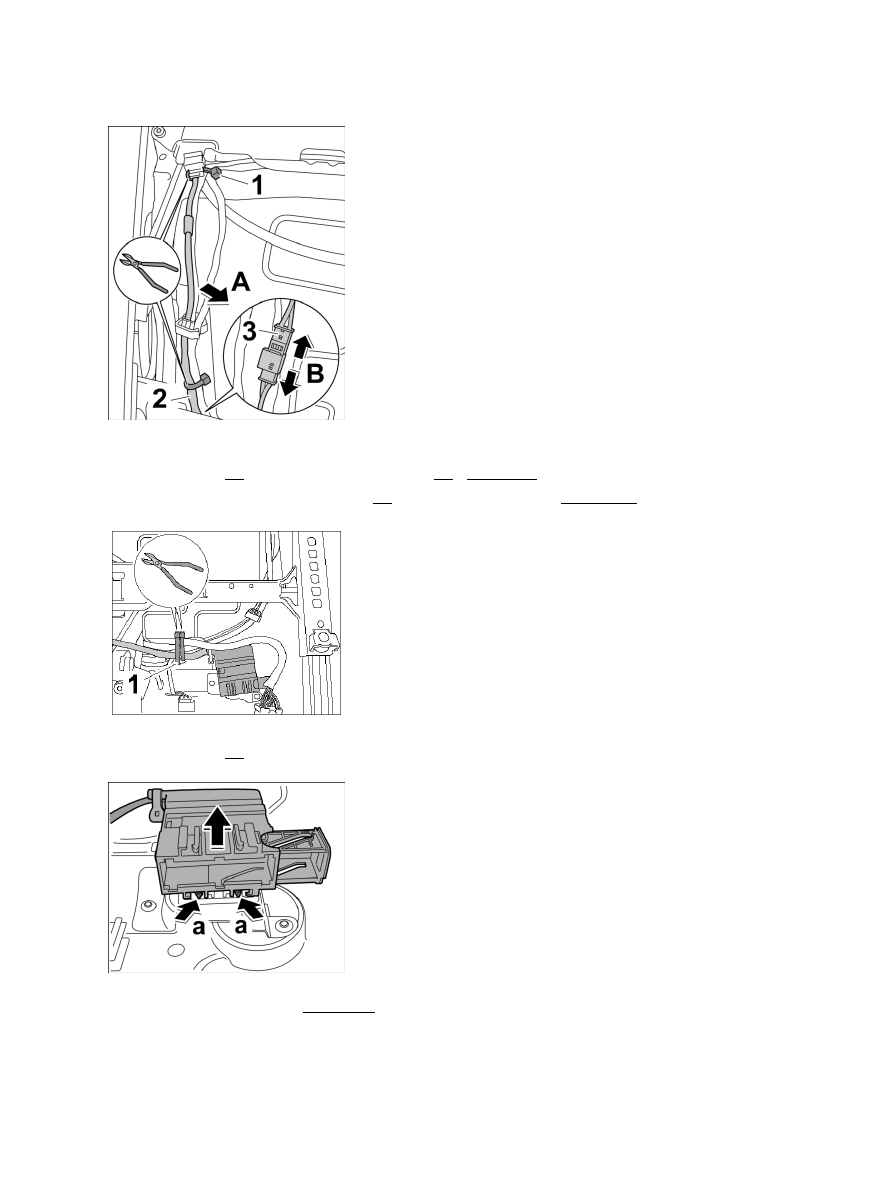

1. Cut tie-wraps -1- and disengage wire harness -2- ( -arrow A- ).

2. Disconnect electric plug connection -3- for backrest seat heating -arrows B- .

Cutting tie-wraps

3. Cut tie-wraps -1-

Pulling off connector socket

4. Release connector socket -arrows a- and pull out of holder.

Diagnostic system: reading out fault memory and activating systems

Disconnecting wire harness for heated seats

3333

Disassembling connector socket

5. Remove tie-wraps -2- on connector socket -1- .

6. Release connector socket -1- ( -arrows a- ) and remove the three individual connectors -3- .

Pulling out wire harness

Note

Make sure not to trap or damage the wire harness when pulling it through.

7. Pull wire harness out through the seat

frame.

Removing padding for seat

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing padding for seat

3334

Installation position of padding for seat

Diagnostic system: reading out fault memory and activating systems

Removing padding for seat

3335

Removing padding

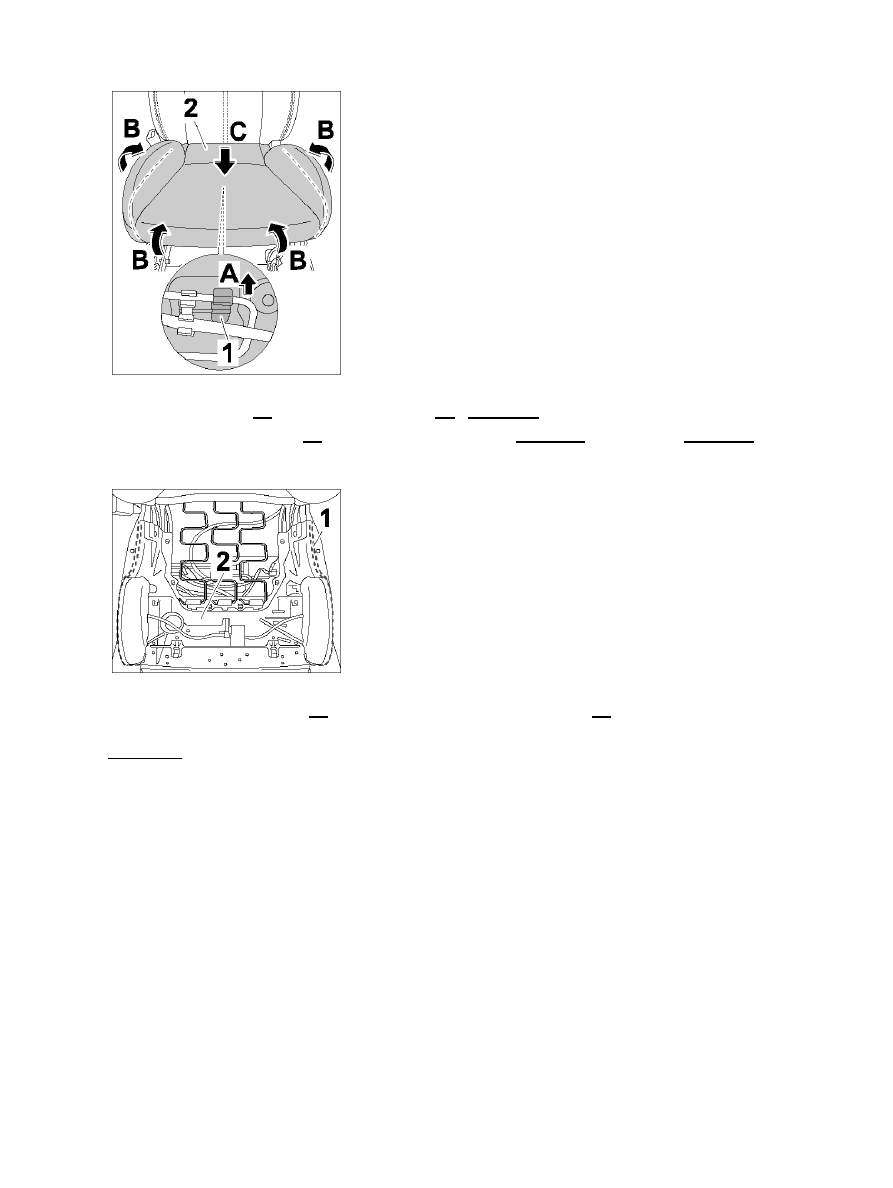

1. Unclip fixing clip -1- underneath the padding -2- ( -arrow A- ).

2. Carefully detach padding -2- by hand from the seat frame -arrow B- and remove it -arrow C-

.

Removing residual adhesive

3. Remove residual adhesive -1- and clean sealing surface of seat frame -2- with cleaning agent.

Installing padding for front seat

Installing padding for seat

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing padding for front seat

3336
