- Preliminary work
- Removing motor for seat adjustment
- Installing motor for seat adjustment
- Subsequent work

Preliminary work

Preliminary work

Remove front seat. → 720119 Removing and installing front seat - section on "Removing"  [997110 997120
997310 997320 997410 997430 997610 997620]→ 720119 Removing and installing front seat - section on
"Removing"  [997111 997121 997311 997321 997411 997431 997611 997621]

Removing motor for seat adjustment

Removing motor for seat adjustment

Installation Location:

3293

Installation position of motor for seat adjustment

Unclipping sleeve of shaft of seat adjustment motor

1. Unclip sleeve of long drive shaft -2- of seat adjustment motor -1- at the

support.

Diagnostic system: reading out fault memory and activating systems

Removing motor for seat adjustment

3294

Pressing motor for seat adjustment out of support

2. Press motor for seat adjustment -1- out of the support -2- at the boot -arrow A- .

3. Pull motor for seat adjustment -1- off the short drive shaft -arrow B- .

4. Pull motor for seat adjustment -1- forward under the support -2- ( -arrow C- ) and pull off

connector -3- ( -arrow D- ).

Pulling motor for seat adjustment off the drive shaft

5. Pull motor for seat adjustment -1- and sleeve off the long drive shaft -2- ( -arrow A-

).

6. Pull the long drive shaft -2- out of the gear mount -arrow B- and check for damage.

Removing drive shaft

7. Pull the short drive shaft -1- out of the gear mount -2- and check for damage.

Diagnostic system: reading out fault memory and activating systems

Removing motor for seat adjustment

3295

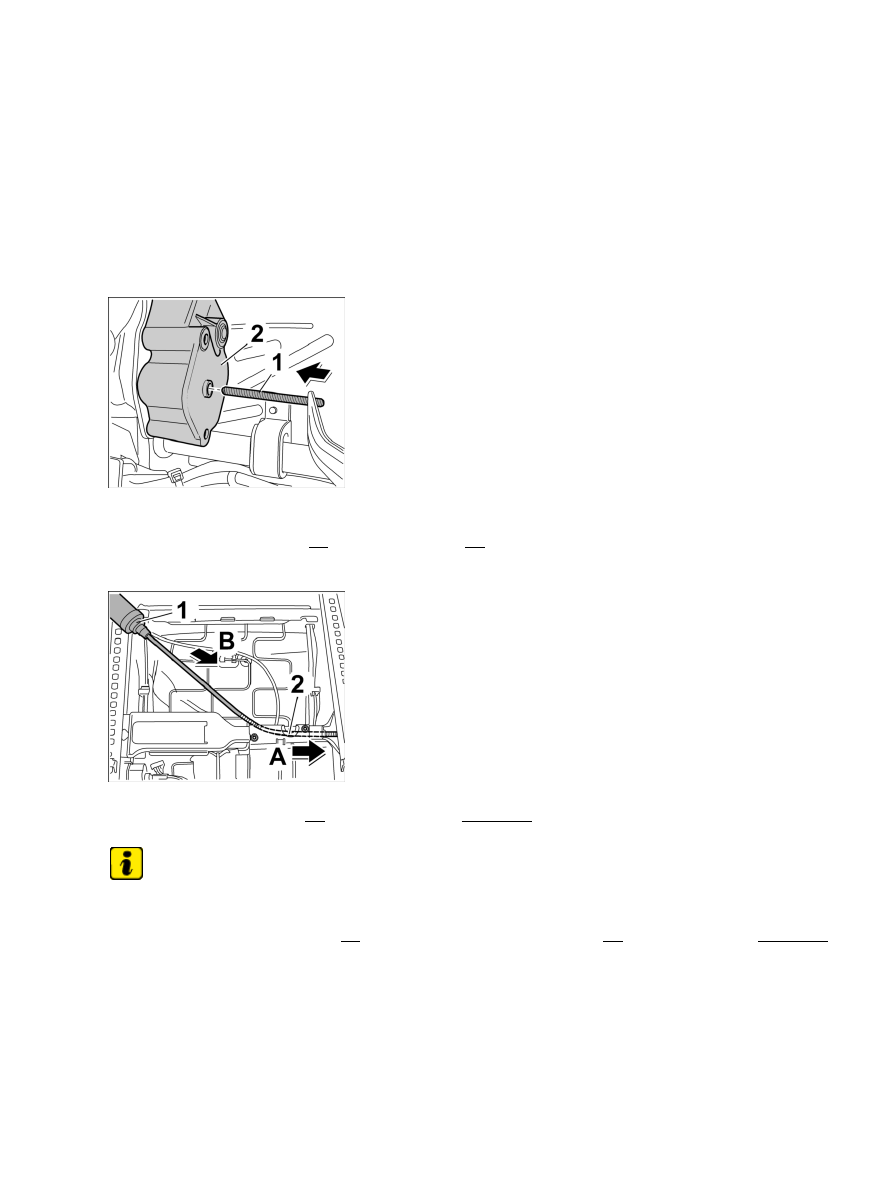

Installing motor for seat adjustment

Installing motor for seat adjustment

Installing drive shaft

1. Insert the short drive shaft -1- into the gear mount -2- by twisting

slightly.

Pushing motor for seat adjustment onto the drive shaft

2. Insert the long drive shaft -2- into the gear mount -arrow A- by twisting

slightly.

Note

When installing the motor for seat adjustment, make sure the two seat rails are in the same position.

3. Push motor for seat adjustment -1- and sleeve onto the long drive shaft -2- by twisting slightly -arrow A-

.

Diagnostic system: reading out fault memory and activating systems

 Installing motor for seat adjustment
