3. Press locking tab on fixing clip -3- outwards slightly and press fixing clip -3- down and out with a plastic

hammer -arrow C- .

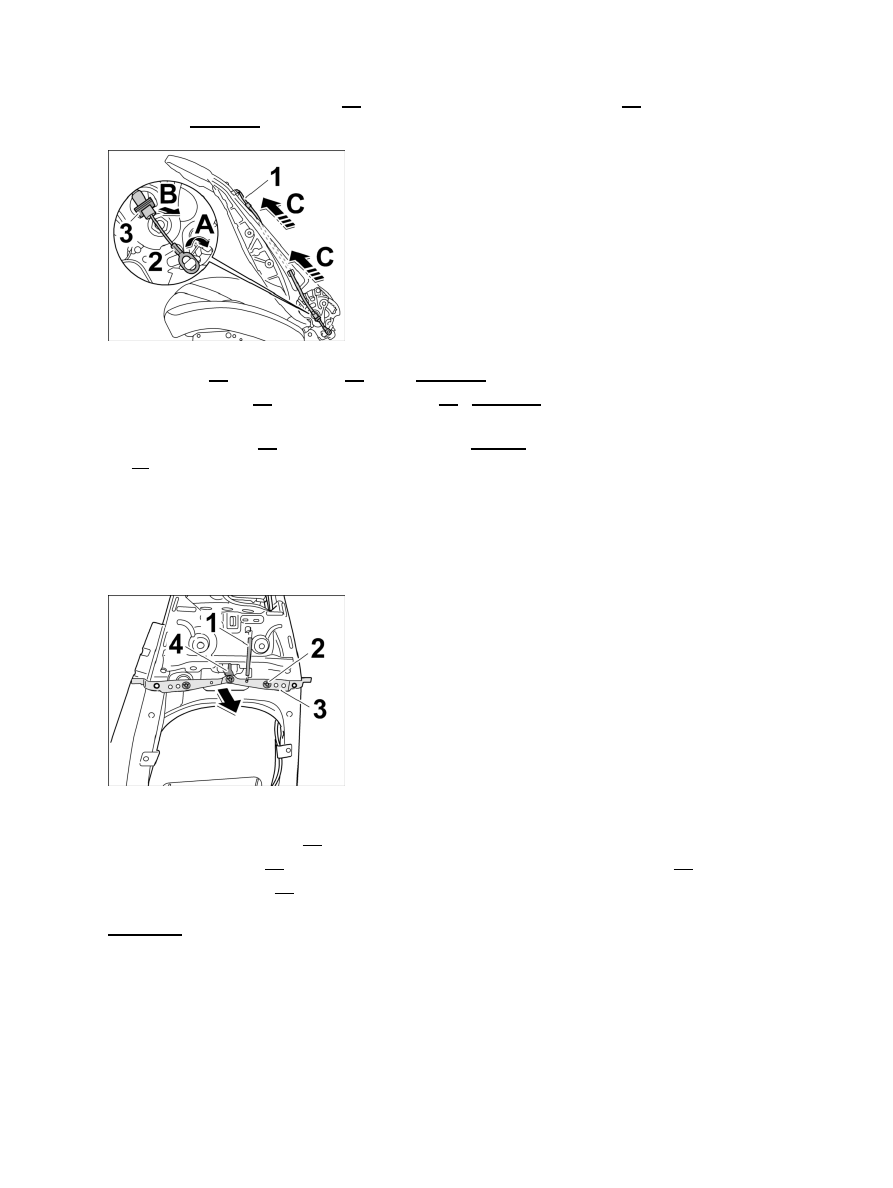

Disengaging bowden cable downwards

4. Swivel eye -2- of bowden cable -1- by 90° -arrow A- and pull it out of the locking lever.

5. Unclip fixing clip -3- from the backrest frame -1- ( -arrow B-

).

6. Pull bowden cable -1- up out of the backrest frame -arrows

C-

 .

Removing backrest frame release

Removing backrest frame release

1. Disengage tension spring -1- .

2. Press retaining pins -2- out with a screwdriver and remove backrest frame release -3- .

3. Press out rubber stop -4- .

Installing bowden cable for backrest release

Diagnostic system: reading out fault memory and activating systems

Removing bowden cable for backrest release

3221

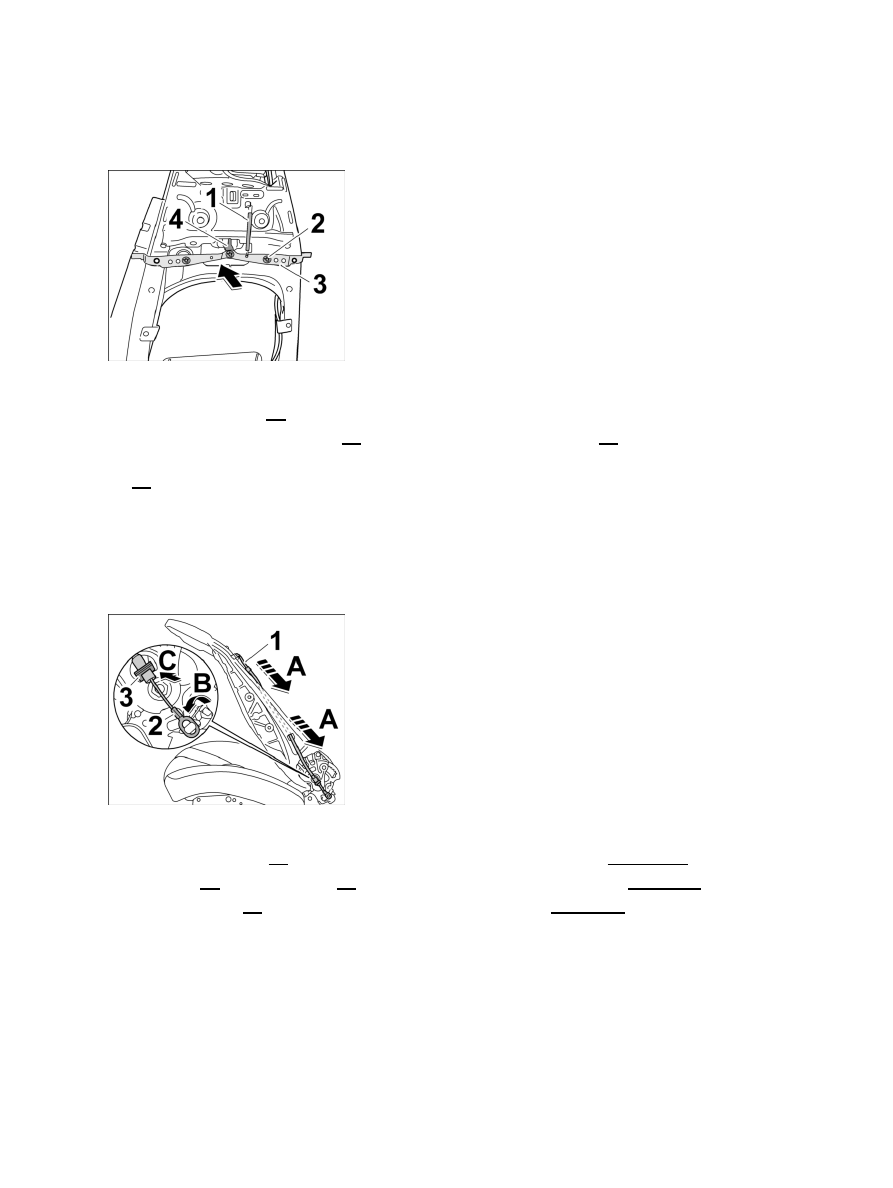

Installing backrest frame release

Installing backrest frame release

1. Press in rubber stop -4- .

2. Position backrest frame release -3- and secure with new retaining pins -2- .

3. Engage tension spring

-1-

 .

Installing bowden cable for backrest release

Installing bowden cable

1. Insert bowden cable -1- downwards into the backrest frame from above -Arrows A- .

2. Insert eye -2- of bowden cable -1- into the locking lever and swivel by 90° -Arrow B- .

3. Press fixing clip -3- with bowden cable into the backrest frame -Arrow C- .

Diagnostic system: reading out fault memory and activating systems

Installing backrest frame release

3222

Engaging bowden cable at the top

4. Position fixing clip -3- on backrest frame and tap it upwards into place with a plastic hammer -Arrow A- .

5. Engage pin -2- of bowden cable -1- ( -Arrow B- ) and swivel downwards by 90° -Arrow C- .

Subsequent work

Reworking

1. Install cushion carrier for front backrest. → 722419 Removing and installing cushion carrier for front

backrest - section on "Installing"

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

Diagnostic system: reading out fault memory and activating systems

Installing bowden cable for backrest release

3223

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.
