Porshe 911 (997). Manual - part 756





Disconnecting electrical plug connection

4. Disconnect electric plug connection 10 by pressing together the lugs arrow.

Installing control module trim panel

Installing control part trim panel

Connect electrical plug connection

1. Position tip switch 6 on the control part trim panel 2 and screw down with the fastening screws 5. Plug in

electrical plug connection 3 and 4.

Positioning control part trim panel

2. Insert control part trim panel 2 into the cushion in direction of arrow.

Diagnostic system: reading out fault memory and activating systems

 Installing control module trim panel

3181

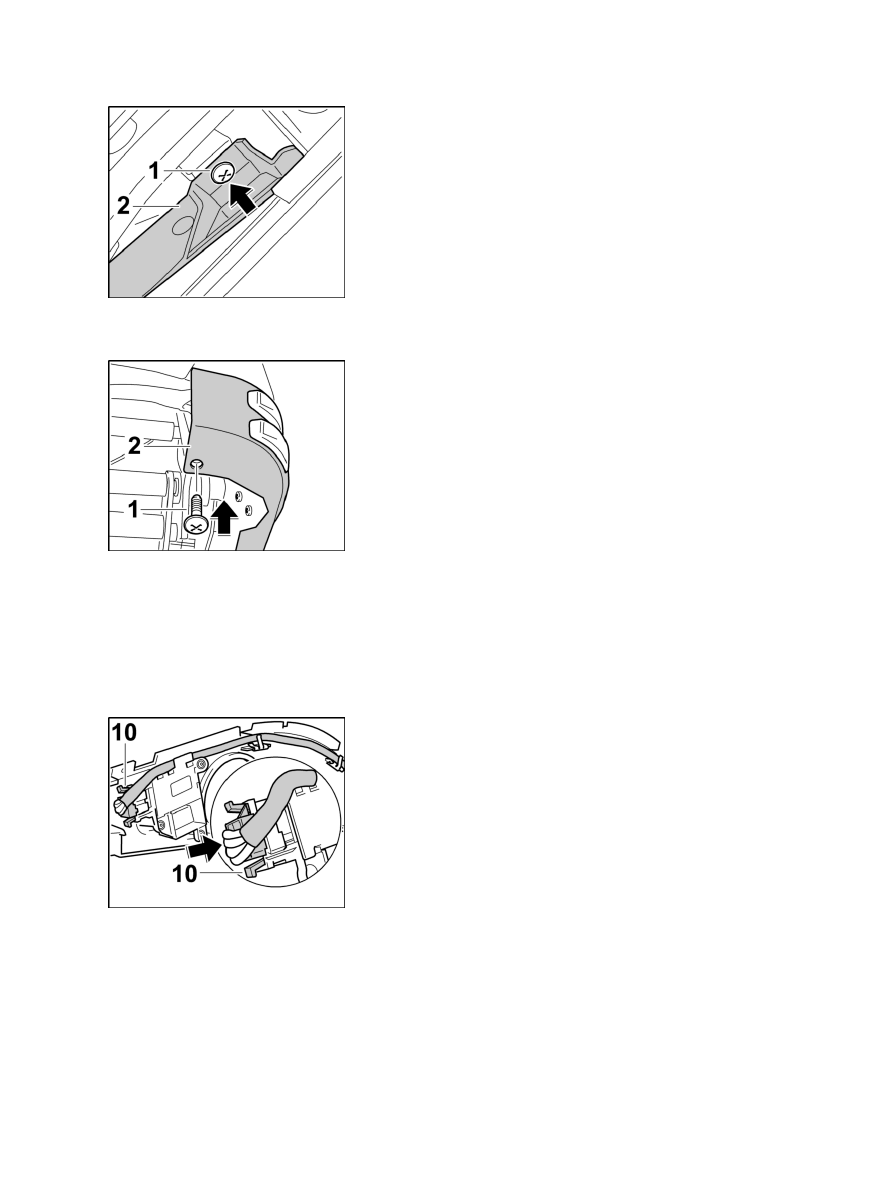

Screwing down rear control part trim panel

3. Screw down rear control part trim panel 2with the fastening screws 1. → Tightening torque: 2 ftlb.

Screwing down front control part trim panel

4. Screw down front control part trim panel 2with the fastening screws 1. → Tightening torque: 2 ftlb.

Installing control part trim panel (mechanical)

Connecting the electrical plug connection

1. Connect electrical plug connection 10.

2. Procedure: Installing control part trim panel, work step 2, 3, 4

Diagnostic system: reading out fault memory and activating systems

Installing control part trim panel

3182

Screwing down lever

3. Position lever 9 on seat, screw down fastening screw 8. → Tightening torque: 4.5 ftlb.

Pressing in trim panel

4. Press in trim

panel.

Subsequent work

1. Install front seat. → 720119 Removing and installing front seat - chapter on "Installing" [997110

997120 997310 997320 997410 997430 997610 997620]→ 720119 Removing and installing
front seat - chapter on "Installing" [997111 997121 997311 997321 997411 997431 997611
997621]

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Diagnostic system: reading out fault memory and activating systems

Installing control part trim panel (mechanical)

3183

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Diagnostic system: reading out fault memory and activating systems

Subsequent work

3184
