Diagnostic system: reading out fault memory and activating systems

Subsequent work

3177

Installation location for control part trim panel

Unscrewing front fastening screw

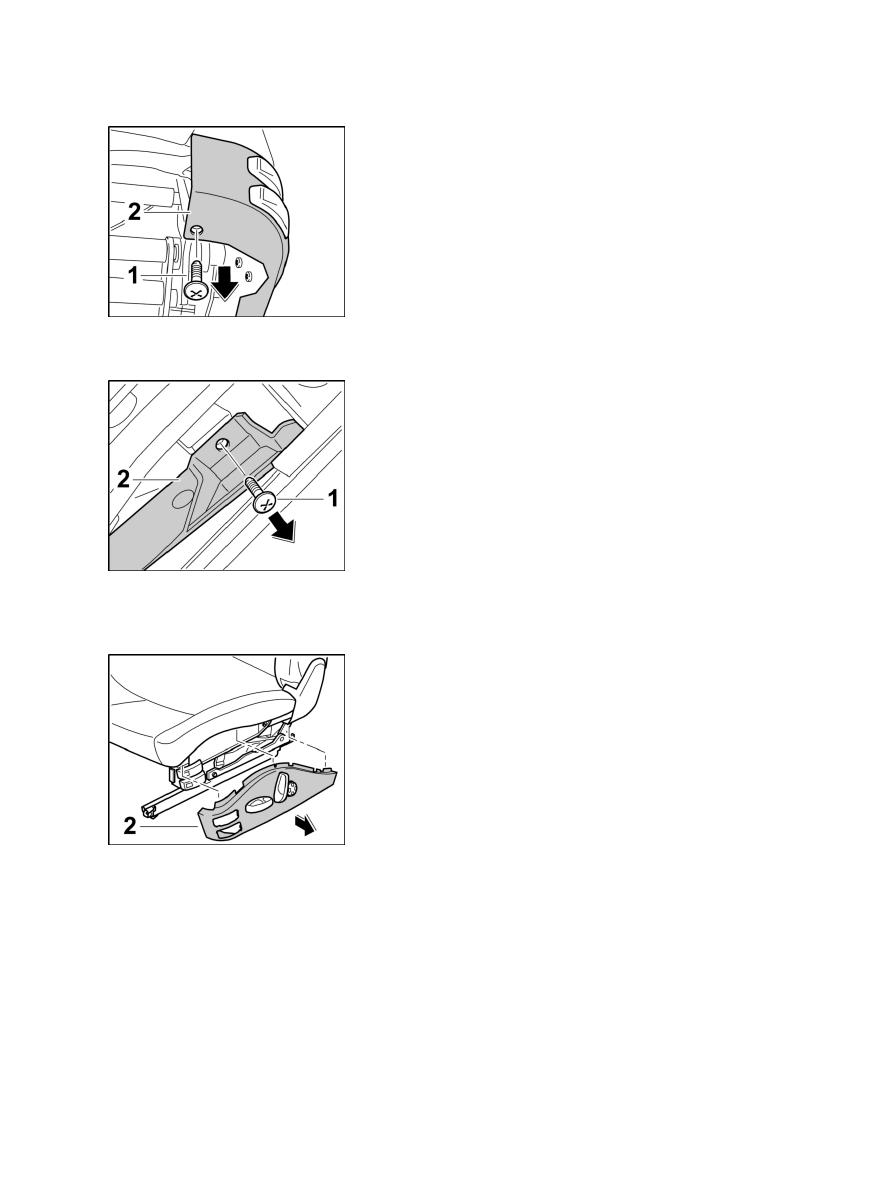

1. Unscrew front fastening screws 1 from the control part trim panel2.

Unscrewing the rear fastening screw

2. Unscrew rear fastening screws 1 from the control part trim

panel2.

Pulling out control part trim panel

3. Pull out control part trim panel 2 from the cushion in direction of

arrow.

Diagnostic system: reading out fault memory and activating systems

Removing control part trim panel

3179

Disconnecting electrical plug connection

4. Disconnect electric plug connection 3 and 4, unscrew fastening screws 5 from the tip switch 6 and take

off the tip switch from the control part trim panel 2.

Removing control part trim panel (with mechanical lever)

Pressing out trim panel

1. Press out trim panel 7 using a plastic spatula.

Unscrewing fastening screw

2. Unscrew fastening screw 8 from the lever 9 and remove lever.

3. Removing control part trim panel, work step 1, 2, 3

Diagnostic system: reading out fault memory and activating systems

Removing control part trim panel (with mechanical lever)

3180
