Porshe 911 (997). Manual - part 754

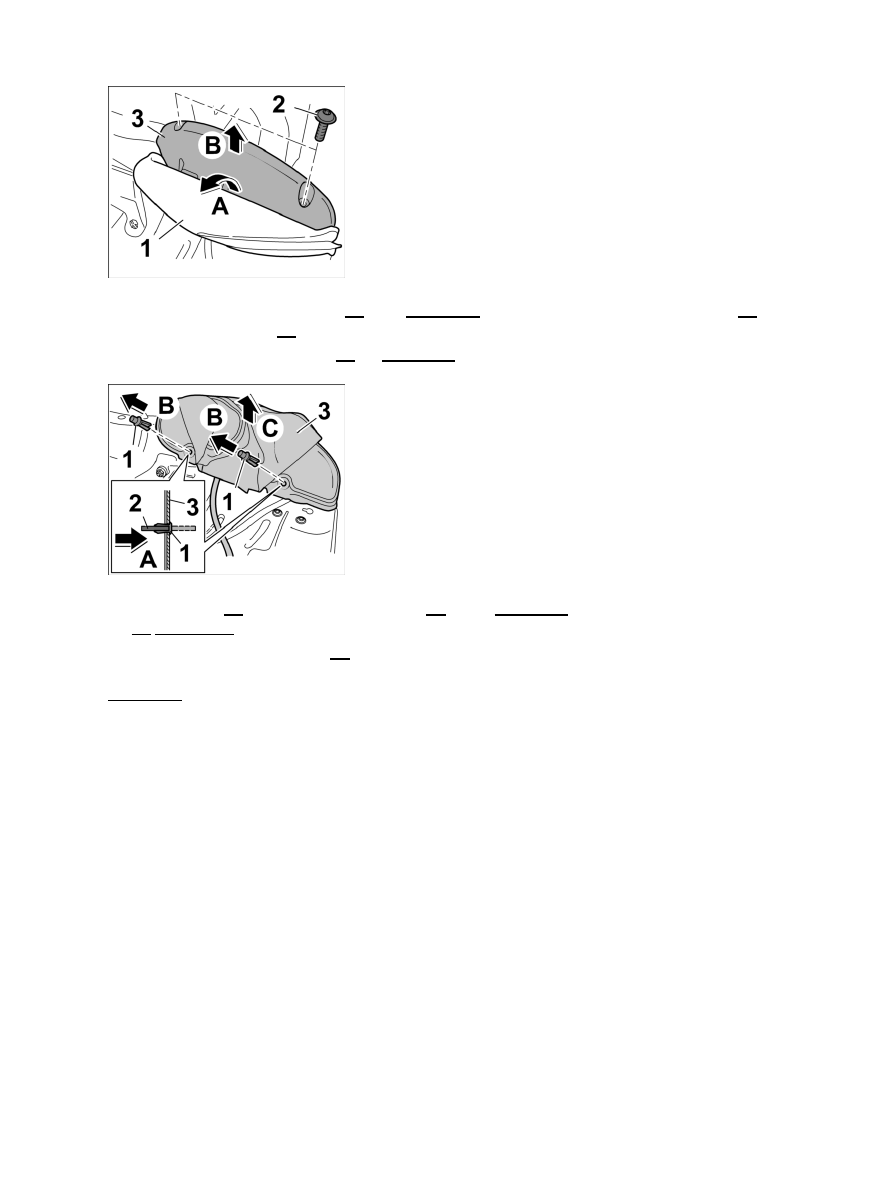

Unscrewing fastening screws on the air cushion support plate

4. Fold the air cushion for the seat -1- aside -Arrow A- and unscrew the two fastening screws -2- on the air

cushion support plate -3- .

5. Take air cushion support plate -3- off -Arrow B-

Removing air cushion for seat

6. Push the pins -2- of the two expanding clips -1- back ( -Arrow A- ) and remove the expanding clips

-1- -Arrows B-

 .

7. Remove air cushion for seat ( -3- ).

Installing air cushion for seat

Installing air cushion for seat

Diagnostic system: reading out fault memory and activating systems

 Installing air cushion for seat

3173

Installing air cushion for seat

1. Position air cushion for seat -3- on the air cushion support plate -Arrow A- .

Note

The air cushion for the seat is fastened only with the rear air cushion on the air cushion support plate.

2. Secure the air cushion for the seat -3- . Use the two expanding clips -1- to fasten -Arrows B- it. To do

this, the pins -2- must be forced into the expanding clips -1- by pressing -Arrow C- .

Tightening the fastening screws on the air cushion support plate

3. The air cushion support plate -3- must be fitted into the seat frame -4- by inserting -Arrow A- the

guides into the seat frame.

4. Fasten the air cushion support plate -3- with the two fastening screws

-2-

 .

5. The air cushion for the seat -1- must be folded over -Arrow B- and aligned with the air cushion support

plate -3- .

Diagnostic system: reading out fault memory and activating systems

Installing air cushion for seat

3174

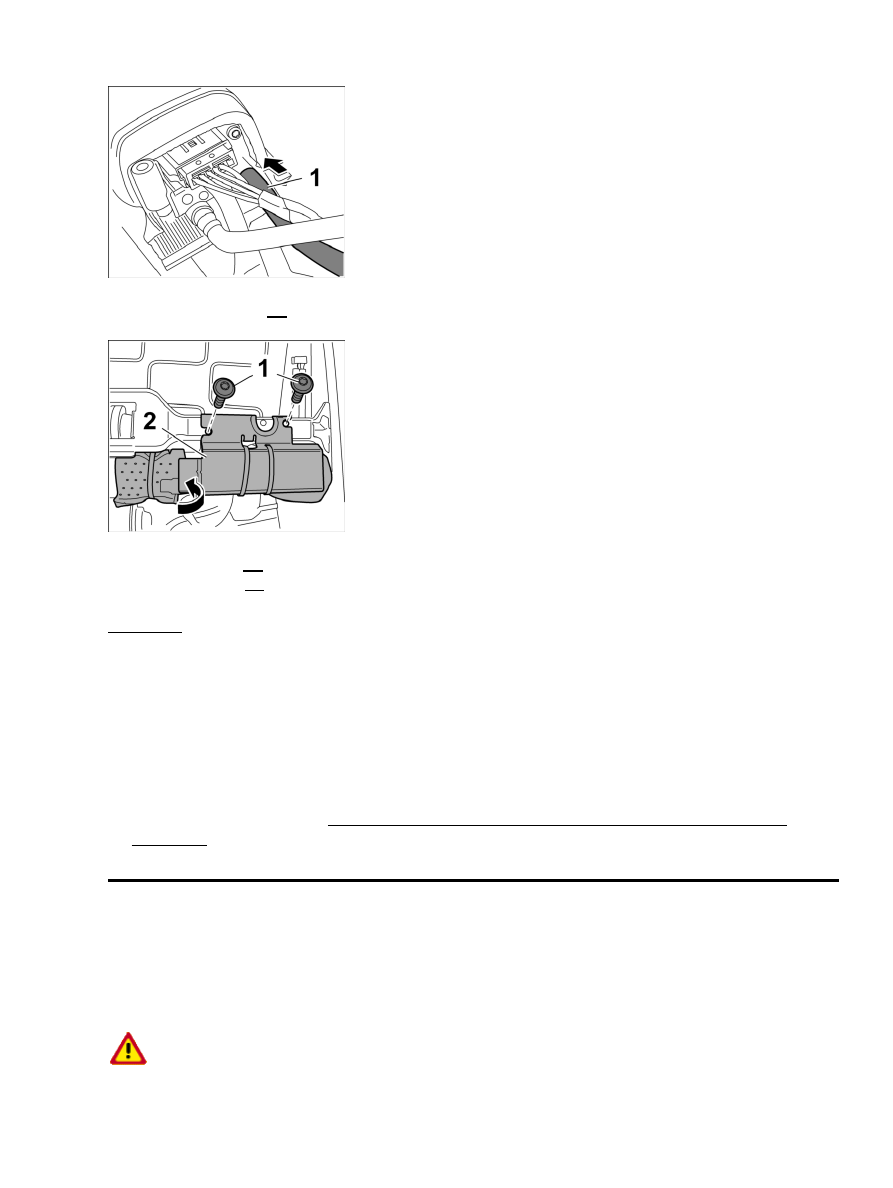

Pushing hose onto the air cushion control valve

6. Push the white hose -1- onto the air cushion control valve.

Securing support with compressor and air distributor valve

7. Position support -2- with connected motor and air cushion control valve and screw down with the two

fastening screws -1- .

Subsequent work

Subsequent work

1. Install padding for front seat. → 741019 Removing and installing padding for front seat - chapter on

"Installing"

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
