Porshe 911 (997). Manual - part 750

Removing frame for seat surface

Removing frame for seat surface

1. Press out retaining pins -1- at the left and right with a

screwdriver.

2. Unscrew fastening screws -2- , pull frame for seat surface -3- downwards -arrow A- and remove

outwards -arrow B- from the seat frame -4- .

Removing backrest frame

Removing backrest frame

Note

Two persons are needed to remove and install the backrest frame.

1. Secure backrest frame -2- in upright position.

Diagnostic system: reading out fault memory and activating systems

Removing frame for seat surface

3157

2. Unscrew fastening screws -1- on left and right and remove backrest frame -2- up out of the seat

frame.

Assembling seat frame

Installing backrest frame

Installing backrest frame

DANGER

Loosen the safety-related threaded joint.

Danger of injury if front seat is not screwed down correctly.

•

→ Always replace fastening screws for the front seat after customer service and reworking.

→ It is not permissible to make alterations to the micro-encapsulated screws (e.g., use lubricant, loosen bolts,

and screw them down again).

Note

Two persons are needed to remove and install the backrest frame.

1. Fit backrest frame -2- into the seat frame, position it correctly and secure with the fastening screws -1- .

Tightening torque → Tightening torque: 34 (25 ftlb.) Nm +/-4 (3 ftlb.) Nm

Installing frame for seat surface

Diagnostic system: reading out fault memory and activating systems

Removing backrest frame

3158

Installing frame for seat surface

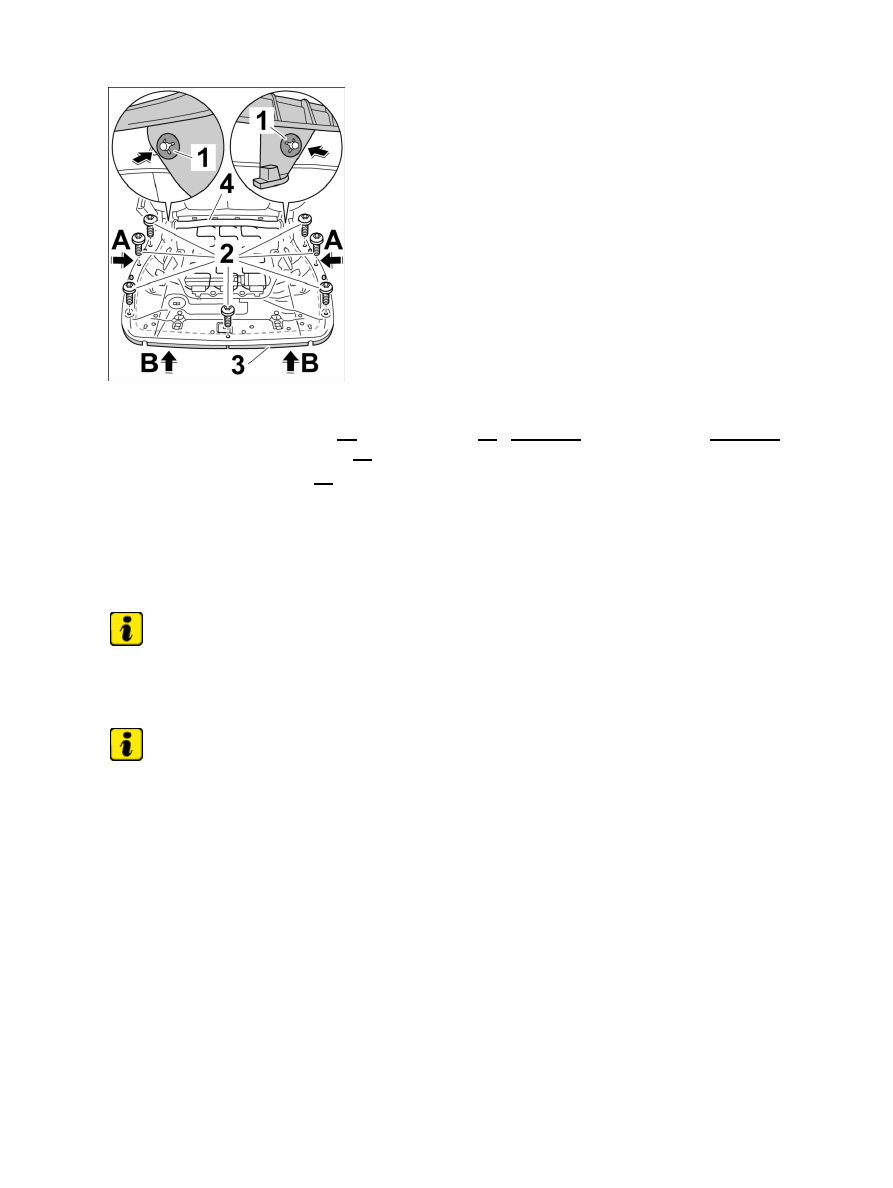

1. Position frame for seat surface -3- on the seat frame -4- ( -arrow A- ), press it upwards -arrow B- and

screw down the fastening screws -2- .

2. Press in new retaining pins -1- at the left and

right.

Installing cover for AWS sensor on left and right

Note

Only for USA/Canada version vehicles.

•

Note

Passenger's seat only.

•

Diagnostic system: reading out fault memory and activating systems

Installing frame for seat surface

3159

Installing cover for AWS sensor

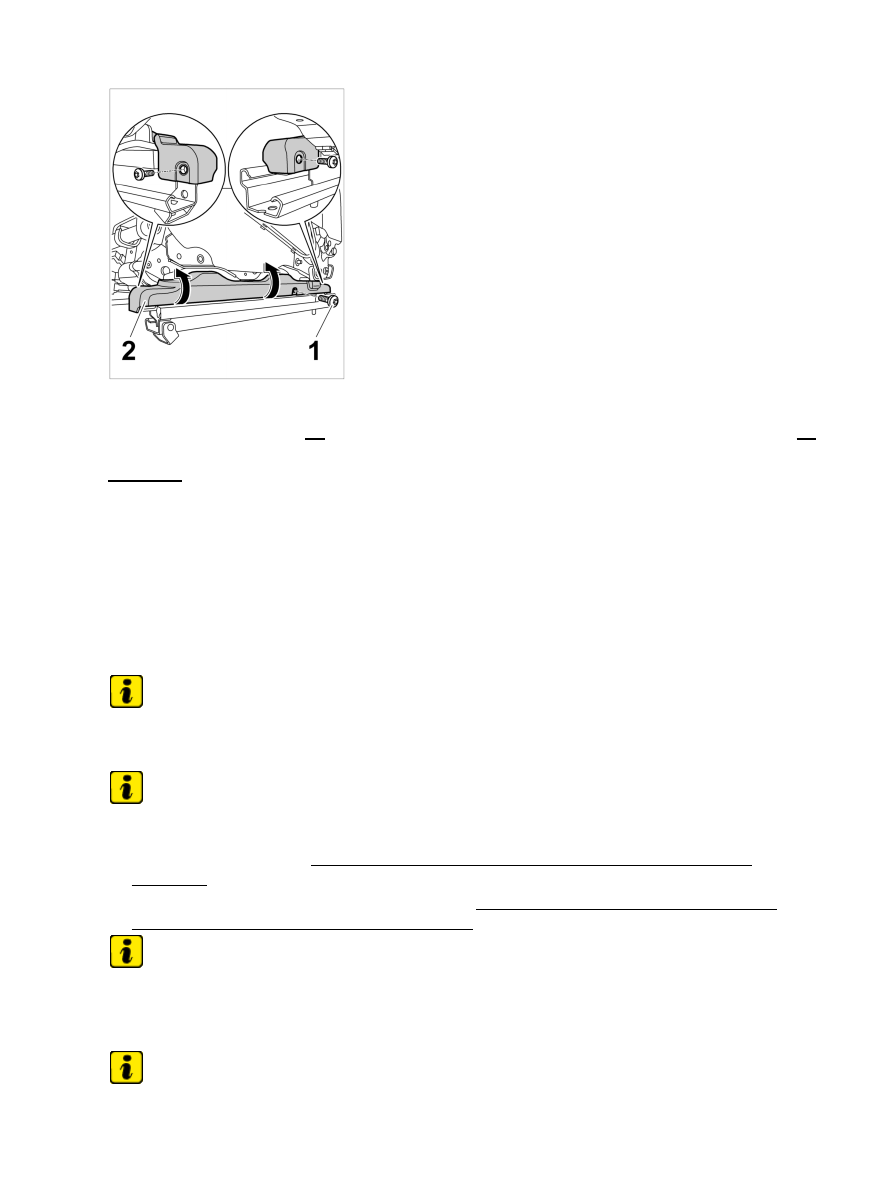

1. Fit cover for AWS sensor -2- in direction of arrow and tighten hand-tight using the fastening screws -1- .

Subsequent work

Subsequent work

Note

Only for vehicles with adaptive sports seats.

Note

Only for vehicles with adaptive sports seats.

1. Install air cushion for seat. → 721419 Removing and installing air cushion for seat - section on

"Installing"

2. Install wire harness for electrically adjustable seats. → 975719 Removing and installing wiring for

electrically adjustable seats - section on "Installing"

Note

Only for USA/Canada version vehicles.

•

Note
