Porshe 911 (997). Manual - part 745

Overview, removing and installing front seat

Note

Only for vehicles with electrically adjustable seat

Disconnecting seat memory plug connection

1. Release electrical plug connection -1- by activating the locking tab -arrow A- and remove from seat

memory control module -arrow B- .

2. Remove front seat.

Disconnecting the electrical plug connection of the AWS control module

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting electrical plug connection (power seat)

3137

Overview, removing and installing front seat

Note

Only for USA/Canada version vehicles.

•

Note

Passenger's seat only.

•

Disconnecting the plug connection of the AWS control module

1. Release electric connector -1- by pressing the lug -arrow a- and pull off from control

module.

Diagnostic system: reading out fault memory and activating systems

Disconnecting the electrical plug connection of the AWS control module

3138

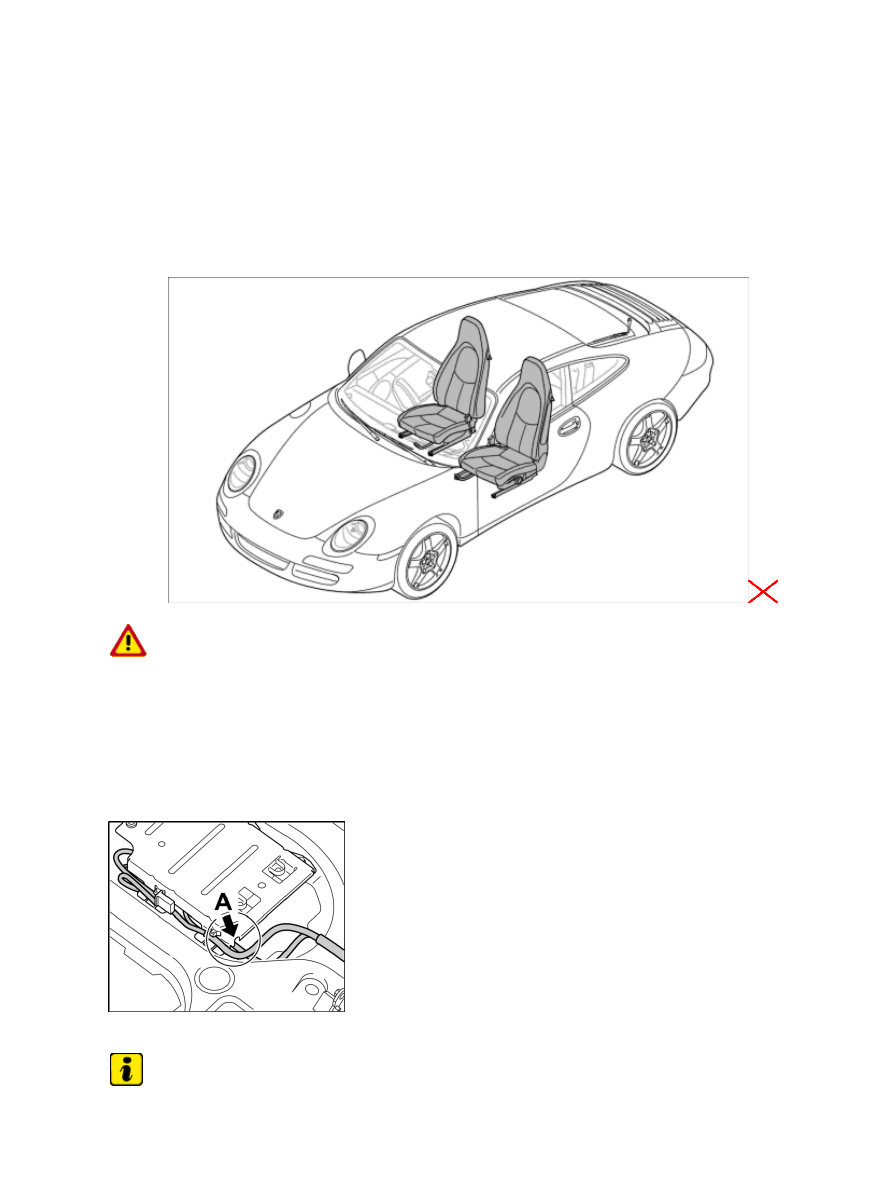

Installing front seat

Fastening electric line

Installation Location:

Overview, removing and installing front seat

WARNING

If the wiring at the telephone holder is not routed correctly, the wires can catch at the seat.

Danger of destroying/damaging wire harness for the telephone control unit

•

→ The wire harness at the telephone holder must not be routed over the edge.

Routing of wire harness

Note

Diagnostic system: reading out fault memory and activating systems

 Installing front seat

3139

The routing of the wire harness for the control unit must be checked before installing the seat.
The wire harness must not be routed over the cover, but should be laid along side the cover -A- .

Note

Before installing and securing the front seat, make sure the electric lines are not pinched or damaged.

Fastening electric line

1. Place front seat in car and tilt backwards.

2. Check tie-wrap -1- , replace tie-wrap -1- if

necessary.

3. Clip wire harness -2- into place.

Locking the electrical plug connection of the AWS control module

Installation Location:

Overview, removing and installing front seat

Diagnostic system: reading out fault memory and activating systems

Fastening electric line

3140
