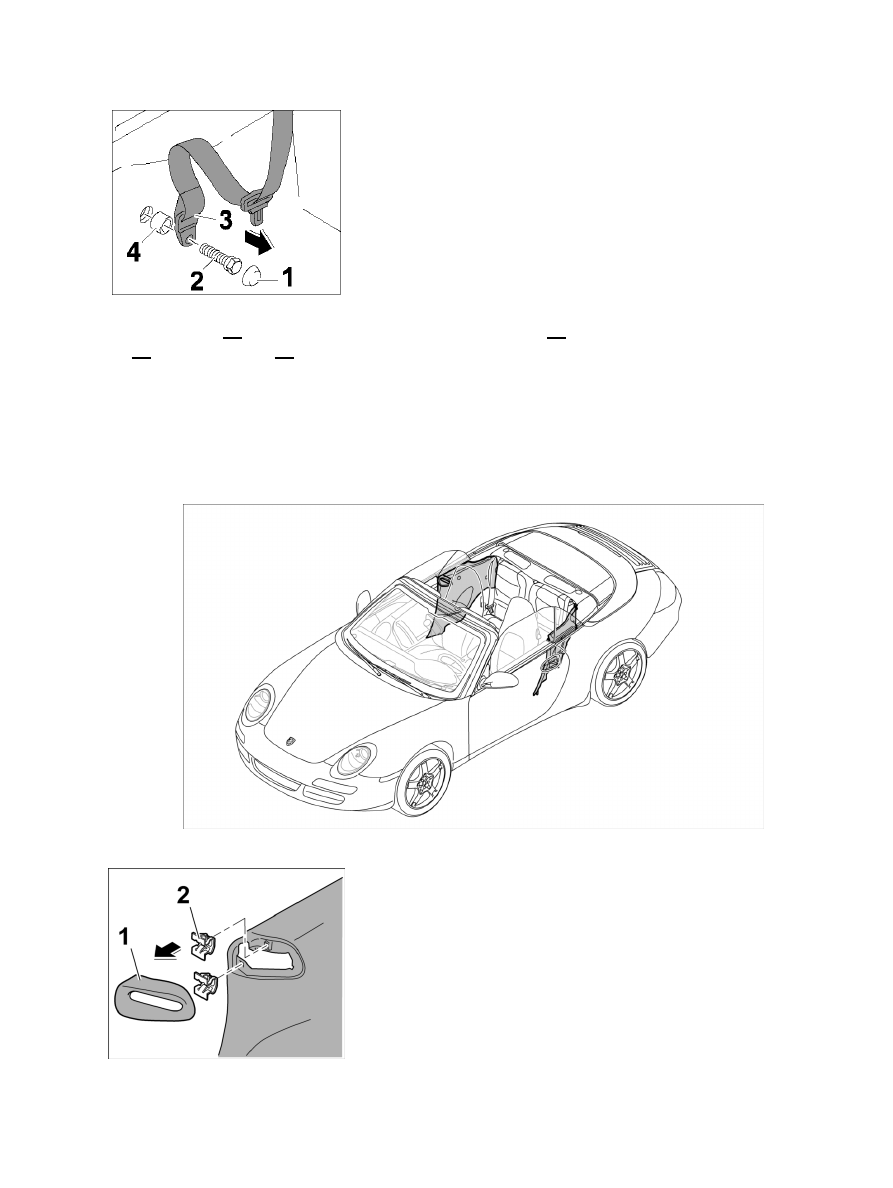

Undoing seat belt and fitting

1. Press out cap -1- with a screwdriver. Unscrew fastening screw -2- . Remove seat belt with fitting

-3-

 and spacer sleeve -4- .

Removing cover of three-point seat belt

Installation Location:

Installation position for side trim panel

Removing cover of three-point seat belt

Diagnostic system: reading out fault memory and activating systems

Removing seat belt and fitting

3077

1. Pull cover of three-point seat belt -1- forwards out of the clips -2- .

Removing side panel trim at rear

1. Pull off door seal at side trim panel.

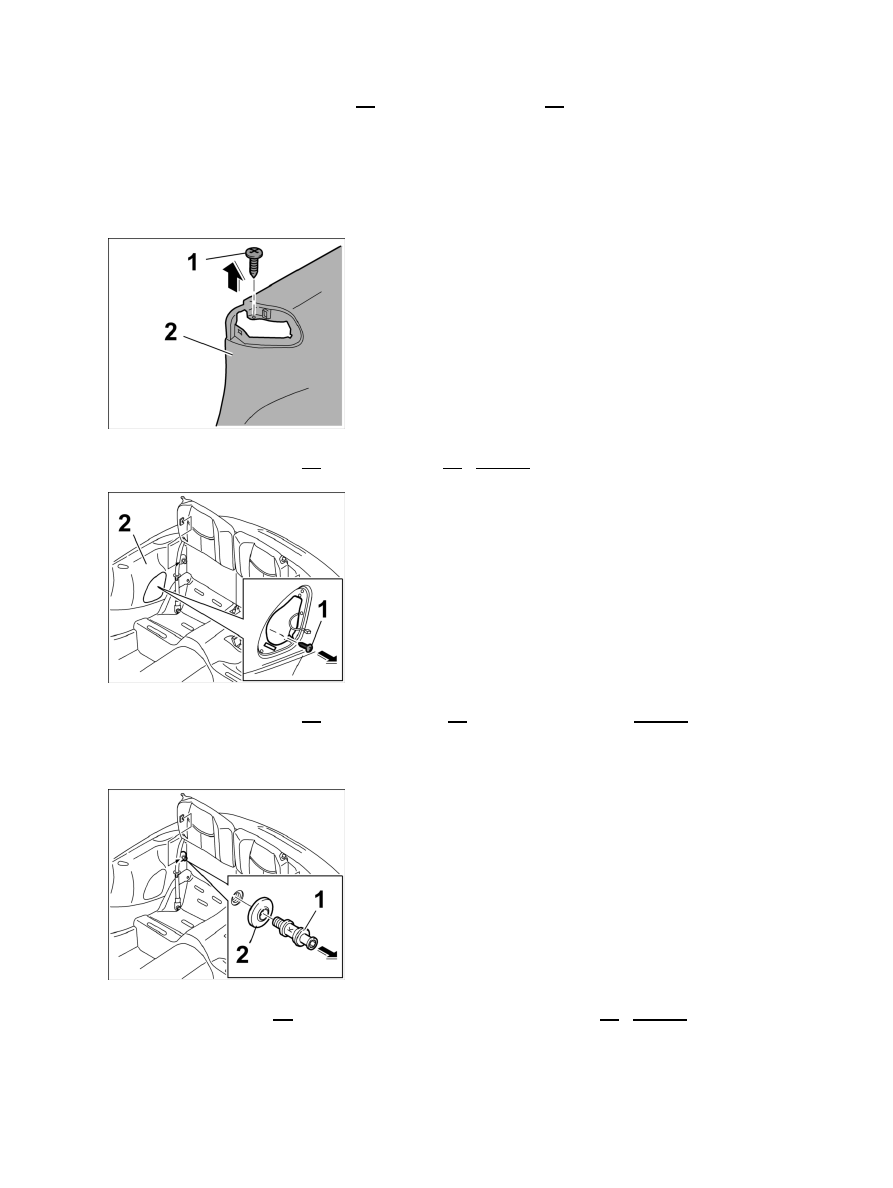

Fastening screw at front side trim panel

2. Unscrew fastening screw -1- at side trim panel -2- ( -arrow- ).

Removing fastening screw close to loudspeaker

3. Unscrew fastening screw -1- on side trim panel -2- close to the loudspeaker -arrow- .

4. Move backrest

forward.

Removing backrest locking pin

5. Unscrew locking pin -1- for backrest. Remove locking pin and washer -2- ( -arrow- ).

Diagnostic system: reading out fault memory and activating systems

Removing cover of three-point seat belt

3078

Removing side trim panel

6. Carefully unclip side trim panel and pull inwards to remove it

-arrow-

 .

Installing rear side trim panel

Installing side trim panel

1. Place side trim panel into position from inside -arrow- and clip in carefully.

Installing backrest locking pin

2. Insert locking pin -1- with washer -2- ( -arrow- ).

Screw in locking pin for backrest. Tightening torque → Tightening torque: 35 (26 ftlb.) Nm +2 (1.5 ftlb.)
Nm

3. Move backrest back into sitting position again.

Diagnostic system: reading out fault memory and activating systems

Removing side panel trim at rear

3079

Screwing in fastening screw close to loudspeaker

4. Insert fastening screw -1- on side trim panel -2- close to the loudspeaker -arrow- and screw down

securely.

Tightening fastening screw on side trim panel

5. Insert fastening screw -1- from above -arrow- at side trim panel -2- and screw in securely. Tightening

torque → Tightening torque: 0.6 (0.5 ftlb.) Nm

6. Attach door seal at side trim panel.

Installing cover of three-point seat belt

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing rear side trim panel
