Diagnostic system: reading out fault memory and activating systems

Installing footrest

3005

Installing cover for front lock mount

Installing cover for lock support

Note

The Velcro fasteners must be removed and replaced when replacing the front apron and cover for
lock support.

•

1. Check Velcro fasteners on front apron and cover for lock support and replace if necessary. See: Additional

assembly instructions for replacing Velcro fasteners

Inserting trim panel

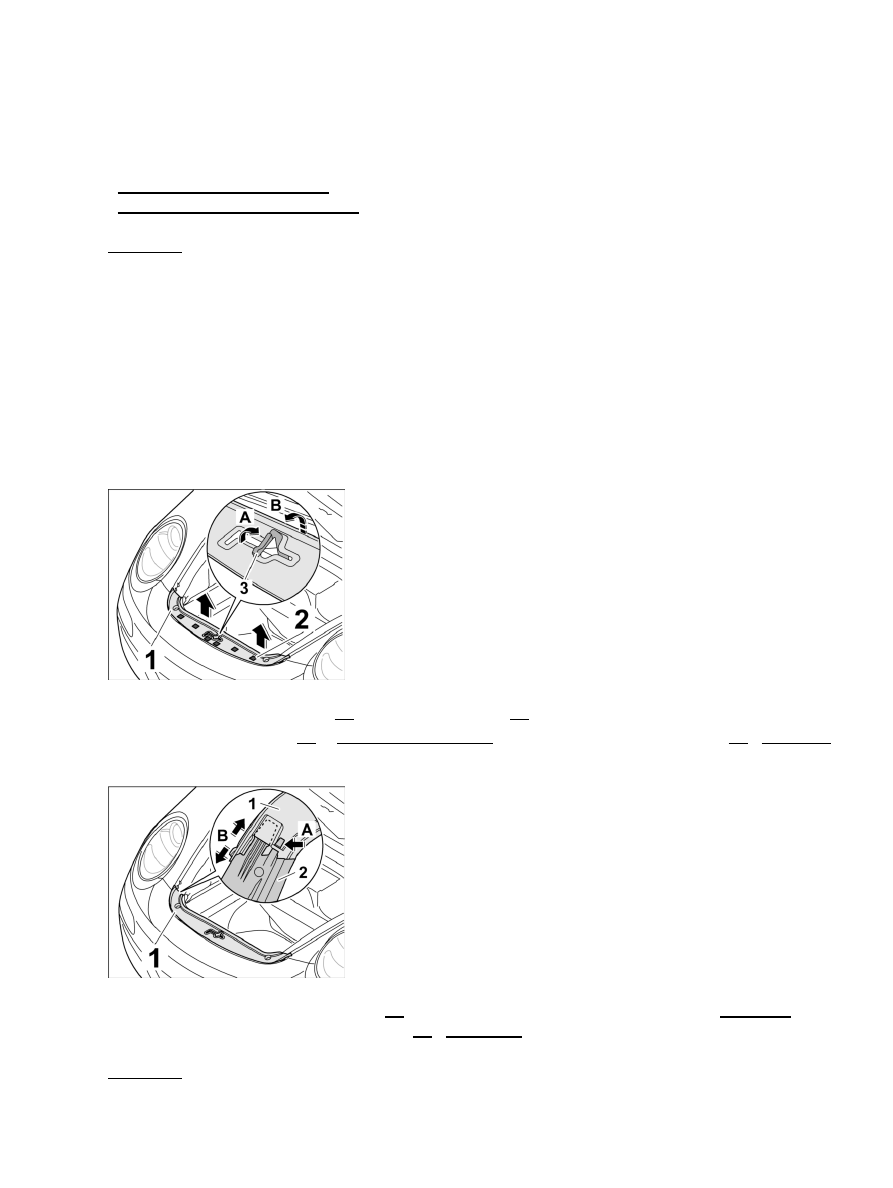

2. Insert trim panel for lock support -1- sideways into the cover for the wing flange -2- ( -arrows A- ).

Installing lining

3. Actuate lid-release lever -3- in -direction of arrow A- and fit trim panel for lock support -1- ( -arrow B-

).

Diagnostic system: reading out fault memory and activating systems

 Installing cover for front lock mount

3007

Securing trim panel

4. Insert locking lug for trim panel for lock support -1- into the wing at the side -2- .

5. Slide trim panel for lock support -1- with the soft lip under the luggage compartment seal and press

on Velcro fasteners.

6. Close front lid.

Checking Velcro fasteners

1. Remove protective paper on the underside, push locking lug into the cover for the wing flange and

press trim panel for lock support -1- down onto the front apron.

2. Press Velcro fasteners -2- on at the positions indicated.

3. Lift off trim panel for lock support -1- and press Velcro fasteners -2- securely onto the front apron

again using a suitable tool.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
