Porshe 911 (997). Manual - part 704

Overview, cover under instrument panel

Installing lining

1. Insert cover under the instrument panel -2- on the guides.

2. Swivel cover under the instrument panel -2- upwards -arrow A- .

3. Screw in -1- fastening screws. Tightening torque → : 1.5 ftlb.

Removing and installing the cover under the instrument panel
on the passenger's side

Removing the cover under the instrument panel on the passenger's side

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing trim under dashboard on the driver's side

2973

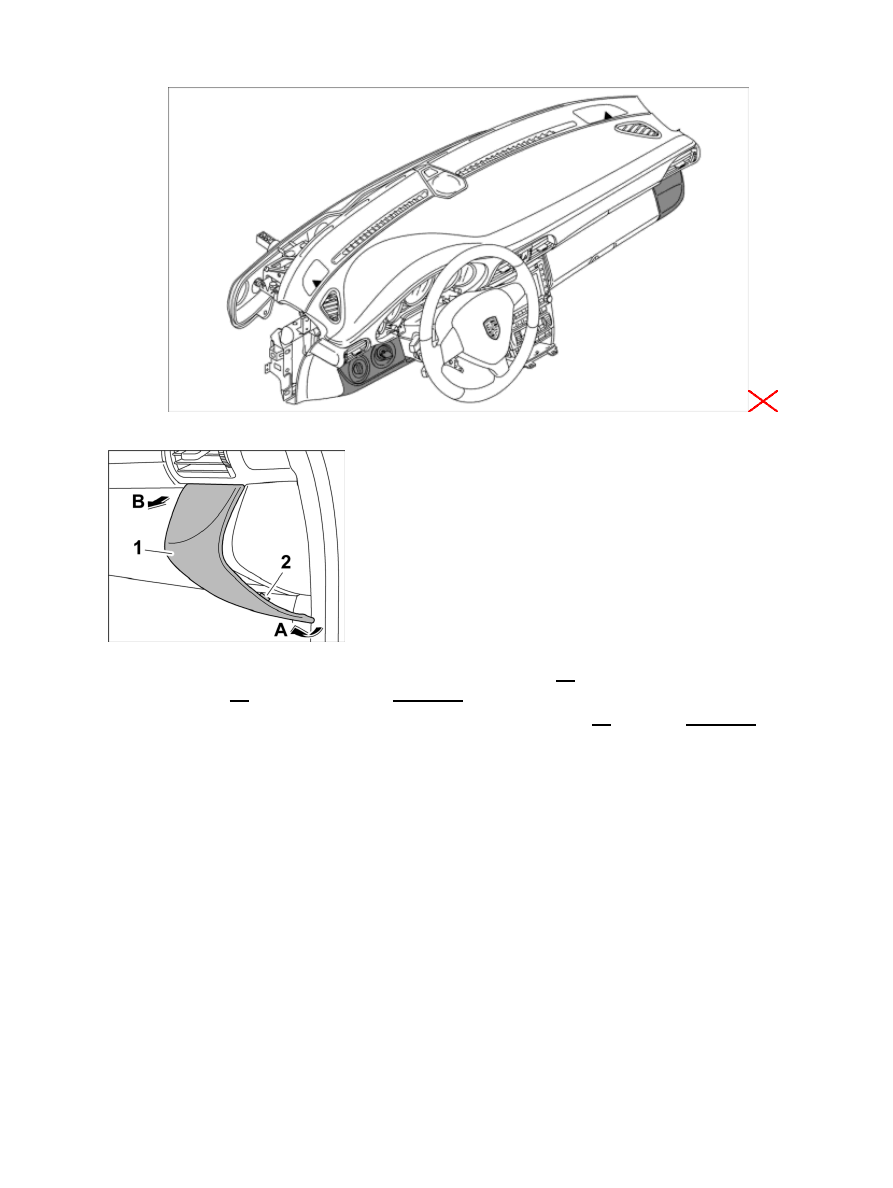

Overview, cover under instrument panel

Removing lining

1. Unclip cover under the instrument panel on the passenger's side -1- with a plastic wedge on the

retaining clips -2- and swivel outwards -arrow A- .

2. Take off the cover under the instrument panel on the passenger's side -1- to the rear -arrow B- .

Installing the cover under the instrument panel on the passenger's side

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing the cover under the instrument panel on the passenger's side

2974

Overview, cover under instrument panel

Installing lining

1. Insert the cover under the instrument panel on the passenger's side -1- from above -arrow A- .

2. Swivel cover under the instrument panel on the passenger's side -1- downwards and press in -arrow

B-

 , until the retaining clips -2- engage audibly.

Reworking

Reworking

Install left centre console cover. → 681419 Removing and installing centre console cover - chapter on
"Installing"
Install top steering-column trim. → 481319 23 Removing and installing trim panel - chapter on "Installing"
Install dashboard cover on left. → 701619 Removing and installing dashboard cover - installing
Installing main light switch → 940519 Removing and installing main light switch - installing

Diagnostic system: reading out fault memory and activating systems

Installing the cover under the instrument panel on the passenger's side

2975
