Detaching outer instrument panel

2. Unscrew fastening screws -1- on the instrument panel -2- close to the outer air ducts.

Removing instrument panel

3. Unscrew fastening screws -1- on the instrument panel -2- close to the instrument cluster and middle

air vents.

Note

When removing the instrument panel, make sure that no wires or plug connections are damaged.

•

4. Carefully remove instrument panel -2- to the rear.

Installing instrument panel

Diagnostic system: reading out fault memory and activating systems

 Installing instrument panel

2961

Checking instrument panel clips

Installation Location:

Overview, instrument panel

Instrument panel clips

1. Check instrument panel clips and replace if necessary.

Installing instrument panel

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Checking instrument panel clips

2962

Overview, instrument panel

Note

When installing the instrument panel, make sure that no wires or plug connections are trapped.

•

1. Carefully fit instrument panel over the instrument panel bracket.

Installing instrument panel

Note

Before securing the instrument panel, make sure that all wires and plug connections are routed
correctly.

•

2. Screw in instrument panel -2- close to the instrument cluster and middle air vents using the fastening

screws -1- .

Diagnostic system: reading out fault memory and activating systems

Installing instrument panel

2963

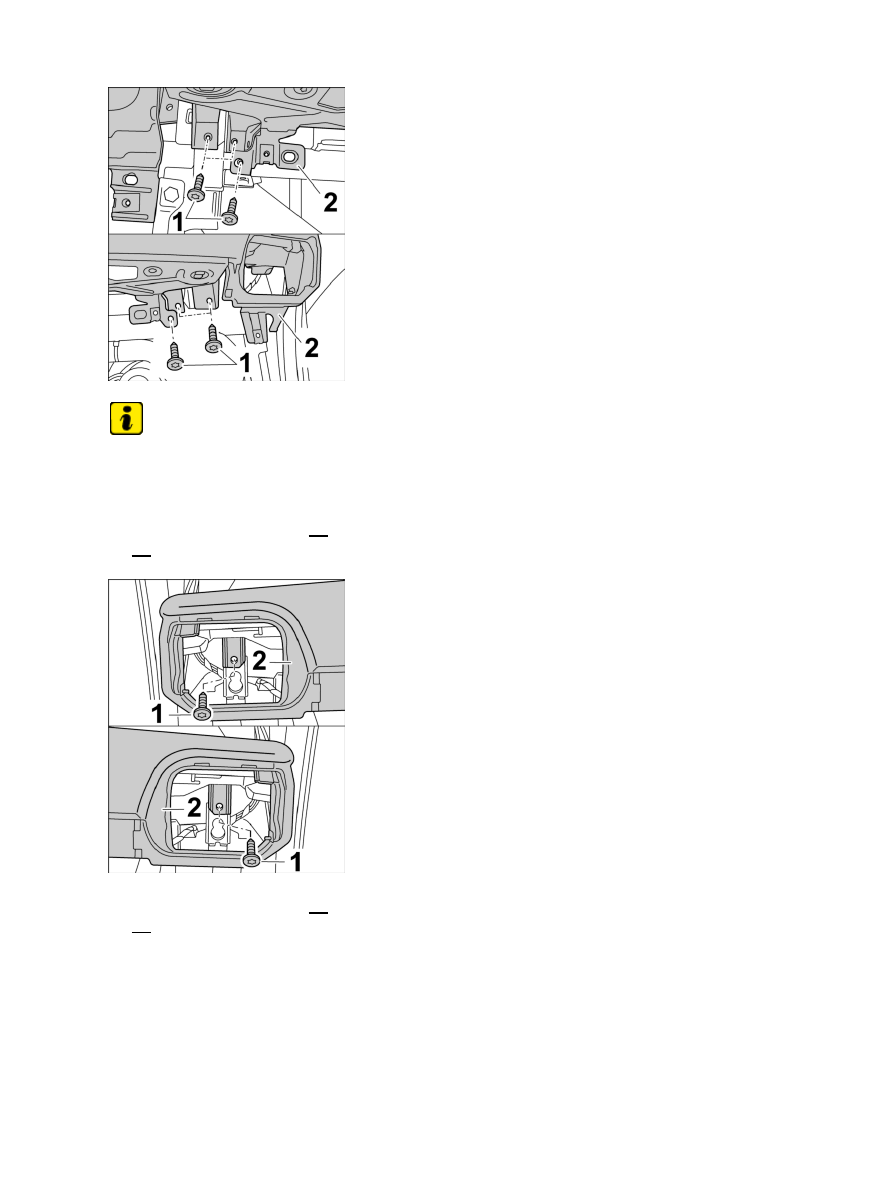

Fastening the instrument panel

Note

Before securing the instrument panel, make sure that all wires and plug connections are routed
correctly.

•

3. Screw in instrument panel -2- at the lower front passenger side using the fastening screws

-1-

 .

Fastening outer instrument panel

4. Screw in instrument panel -2- close to the outer air ducts using the fastening screws

-1-

 .

Securing intermediate piece for defroster cover

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Securing intermediate piece for defroster cover
