Porshe 911 (997). Manual - part 693





Installation position for roll-over bar

Mechanical emergency triggering of the roll-over protection system

If the roll-over bar modules cannot be triggered via the diagnostic interface, mechanical emergency triggering
is possible.

1. Unclip cover upwards

-1-

 .

ATTENTION

Danger of injury when working on the roll-over protection system!

→ The movement range of the roll-over protection system must be kept

clear.

2. Press with a screwdriver against the upper edge of the pawl -2- . The roll-over protection system will be

released.

Diagnostic system: reading out fault memory and activating systems

Mechanical emergency triggering of the roll-over protection system

2929

Removing roll-over bar module

Installation Location:

Installation position for roll-over bar

Triggering roll-over protection system

Note

Actuate the roll-over protection system only if:

the hardtop is removed

•

the convertible top is open

•

the caps are removed

•

1. Connect the PIWIS tester 9718 to the diagnostic socket. Switch on ignition. Select menu item "Roll-over

protection", and select menu item "Drive links" in the command line which then appears. Press the key
combination described in the tester; the roll-over protection system is triggered.

Diagnostic system: reading out fault memory and activating systems

Removing roll-over bar module

2930

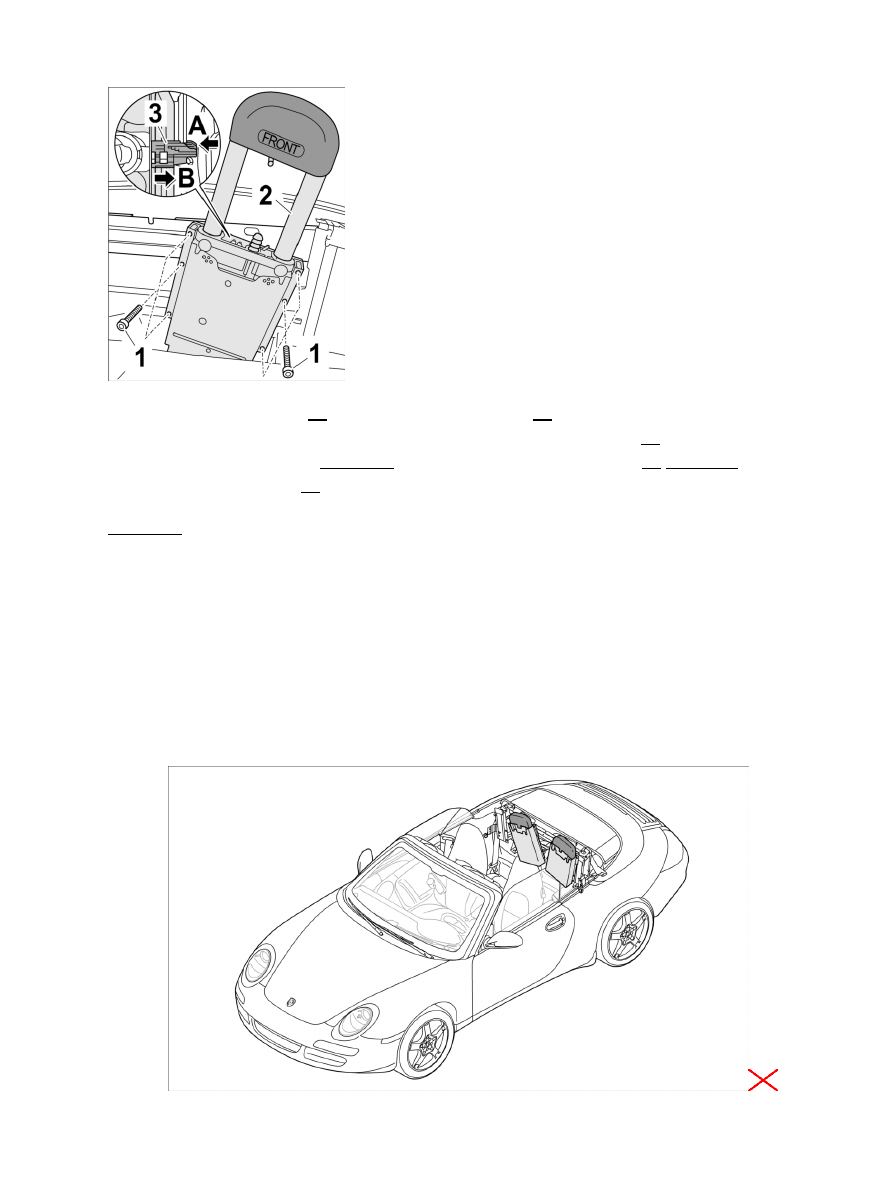

Removing roll-over bar module

2. Unscrew fastening screws -1- from the roll-over bar module -2- .

3. Pull roll-over bar module forwards slightly until the electric plug connection -3- is accessible.

4. Press in locking mechanism -Arrow A- and pull off electric plug connection -3- -Arrow B- .

5. Lift roll-over bar module -2- up and off.

Installing roll-over bar module

Installing roll-over bar module

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing roll-over bar module

2931

Installation position for roll-over bar

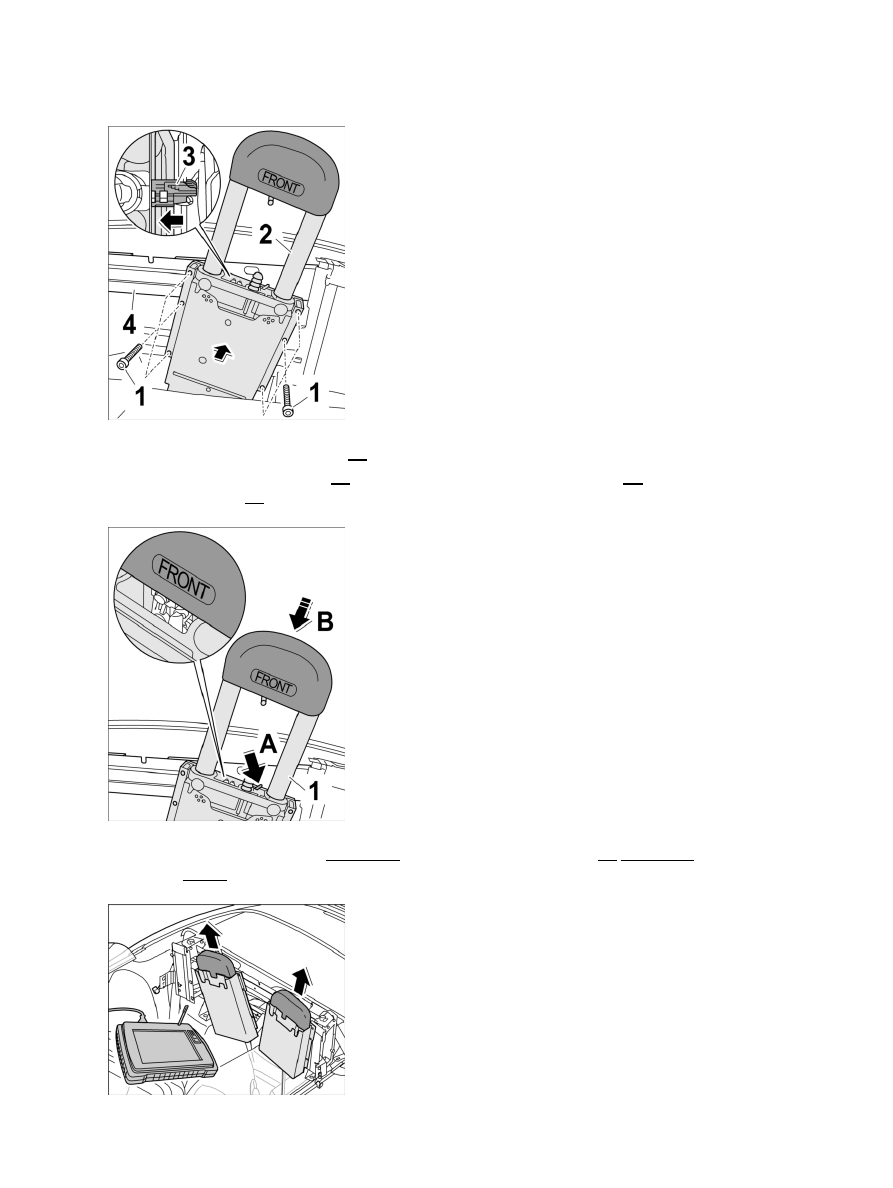

Installing roll-over bar module

1. Push in electric plug connection -3- until it engages.

2. Position roll-over bar module -2- on frame for roll-over protection system -4- and screw down with new

fastening screws -1- . Tightening torque → Tightening torque: 33 (24 ftlb.) Nm

Press in the roll-over bar

3. Press locking levers outward -Arrow A- and press in the roll-over bar -1- -Arrow B- until it is felt to

engage -inset- .

Diagnostic system: reading out fault memory and activating systems

Installing roll-over bar module

2932
