Porshe 911 (997). Manual - part 683





Connection of electric plugs

4. Unclip the electrical leads -4- to the left and right of the airbag unit.

Unfastening the plugs for the airbag

5. Carefully prise out the locking unit -5- and -6- the electrical plugs to the left and right with a screwdriver

-a-

 and then pull the plugs out of the airbag unit.

6. Remove airbag unit and lay to one side in the appropriate manner.

Installing passenger's airbag unit

Installing passenger's airbag unit

WARNING

Diagnostic system: reading out fault memory and activating systems

 Installing passenger's airbag unit

2889

Incorrect triggering of airbag module.

Danger of injury and damage to property as a result of incorrect handling of airbag units!

•

→ The safety regulations →   Safety regulations for handling airbag and belt tensioner units must be

followed.

→ The airbag unit must always be stowed so that the airbag opening faces upwards!

→ If removed for an extended period, the airbag unit must be kept in a locked place!

→ Remove ignition key. Disconnect battery. Route or isolate ground strap so that all contact with a ground

carrier (e.g. body, seat frame) is avoided.

→ After the battery is disconnected, always wait for 1 minute before disconnecting the airbag plugs.

Locking plug for airbag

1. Lift the airbag unit under the dashboard and push in the plug -5- and -6- and lock.

Routing the electric plug

2. Clip in the electrical wire -4- on the left and right in the airbag unit.

Diagnostic system: reading out fault memory and activating systems

Installing passenger's airbag unit

2890

Engaging the reinforcement plate

3. Position the airbag module from below on the mounting bracket and engage the reinforcement plate -3- on

the airbag module.

ATTENTION

Loosen the safety-related screw connection!

Danger of injury and material damage if the airbag module is screwed on incorrectly!

•

→ Always replace fastening screws for the airbag unit after customer service and reworking.

→ It is not permissible to make alterations to the microencapsulated screws (e.g., use lubricant,

loosen bolts, and screw them down again).

Fastening screws for airbag module

4. Screw down the airbag module and reinforcement plate using the four fastening screws -2- . → Tightening

torque: 7 ftlb.

Diagnostic system: reading out fault memory and activating systems

Installing passenger's airbag unit

2891

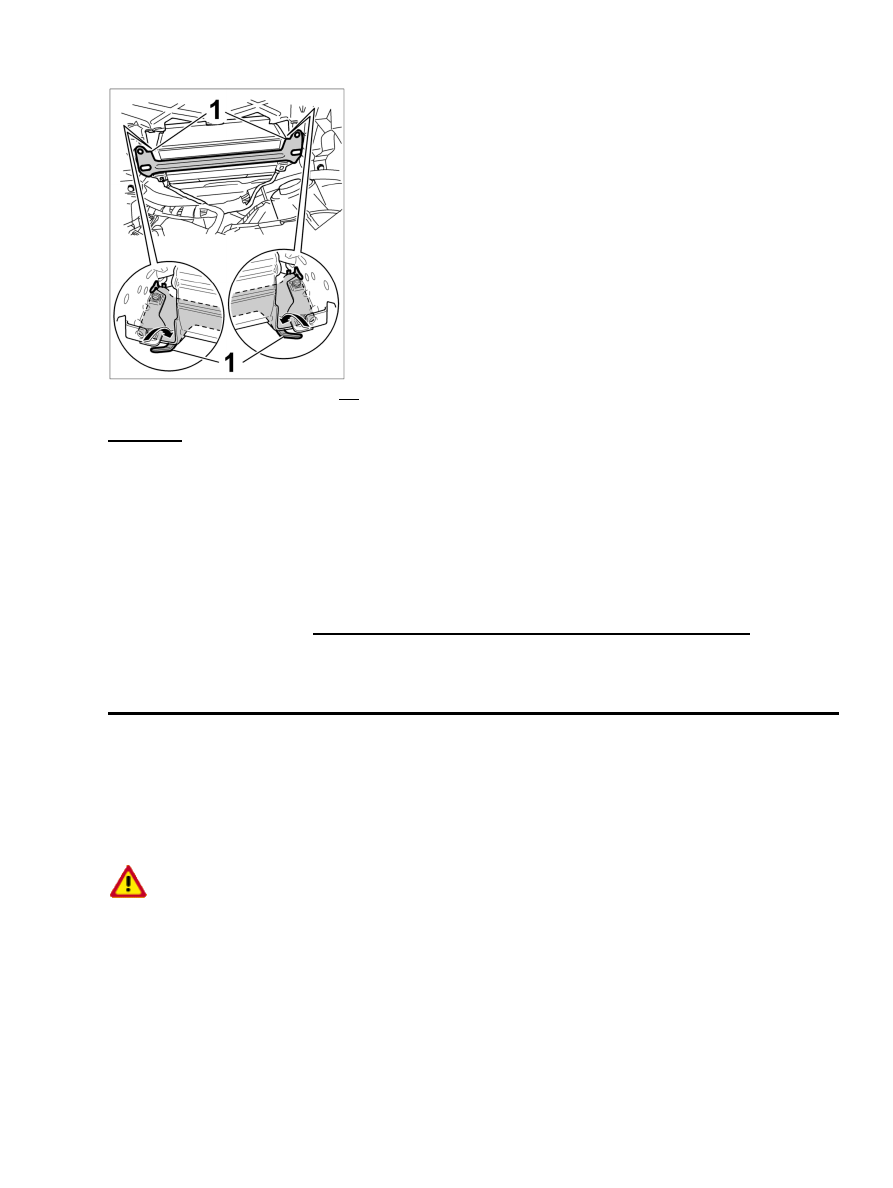

5. Bend over both projecting tabs -1- .

Reworking

Reworking for passenger's airbag unit

1. Install glove compartment. → 681519 Removing and installing glove compartment - installing

2. Connect the battery . →   Work instruction after disconnecting the

battery

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der

Diagnostic system: reading out fault memory and activating systems

 Reworking

2892
