risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.
Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Work in wake of driver's airbag unit

2885

- Preliminary work
- Removing passenger's airbag unit
- Installing passenger's airbag unit
- Reworking

Preliminary work

Preliminary work - airbag unit, passenger's side

1. Disconnect battery. →   Working instructions after disconnecting the

battery

2. Remove glove compartment → 681519 Removing and installing glove compartment - removing

Safety instructions, passenger's airbag unit

WARNING

Incorrect triggering of airbag module.

Danger of injury and damage to property as a result of incorrect handling of airbag units!

•

→ The safety regulations →   Safety regulations for handling airbag and belt tensioner units must be

followed.

→ The airbag unit must always be stowed so that the airbag opening faces upwards!

→ If removed for an extended period, the airbag unit must be kept in a locked place!

→ Remove ignition key. Disconnect battery. Route or isolate ground strap so that all contact with a ground

carrier (e.g. body, seat frame) is avoided.

→ After the battery is disconnected, always wait for 1 minute before disconnecting the airbag plugs.

ATTENTION

Loosen the safety-related screw connection!

Danger of injury and material damage if the airbag module is screwed on incorrectly!

•

→ Always replace fastening screws for the airbag unit after customer service and reworking.

2886

→ It is not permissible to make alterations to the microencapsulated screws (e.g., use lubricant,

loosen bolts, and screw them down again).

Removing passenger's airbag unit

Removing passenger's airbag unit

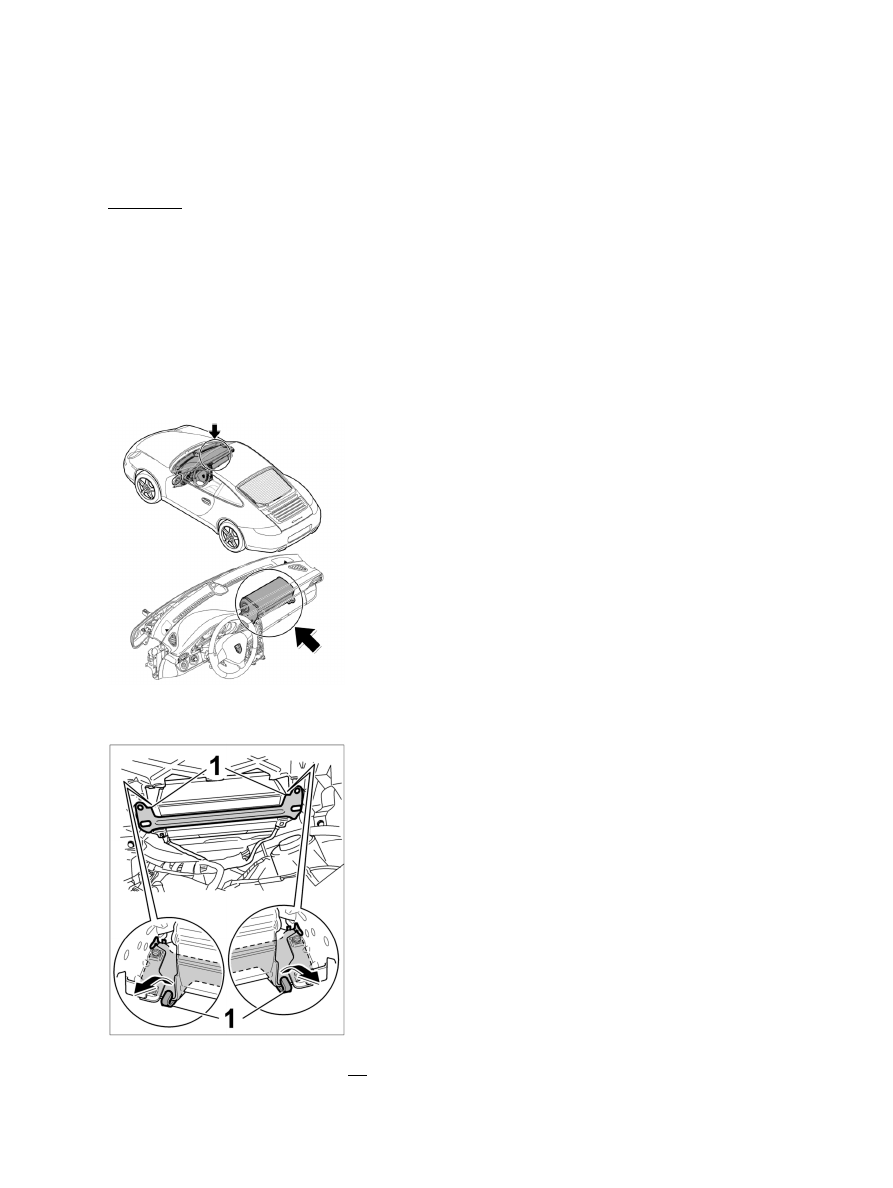

Installation location illustrated on 997

Bend up the reinforcing panel.

1. Bend up the curved metal straps -1- at the right and left of the reinforcing panel with a screwdriver.

Diagnostic system: reading out fault memory and activating systems

Safety instructions, passenger's airbag unit

2887

WARNING

Incorrect triggering of airbag module.

Danger of injury and damage to property as a result of incorrect handling of airbag units!

•

→ The safety regulations →   Safety regulations for handling airbag and belt tensioner units must be

followed.

→ The airbag unit must always be stowed so that the airbag opening faces upwards!

→ If removed for an extended period, the airbag unit must be kept in a locked place!

→ Remove ignition key. Disconnect battery. Route or isolate ground strap so that all contact with a ground

carrier (e.g. body, seat frame) is avoided.

→ After the battery is disconnected, always wait for 1 minute before disconnecting the airbag plugs.

Screws for airbag unit

2. Unscrew the four fastening screws -2- for the airbag unit and carefully lower the airbag unit out a

few centimetres.

Removing the reinforcing panel

3. Push the reinforcing panel -3- back so that it rests on the airbag unit and carefully lower the airbag

unit out a few centimetres.

Diagnostic system: reading out fault memory and activating systems

Removing passenger's airbag unit

2888
