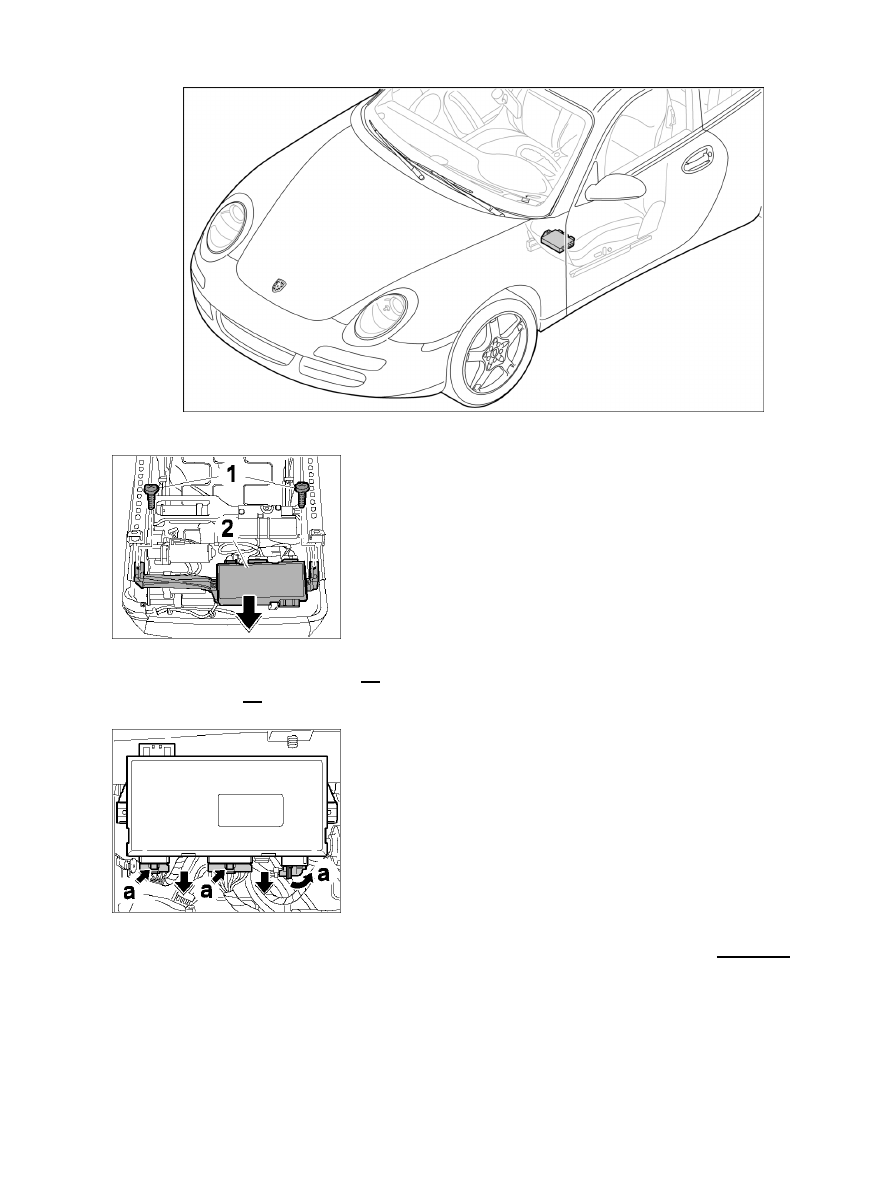

Installation position shown on the 911

Removing control unit for memory seat adjustment with support

1. Unscrew the two fastening screws -1- and remove control unit for memory seat adjustment together

with the support -2- from the seat frame.

Pulling off connectors on control unit for memory seat adjustment

2. Unlock and pull off the three connectors on the control unit for memory seat adjustment -arrows a- .

Removing front belt lock

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing control unit for memory seat adjustment with support

2833

Installation position of front belt lock

Loosening support with compressor and air distributor valve

1. Unscrew the two fastening screws -1- on the support -2- .

2. Set support -2- with connected motor and air cushion control valve

aside.

Loosening wire harness

3. Remove the three tie-wraps -1- and take the wire harness -2- out of the two line holders -3- .

Diagnostic system: reading out fault memory and activating systems

Removing front belt lock

2834

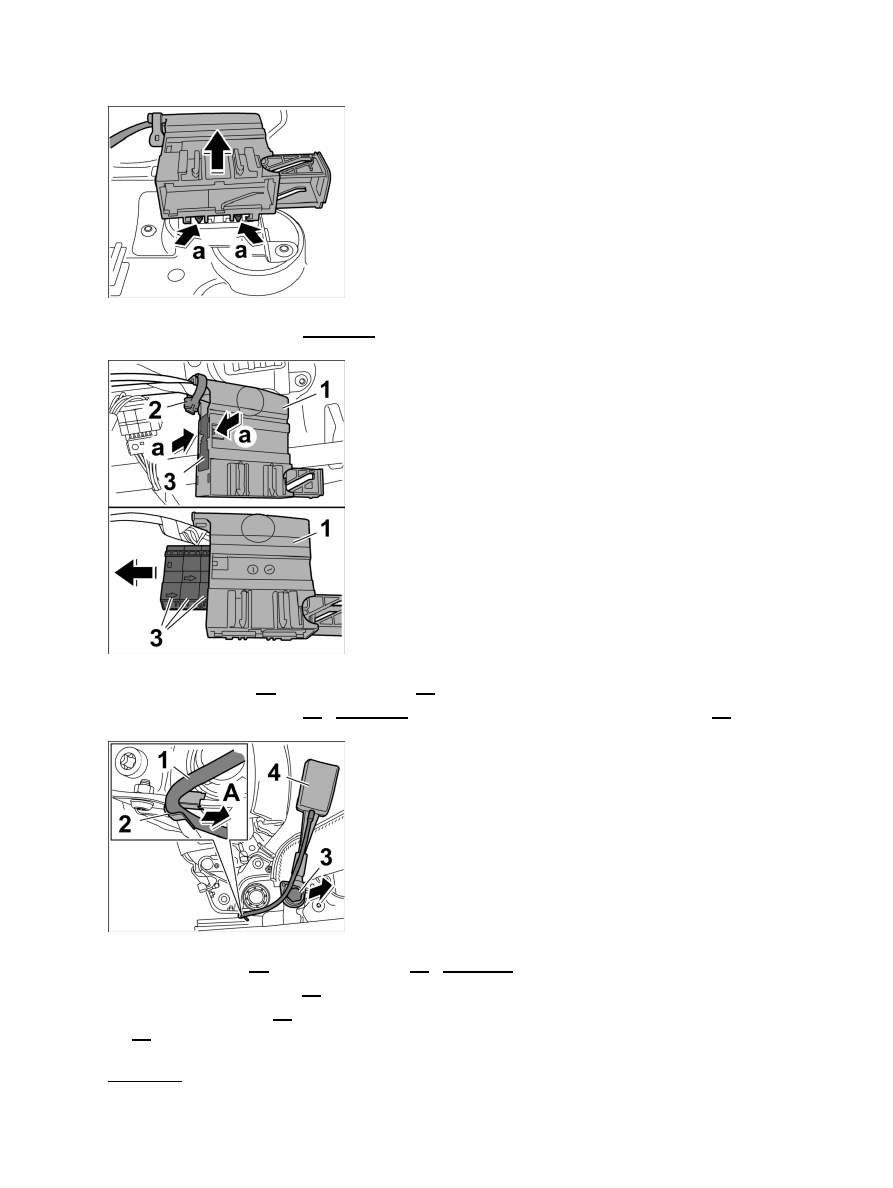

Pulling off connector socket

4. Release connector socket -arrows a- and pull out of holder.

Disassembling connector socket

5. Remove tie-wraps -2- on connector socket -1- .

6. Release connector socket -1- ( -arrows a- ) and remove the three individual connectors -3- .

Removing front belt lock

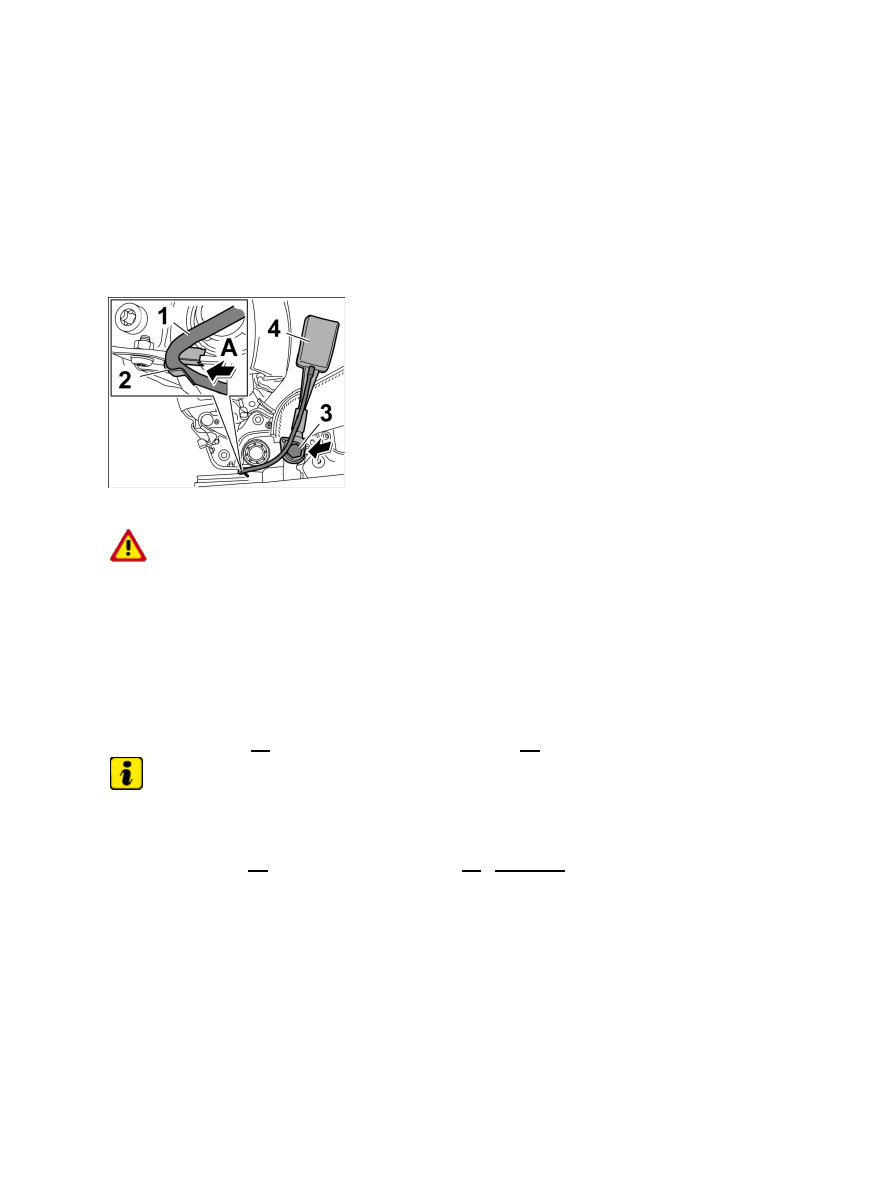

7. Pull wire harness -1- out of the metal clip -2- ( -arrow A- ).

8. Unscrew fastening screw -3- .

9. Pull off wire harness -1- and remove front belt lock

-4-

 .

Diagnostic system: reading out fault memory and activating systems

Removing front belt lock

2835

Installing front belt lock

Installing front belt lock

Installing front belt lock

DANGER

Loosen the safety-related threaded joint.

Danger of injury if belt lock is not screwed on correctly.

•

→ Always replace fastening screws for belt lock after customer service and reworking.

→ It is not permissible to make alterations to the microencapsulated screws (e.g. use lubricant,

loosen bolts, and screw them down again).

1. Position belt lock -4- and secure using the fastening screw -3- . → Tightening torque: 50 (37 ftlb.) Nm

Note

The electric lead must not be routed too tightly around the seat cushion.

•

2. Lay wire harness -1- and press into the metal clip -2- ( -arrow A- ).

Diagnostic system: reading out fault memory and activating systems

 Installing front belt lock

2836
