Porshe 911 (997). Manual - part 662





- Preliminary work
- Removing rear three-point belt
- Installing rear three-point belt
- Subsequent work

Preliminary work

Preliminary work

1. Remove C-pillar trim. → 706819 Removing and installing C-pillar trim - section on "Removing"

Removing rear three-point belt

Undoing seat belt and fitting

Undoing seat belt and fitting

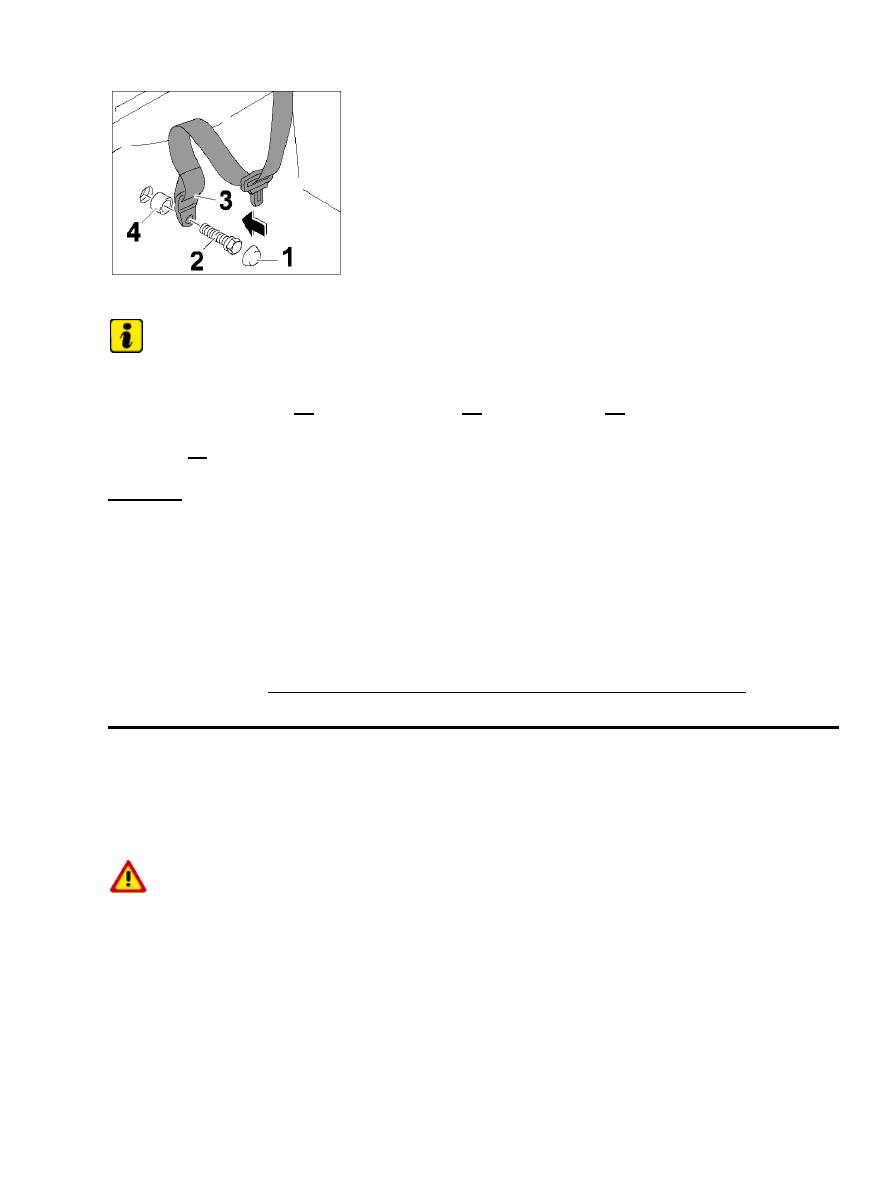

1. Press out cap -1- with a screwdriver. Unscrew fastening screw -2- . Remove seat belt with fitting

-3-

 and spacer sleeve -4- .

2805

Removing rear three-point belt

Installation Location:

Installation location for rear three-point belt

Removing rear three-point belt

1. Unscrew fastening screw -1- from the deflector -2- .

2. Unscrew fastening screw -3- from the automatic belt device -4- and remove automatic belt device -4- .

Installing rear three-point belt

Installing rear three-point belt

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing rear three-point belt

2806

Installation location for rear three-point belt

Installing rear three-point belt

Note

Ensure that belt strap can run properly!

1. Position automatic belt device -4- , making sure that the locking tab of the automatic belt device is

engaged correctly in the sheetmetal bracket.

2. Secure automatic belt device -4- with the fastening screw -3- . Tightening torque → Tightening torque:

37 ftlb. +/-3.5 ftlb.

Note

Ensure that belt strap can run properly!

3. Position deflector -2- and screw down with the fastening screw -1- . Tightening torque →

Tightening torque: 37 ftlb. +/-3.5 ftlb.

Fastening seat belt with fitting

Diagnostic system: reading out fault memory and activating systems

Installing rear three-point belt

2807

Installing seat belt and fitting

Note

Ensure that belt strap can run properly!

1. Tighten fastening screw -2- , seat belt with fitting -3- and spacer sleeve -4- on inner lower side

member. Tightening torque → Tightening torque: 50 (37 ftlb.) Nm +/-5 (3.5 ftlb.) Nm

2. Press in -1- cap.

Subsequent work

Subsequent work

1. Install C-pillar trim. → 706819 Removing and installing C-pillar trim - section on "Installing"

997110, 997111, 997120, 997121, 997410, 997411, 997430, 997431

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der

Diagnostic system: reading out fault memory and activating systems

Fastening seat belt with fitting

2808
