Porshe 911 (997). Manual - part 656

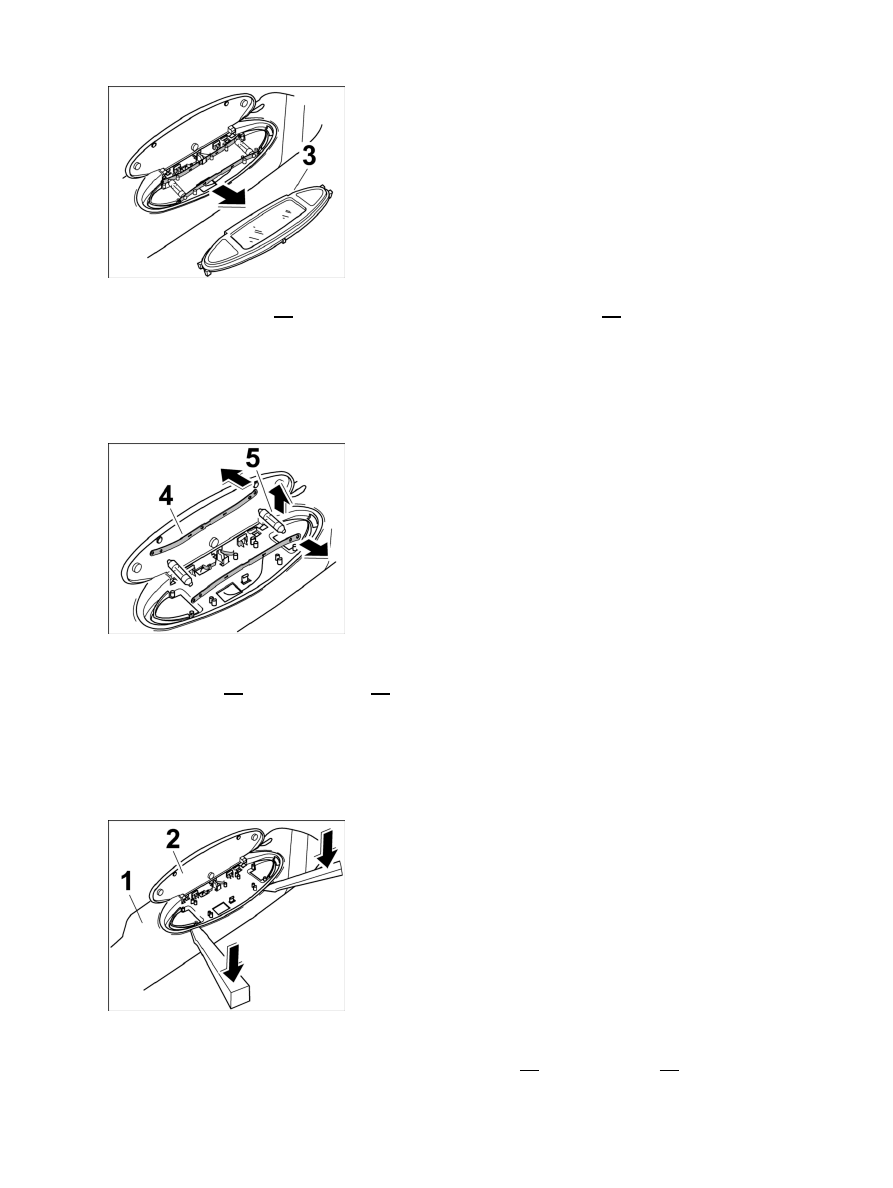

Removing mirror insert

2. Pull the mirror insert -3- upwards and remove from the mirror housing -2- .

Removing bulb and contact clips

Removing bulb and contact clips

1. Remove bulb -5- from contact clips -4- . Take the contact clips upwards out of the holder.

Removing mirror housing

Unclipping mirror housing

1. Insert a narrow plastic spatula between the mirror housing -2- and the sun visor -1- on the left and right

and unclip the mirror housing.

Diagnostic system: reading out fault memory and activating systems

Removing mirror insert

2781

Removing mirror housing

2. Take the electric lead out of the mirror housing -2- and detach the mirror housing from the sun

visor.

Assembling sun visor

Installing mirror housing

Positioning the mirror housing

1. Insert electric lead into the mirror housing -2- . Position the mirror housing in the sun

visor.

Diagnostic system: reading out fault memory and activating systems

Removing mirror housing

2782

Press in mirror housing

2. Press the mirror housing -2- at all four corners until it locks into place.

Inserting contact clips and bulb

Inserting contact clips and bulb

1. Position the contact clips -4- in the mirror housing and fit under the lug. Insert bulb -5- .

Installing mirror insert

Positioning mirror insert

1. Position the lugs on the right and left of the mirror insert -3- in the mirror housing.

Diagnostic system: reading out fault memory and activating systems

Installing mirror housing

2783

Clipping in mirror insert

2. Clip the mirror insert -3- into the mirror housing -2- on the left, right and in the middle.

Subsequent work

Reworking

Install sun visor. →  23 Removing and installing sun visor - installing
