Porshe 911 (997). Manual - part 650

- Preliminary work
- Disassembling the centre console
- Assembling the centre console
- Subsequent work

Preliminary work

Preliminary work

1. Remove centre console. → 681719 Removing and installing centre console - chapter on "Removing"

2. Remove front ashtray. → 682019 Removing and installing front ashtray - chapter on "Removing"

3. Remove cover for rear tray. → 684819 21 Removing and installing cover for rear luggage tray -

chapter on "Removing"

4. Remove cigarette lighter. → 906219 Removing and installing cigarette lighter - chapter on "Removing"

5. Remove centre console socket. → 905819 Removing and installing socket - chapter on "Removing"

6. Remove interior monitoring sensor. → 968519 Removing and installing interior monitoring sensor -

chapter on "Removing"

Note

Only in the cabriolet.

7. Removing switch for convertible top operation → 616019 21 Scd - chapter on "Removing"

8. Remove wire harness for centre console. → 972019 Removing and installing wire harness for centre

console - chapter on "Removing"

Disassembling the centre console

Disassembling centre console

2757

Unclipping fastening nut

1. Unclip fastening nut, check and replace if necessary.

2. Turn over centre console.

Removing locking mechanism insert

3. Unscrew fastening screw -1- . Press in locking tabs -arrow A- and remove insert of locking

mechanism -2- .

Removing extension

Note

Only in the coupé.

4. Unscrew fastening screws -1- and remove extension -2- from centre console

-3-

 .

Diagnostic system: reading out fault memory and activating systems

Disassembling centre console

2758

Removing filler piece

5. Loosen adhesive tape -2- and remove filler piece (sound absorber)

-1-

 .

Assembling the centre console

Assembling centre console

Sticking in sound absorbent film.

Note

Only if replacing the centre console.

1. Remove protective film -1- from bonding point and stick sound absorbent film -2- inside the centre

console -3- .

Diagnostic system: reading out fault memory and activating systems

 Assembling the centre console

2759

Sticking in a filler piece

2. Position filler piece (sound absorber) -1- and use commercially available adhesive tape -2- to fix it

to the centre console.

Installing extension

Note

Only in the coupé.

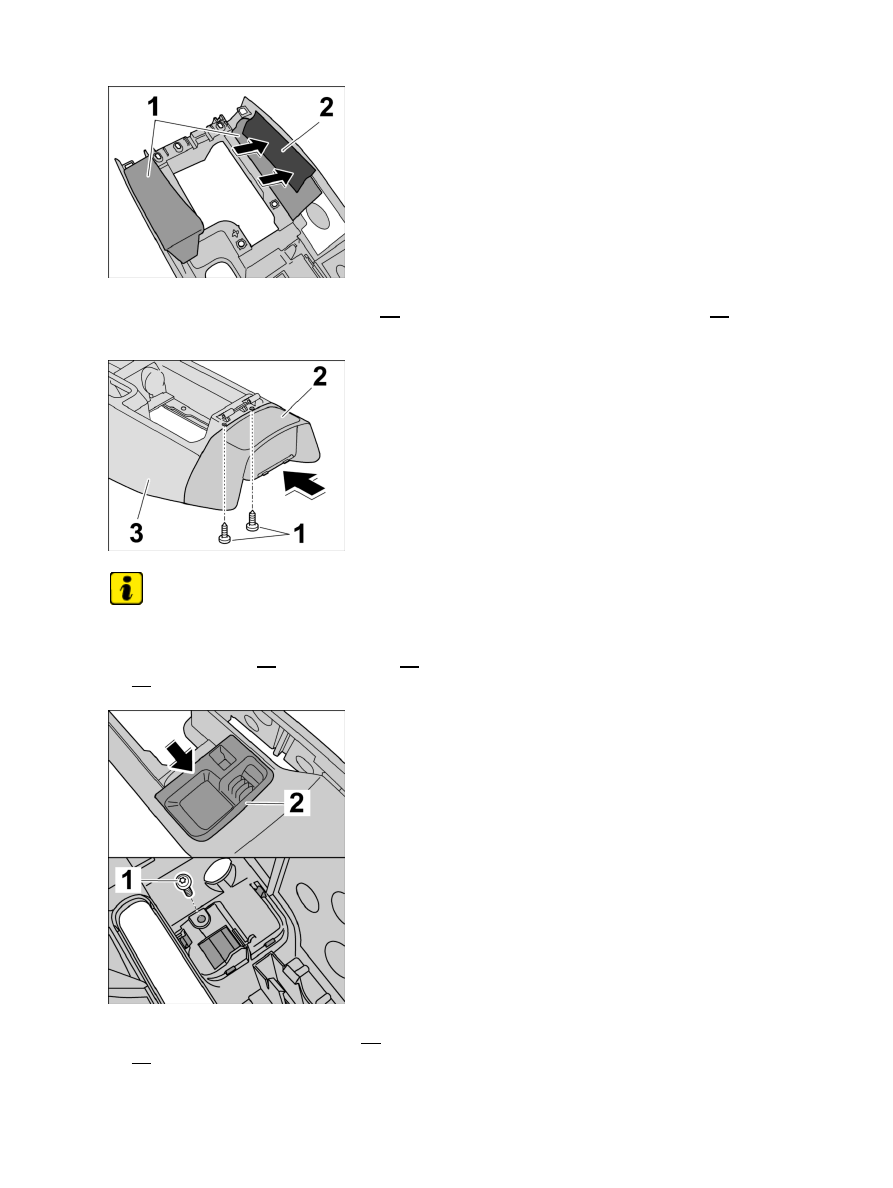

3. Position extension -2- on centre console -3- and secure with fastening screws

-1-

 .

Installing locking mechanism insert

4. Press in locking mechanism insert -2- until it clicks into place and tighten with fastening screw

-1-

 .

Diagnostic system: reading out fault memory and activating systems

Assembling centre console

2760
