Porshe 911 (997). Manual - part 640

Removing support for glove compartment

2. Unscrew fastening screws at the front -1- and remove support for glove compartment lid

-2-

 .

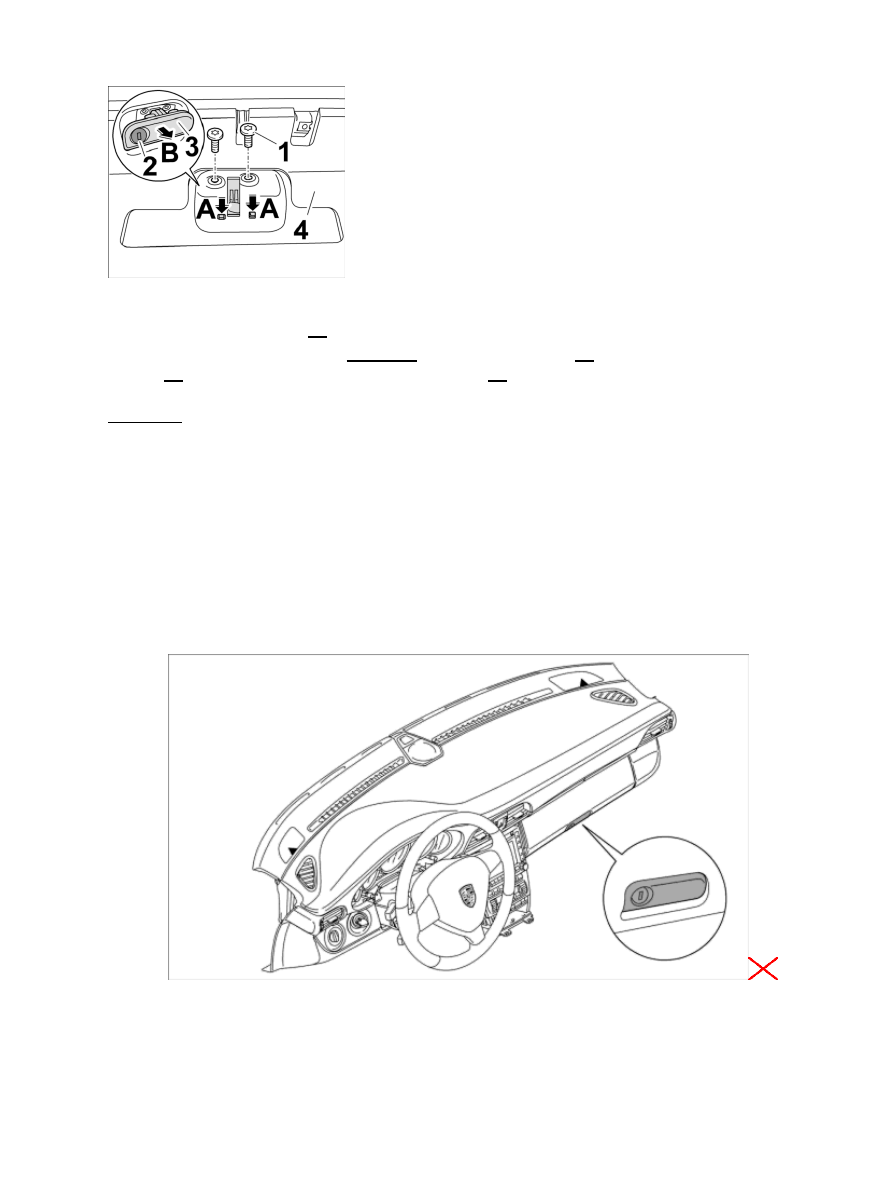

Removing glove compartment lock

Installation Location:

Installation position of glove compartment lock

Note

The lock barrel for the glove compartment can only be removed when replacing the handle.

•

Removing the lock barrel can damage the handle.

•

Diagnostic system: reading out fault memory and activating systems

Removing support for glove compartment lid

2717

Removing glove compartment lock

1. Unscrew fastening screws -1- .

2. Loosen the locking tabs slightly -arrow A- and remove the handle -3- with the glove compartment

lock -2- out of the support for the glove compartment -4- .

Installing glove compartment lock

Installing glove compartment lock

Installation Location:

Installation position of glove compartment lock

Diagnostic system: reading out fault memory and activating systems

Removing glove compartment lock

2718

Installing glove compartment lock

1. Position the handle -3- with the glove compartment lock -2- in the support for the glove compartment lid

-4-

 ( -arrow- ) and secure in position with the fastening screws -1- .

Installing support for glove compartment lid

Installation Location:

Installation position of glove compartment lock

Installing support for glove compartment

1. Position support for glove compartment lid -2- on the glove compartment lid -arrow- and screw in

Diagnostic system: reading out fault memory and activating systems

Installing glove compartment lock

2719

the fastening screws at the front -1- .

Securing support for glove compartment

2. Screw in fastening screws at the side -1- .

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
