Porshe 911 (997). Manual - part 617





- Preliminary work
- Removing side-section trim
- Installing side-section trim
- Subsequent work

Preliminary work

Preliminary work

Remove wheel. → 440519 Removing and installing wheel - removing

Removing side-section trim

Removing side-section trim

Installation Location:

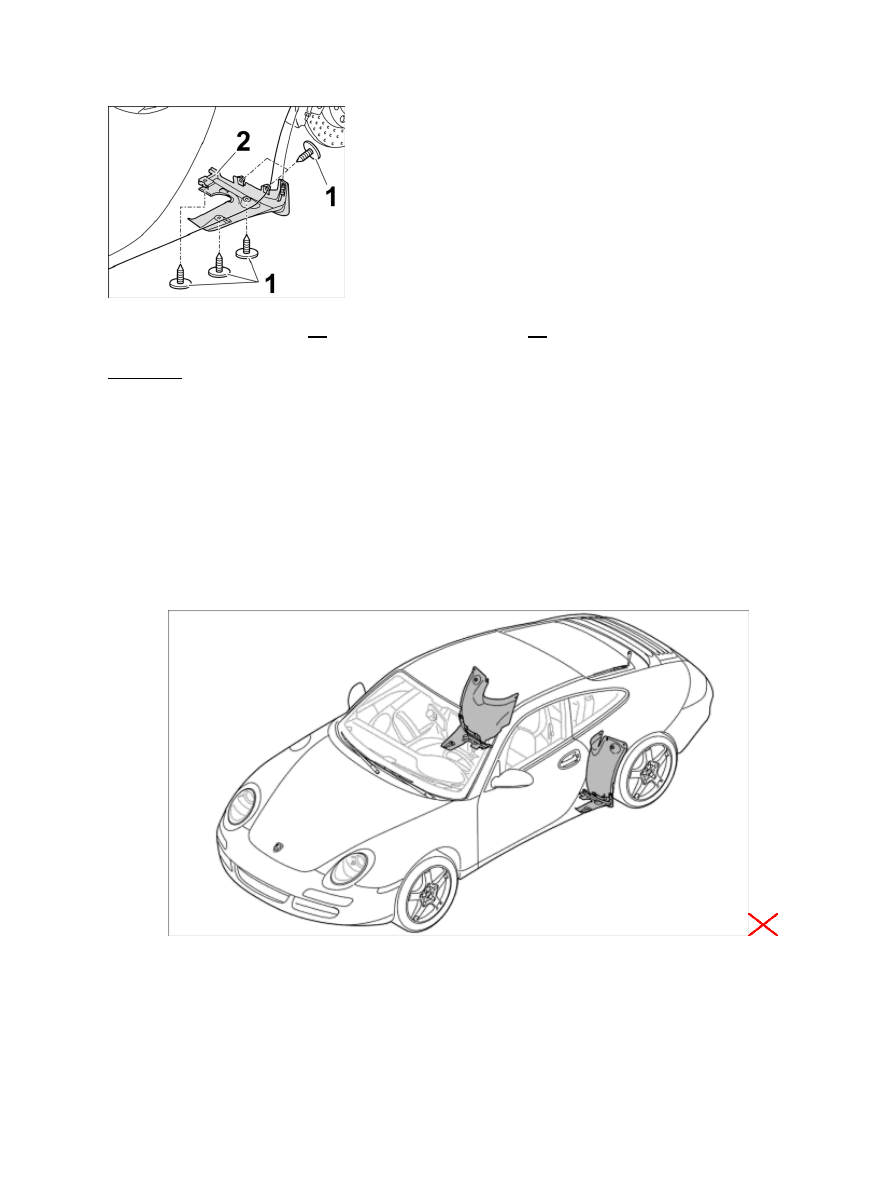

Installation location of side-section trim

2625

Removing side-section trim

1. Unscrew fastening screws -1- and remove side-section trim -2- .

Installing side-section trim

Installing side-section trim

Installation Location:

Installation location of side-section trim

Diagnostic system: reading out fault memory and activating systems

Removing side-section trim

2626

Installing side-section trim

1. Check sheetmetal nuts -3- for deformation, replacing if necessary -3- .

2. Insert side-section trim -2- and push retaining clip -4- into side

panel.

3. Screw in fastening screws -1- and tighten to specified tightening torque → : 1.5

ftlb.

 .

Subsequent work

Reworking

Install wheel. → 440519 Removing and installing wheel - installing
