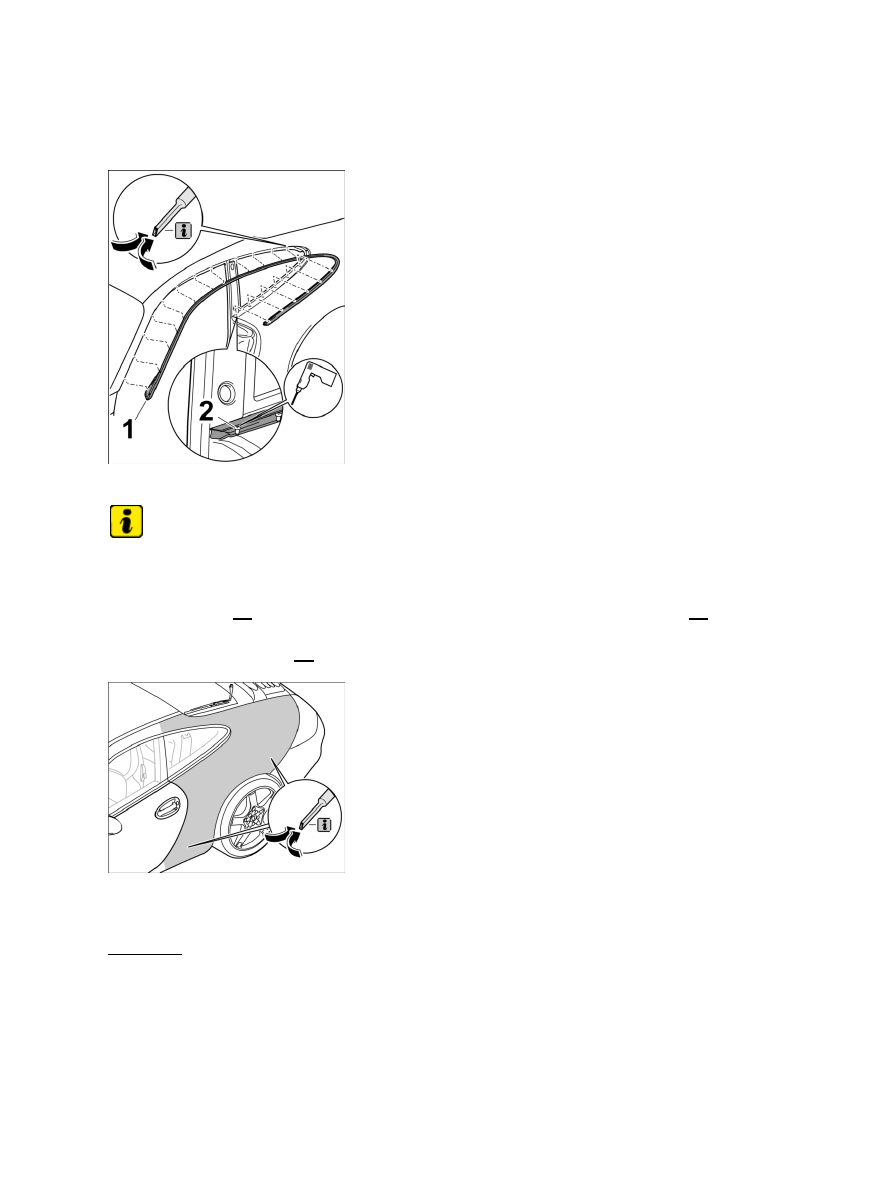

Removing seal for roof frame

Removing seal for roof frame

Note

During drilling, get a second person to suck away the rivets and rivet swarf with a vacuum cleaner from the
interior of the side section area.

1. Drill out rivets -2- from the integrated sheetmetal strip of the seal for the roof frame -1- using a 4.1

mm drill bit.

Remove seal for roof frame -1- .

Vacuuming out the interior of the side section

2. Clean out the complete interior of the side section with a vacuum cleaner.

Installing side window seal

Diagnostic system: reading out fault memory and activating systems

Removing seal for roof frame

2573

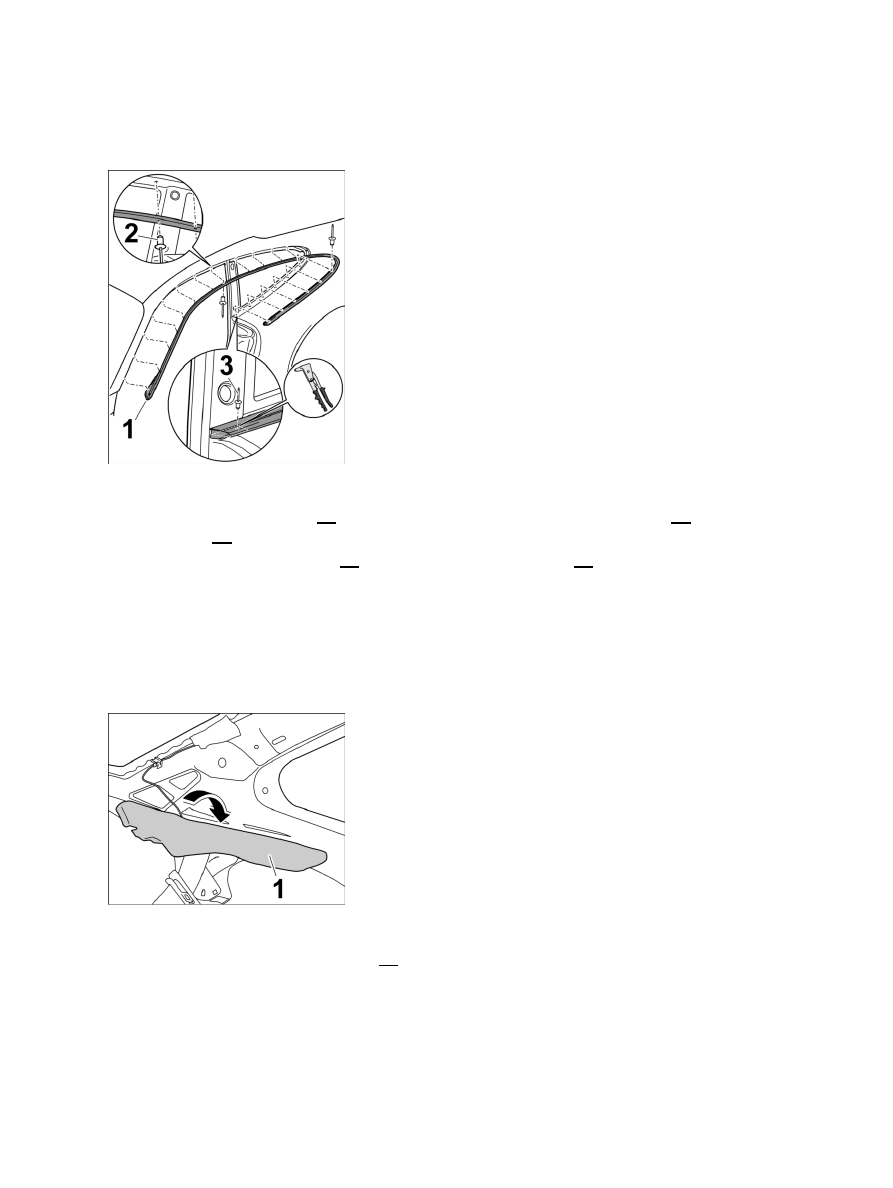

Installing seal for roof frame

Installing seal for roof frame

1. Position seal for roof frame -1- on the centring hole and rivet down with the rivet -2- . Rivet roof area

using rivets -2- (4.0 x 7.9).

2. Rivet down seal for roof frame -1- in side section area using rivets -3- (4.0 x

6.3).

Fastening sound absorber

Sticking in the seal

1. Stick in the existing side section seal -1- using a commercially available adhesive or replace it, if

necessary.

Diagnostic system: reading out fault memory and activating systems

Installing seal for roof frame

2574

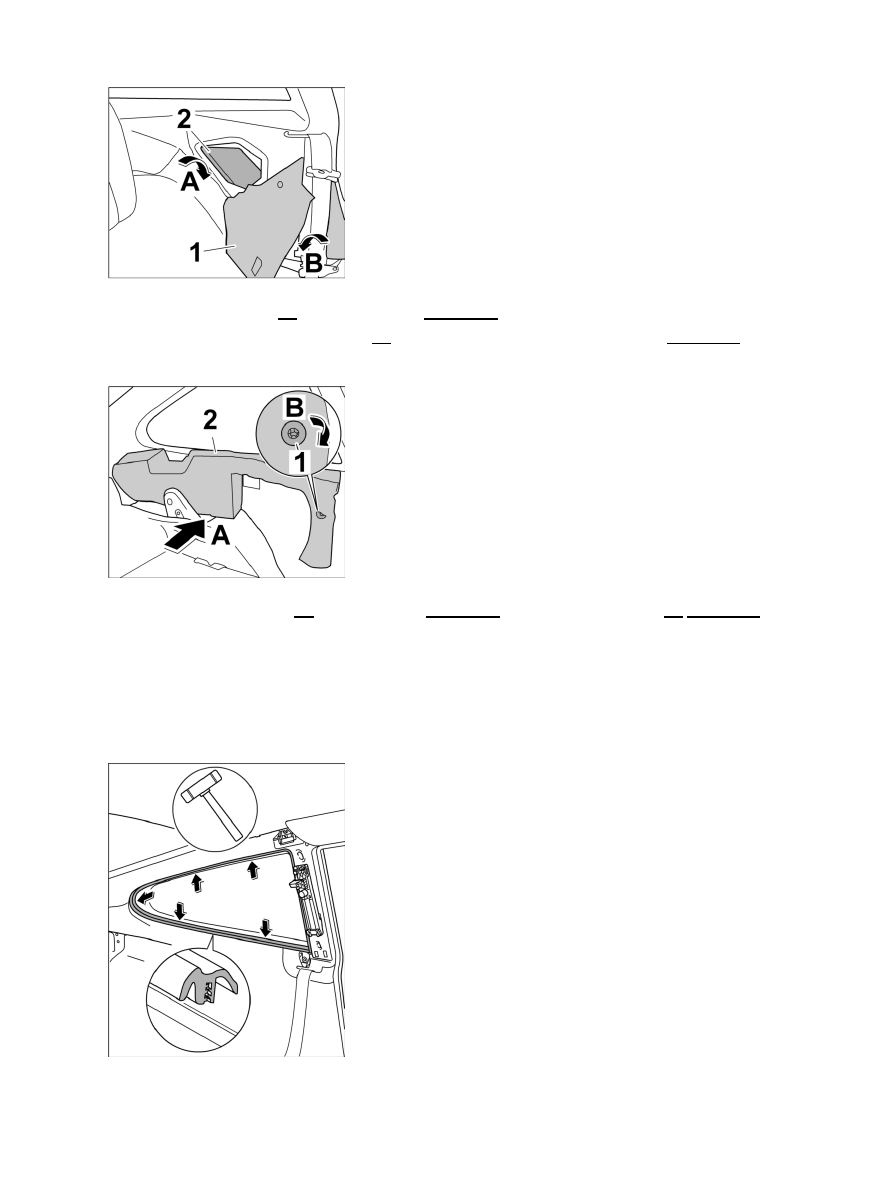

Installing sound absorber

2. Insert sound absorber -2- in the side section -Arrow A- .

3. Stick in the existing sound absorber -1- using a commercially available adhesive -Arrow B- , or

replace it, if necessary.

Installing sound absorber

4. Position sound absorber -2- on the side wall -Arrow A- and screw in fixing clip -1- -Arrow B-

.

Installing side window seal

Installing side window seal

Diagnostic system: reading out fault memory and activating systems

Fastening sound absorber

2575

1. Fit side window seal to the rim of the side window section by hand.

Subsequent work

Subsequent work

1. Fasten deflector for rear three-point belt. → 691219 Removing and installing rear three-point belt -

chapter on "Installing"

2. Install side window. → 647519 Removing and installing side window - chapter on "installing"

3. Fit rubber seal for door. → 576319 Removing and installing rubber seal for door - chapter on

"Installing"

997110, 997111, 997120, 997121, 997410, 997411, 997430, 997431

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•
