Releasing power windows

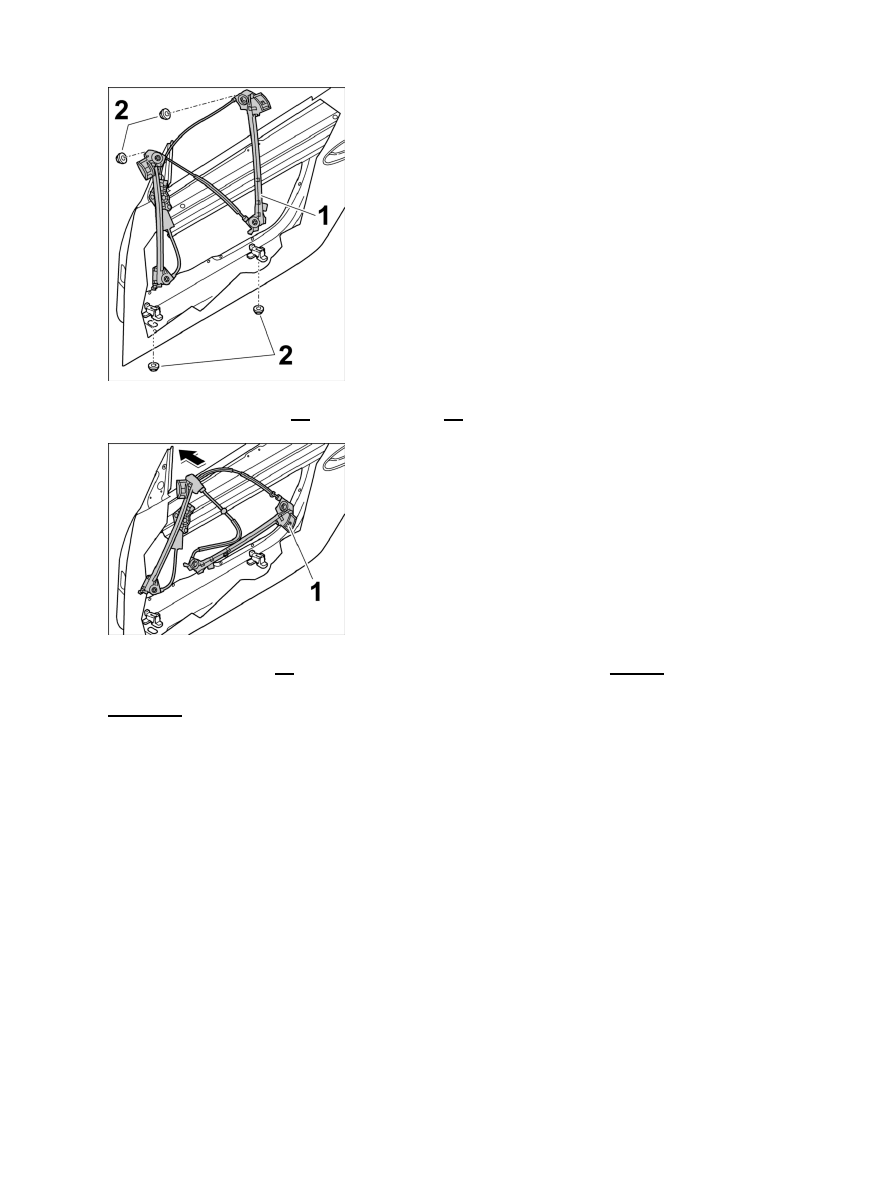

3. Unscrew fastening nuts -2- on power windows -1- .

Removing power windows

4. Fold power windows -1- together and remove through the door opening -arrow- .

Installing front power windows

Adjusting the lower stop of the power window unit

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing front power windows

2517

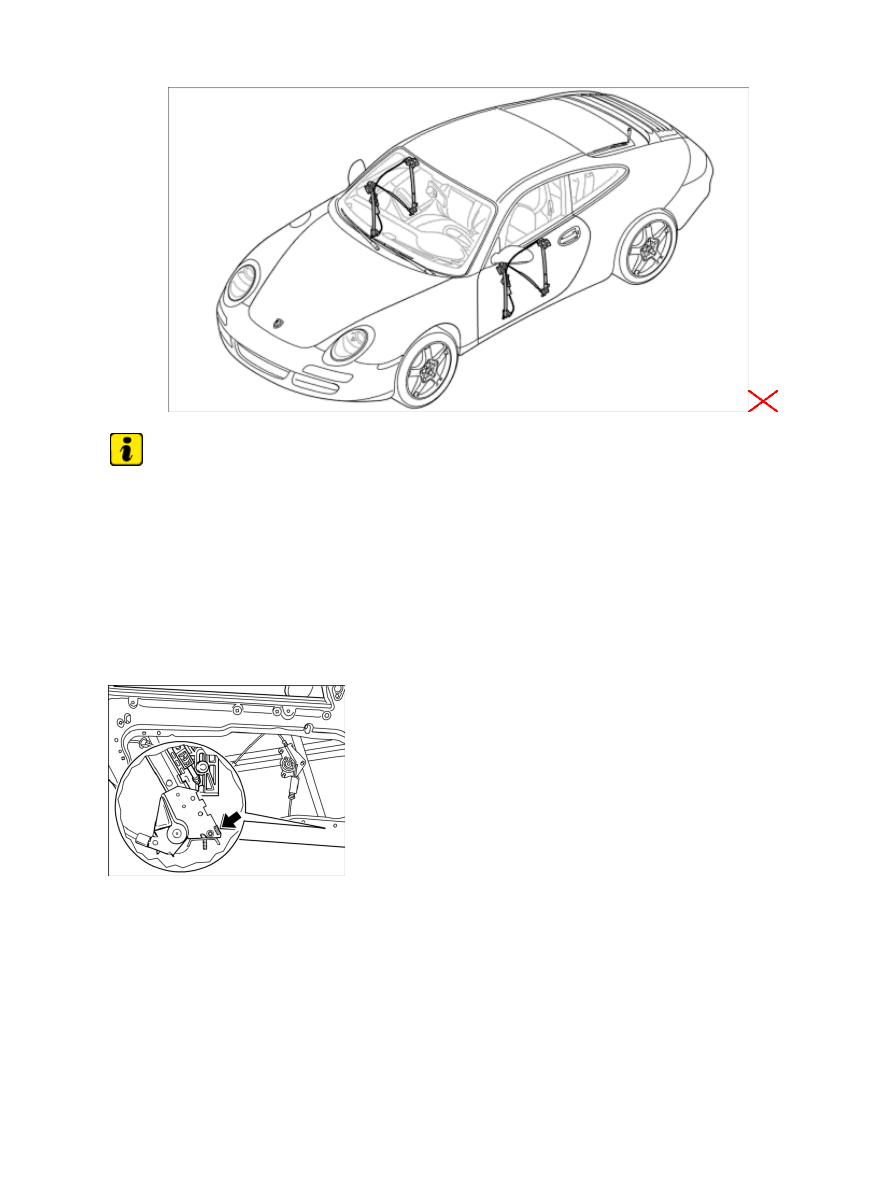

Installation position of front power windows

Note

When replacing the power window unit, make sure that the correct position of the lower limit stop is
selected for the respective model.

•

There are three bores lying one above the other with the screwed-on limit stop in the front power
window unit rail.

•

The limit stop must be fitted in the bottom bore for the 997 model.

•

Limit stop adjustment

Installing front power windows

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Adjusting the lower stop of the power window unit

2518

Installation position of front power windows

Installing power windows

1. Fold power windows -1- together and insert through the door opening -arrows- .

Securing power windows

ATTENTION

Noises on the power windows due to interfacing the window lifter rails!

Diagnostic system: reading out fault memory and activating systems

Installing front power windows

2519

→ When moving the window lifter rails, they must be adjusted in parallel both during the first installation as

well as during subsequent adjustment.

2. First position the lower fastening points of the power windows -1- to the dimension -X = 5 mm- and

tighten with fastening nuts - 2- . Tightening torque → Final tightening : 7 ftlb.

Securing power windows

3. Then screw down the upper fastening points of the power windows -1- with the fastening nuts -2- .

Tightening torque → Final tightening: 7.2 ftlb.

Clipping in cable

4. Clip in cable at retaining clip -1- .

Fitting rubber sleeve

5. Fit rubber sleeves

-1-

 .

Diagnostic system: reading out fault memory and activating systems

Installing front power windows
