Diagnostic system: reading out fault memory and activating systems

Reworking (coating) front door window

2509

- Removing the front window shaft seal
- Installing the front window shaft seal

Removing the front window shaft seal

Removing the front window shaft seal

Installation Location:

Installation position of front window shaft seal

Opening the front door window

1. Open the front door window -1- fully.

2510

Removing the front window shaft seal

2. Pull front window shaft seal -1- - beginning at the rear end -arrow A- - off the sheetmetal door

flange -2- in an upward direction -arrow B- .

3. Remove the front window shaft seal -1- .

Installing the front window shaft seal

Installing the front window shaft seal

Installation Location:

Installation position of front window shaft seal

ATTENTION

Door glass can become soiled during installation!

Risk of irreparable damage to front window shaft seal!

•

Diagnostic system: reading out fault memory and activating systems

Removing the front window shaft seal

2511

→ During installation, make sure that no lubricant (grease) gets onto the door glass from the window guides.

Clean door glass if necessary and check front window shaft seal for soiling, and replace the seal if
necessary.

Installing the front window shaft seal

Note

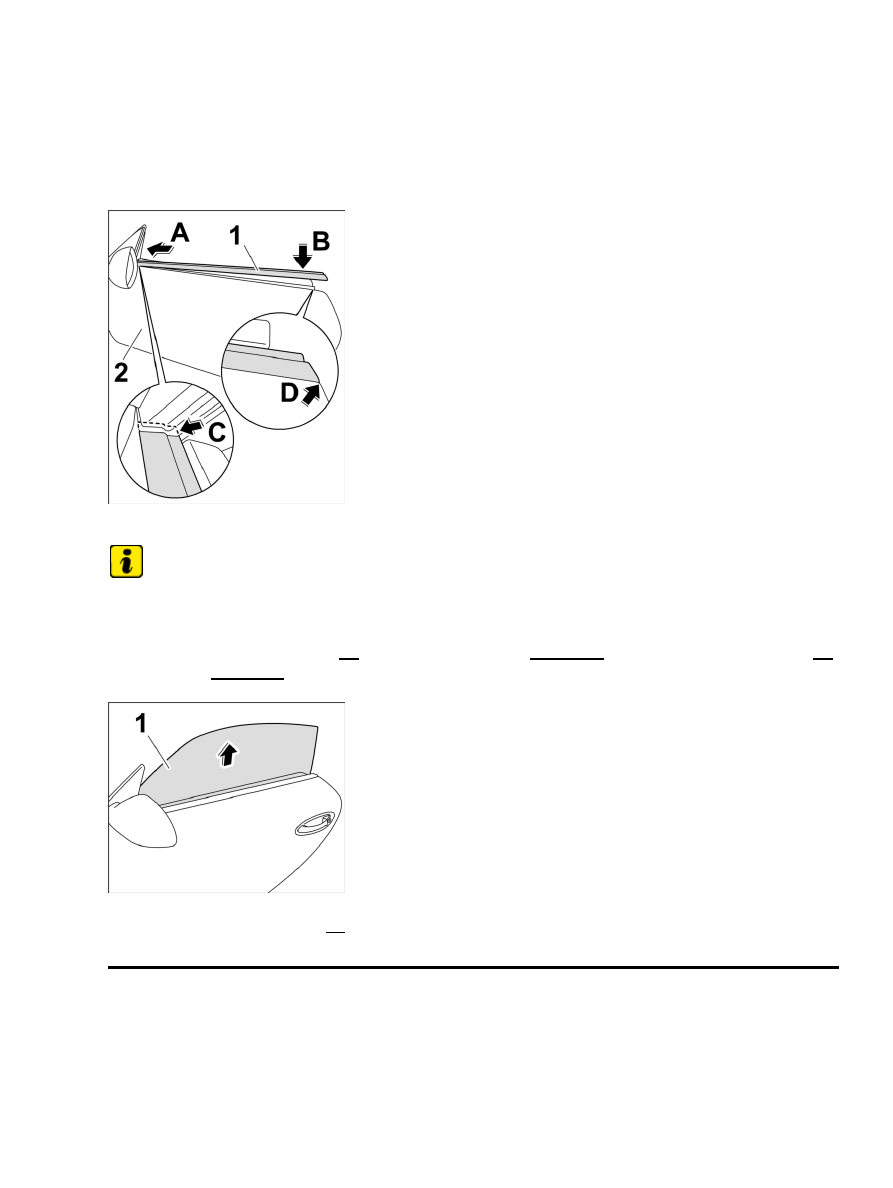

Make sure horizontal alignment is correct (Arrows C, D).

•

1. Attach front window shaft seal -1- - starting at the front end -Arrow A- - to the sheetmetal door flange -2-

from above -Arrow B- .

Closing front door window

2. Close the front door window -1- fully.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

Installing the front window shaft seal

2512
