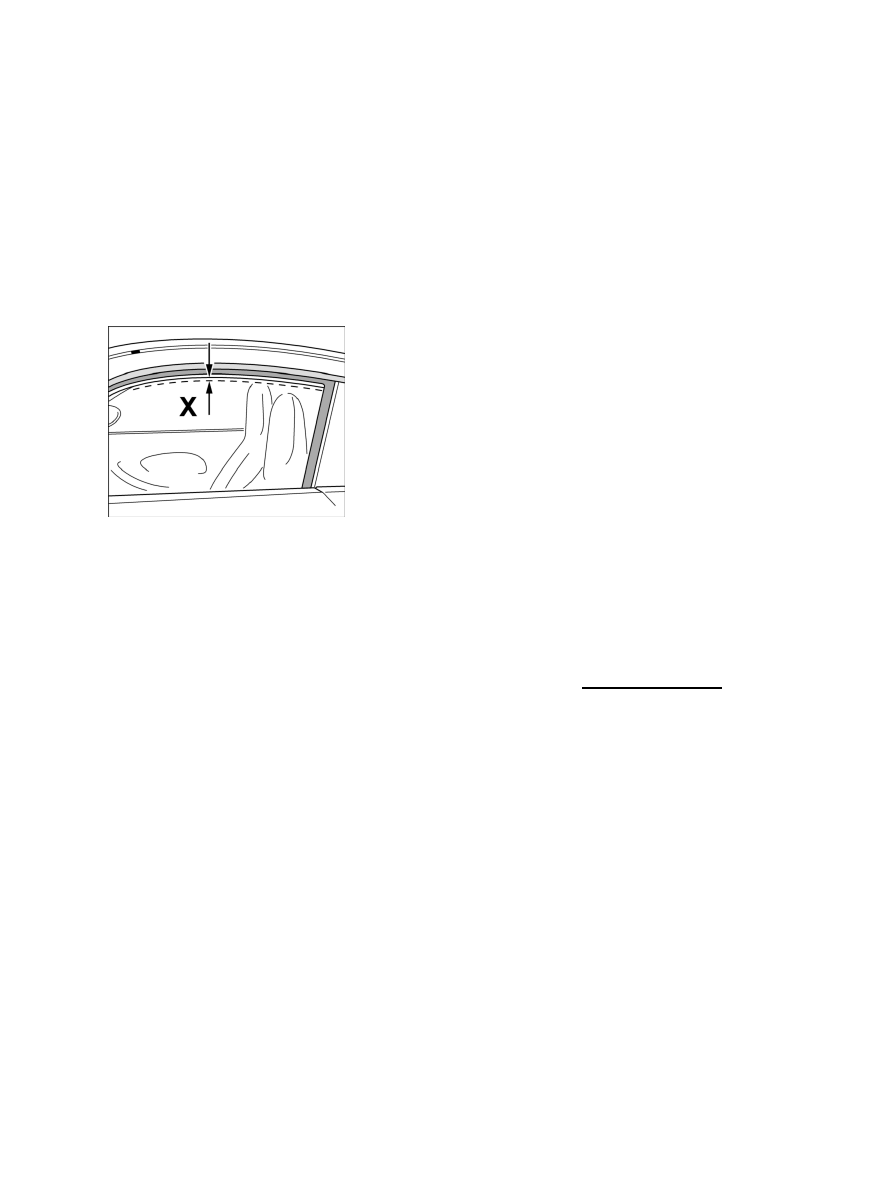

Adjustment procedure: 3. Open the door. 4. Lock door lock with a screwdriver. 5. Re-insert the door trim panel (see Inserting door trim panel). 6. Move the power window regulator into its upper position. 7. Adjust door window height at the drivers so that the door window evenly projects approx. 2 mm above the roof strip. Overlapping of door window to roof Checking the adjustment 8. Close the door. 9. Use a wax marker to mark the door window along the roof strip. 10. Actuate the door handle until the window lowering function is activated. Lowering function adjustment value: approx. 11 mm 11. The wax marking along the door window must have the dimension -X = approx. 4 mm- . Correct adjustment if necessary. Adjustment of the door window pressing force on the door seal at the top Installation Location: Diagnostic system: reading out fault memory and activating systems Adjustment of the door window pressing force on the door seal at the top and sides 2501 |
