Porshe 911 (997). Manual - part 584





Installation position of front door window

Removing plastic lid

1. Remove plastic lid. Fastening screws are then accessible.

Detaching door window

2. Loosen fastening screw -1- of the clamping jaws at the front and rear by 2

turns.

Diagnostic system: reading out fault memory and activating systems

Removing front door window

2493

Removing door window

3. Pull front door window -1- upwards out of the door channel -arrow- .

Installing front door window

Installing front door window

ATTENTION

Door glass can become soiled during installation!

Risk of irreparable damage to front window shaft seal!

•

→ During installation, make sure that no lubricant (grease) gets onto the door glass from the window guides.

Clean door glass if necessary and check front window shaft seal for soiling, and replace the seal if
necessary.

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing front door window

2494

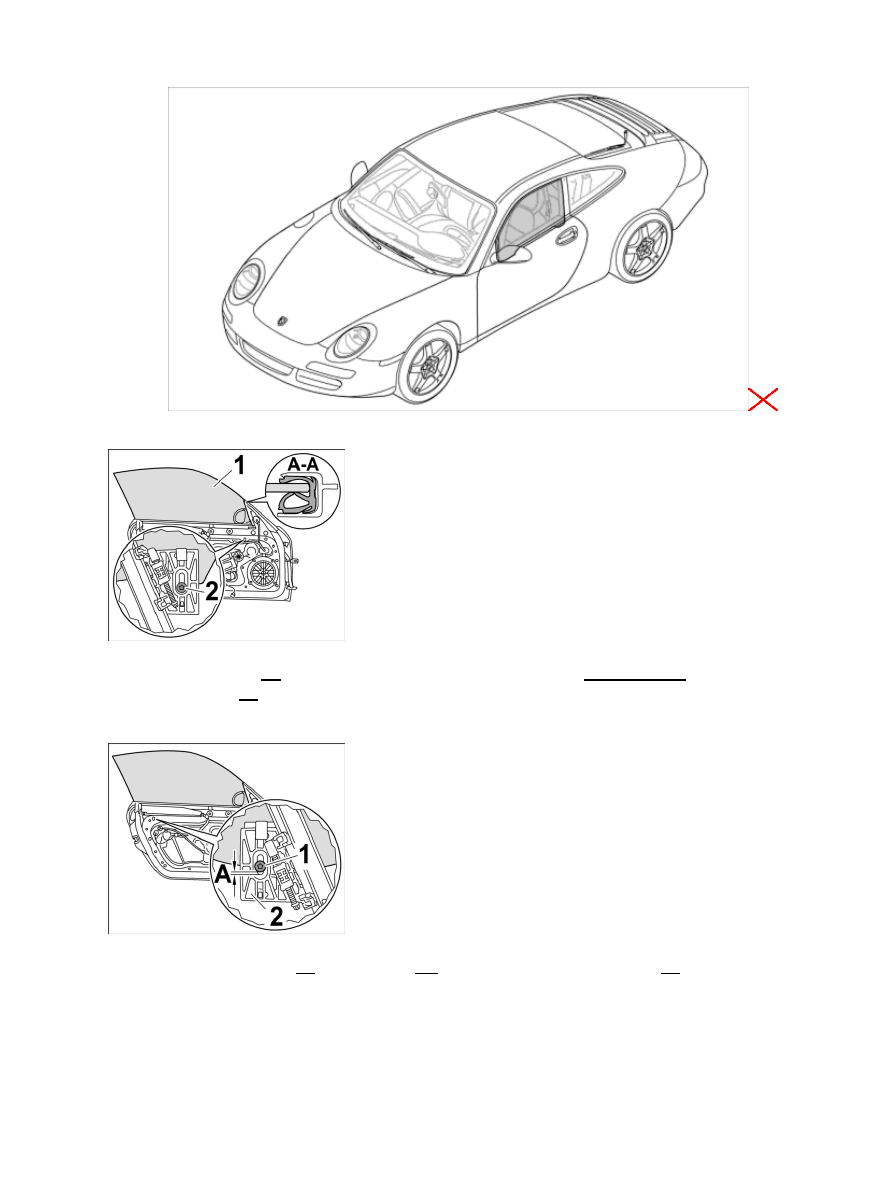

Installation position of front door window

Installing front door window

1. Insert front door window -1- into the door channel -Arrows- and position in the clamping jaws -2- .

2. Press the door window down as far as it will go -Arrow- into the clamping jaws.

Securing front door window

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing front door window

2495

Installation position of front door window

Securing front door window

1. Slide door window -1- all the way forward into the window channel -section A - A- and screw down the

fastening screw -2- on the front clamping jaw. Tightening torque → Final tightening: 8.5 (6.25) Nm
(ftlb.) +/-1.5 (1) Nm (ftlb.)

 .

Securing door window

2. Raise rear clamping jaw -2- approx. 4 mm -A- and screw down fastening screw -1- . Tightening torque →

Final tightening: 8.5 (6.25) Nm (ftlb.) +/-1.5 (1) Nm (ftlb.)

 .
