Porshe 911 (997). Manual - part 578





H1-H8

Item .

Designation

Item .

Designation

-H1-

Cleaning solution

-H5-

Cartridge, component A

-H2-

Primer

-H6-

Cartridge, component B

-H3-

Activator

-H7-

Mixing nozzle

-H4-

Swab

-H8-

Processing nozzle

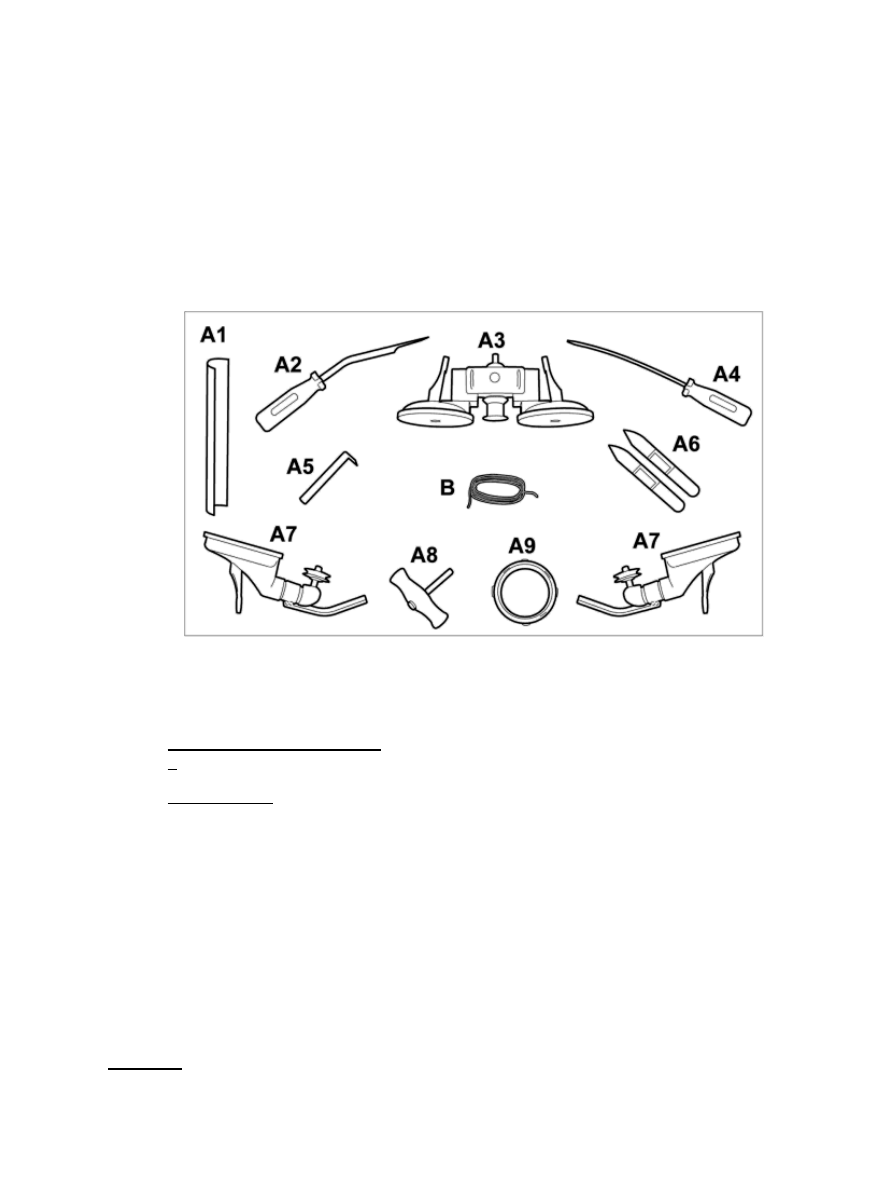

Glass separating tool

Item

Designation

Source

Explanation

-A-

Glass separating tool vag 1474
b

→ "See Workshop Equipment Manual, Chapter
3.5"

Contains set
components
A1-A9

-B-

Cutting thread

→ "See Parts Catalogue in Main Group 8"

Item

Designation

Item

Designation

-A1-

Guide rails

-A6-

Filler

-A2-

Cutting tool (wire holder)

-A7-

Steering roller with arm bracket

-A3-

Spooling device

-A8-

Handle

-A4-

Awl

-A9-

Square cutting wire

-A5-

Guide rails

Diagnostic system: reading out fault memory and activating systems

Tools and materials

2469

Removing windscreen

Removing spacer blocks

Removing spacer blocks

1. Insert a spatula under the spacer blocks -1- and remove the expanding rivets. Spacer blocks -1- must be

replaced.

Removing windscreen

Note

The door windows must not be closed until after the curing time has elapsed.

•

1. Lower the door windows.

Removing windscreen

2. Remove windscreen with the cutting wire separator. →   General information on installing and removing

car windows

Diagnostic system: reading out fault memory and activating systems

 Removing windscreen

2470

Preparing window frame for installation

Removing adhesive from the body

Note

The surface coating of adhesive residue on the window aperture of the body acts as an adhesive base
for new bonding material. Keep cut surfaces clean and free of grease and do not clean with cleaning
solution.

•

Removing adhesive from the body

1. When removing remaining adhesive -2- with the cutting tool -C- and the flashing knife -D- on the body,

ensure that a surface coating of adhesive remains -3- .

Cleaning and priming areas that are free of adhesive residue or have paint
damage or where there is newly built-up paint in the window aperture of the
body

Note

A flash-off time of at least 2 minutes must be observed between the cleaning of the window aperture
and the application of the primer! No cleaning solution residues must remain on the body.

•

Diagnostic system: reading out fault memory and activating systems

 Preparing window frame for installation

2471

Cleaning and priming the body

1. Clean areas that are free of adhesive residue or have new paint or where there is damage to the top coat

paint in the non-visible area of the window aperture in the body with cleaning solution -H1- and touch up
with primers -H2- .

Preparing windscreen for installation

Removing windscreen seal

Note

Only if the windscreen is re-installed

•

Pull off the seal

1. Pull off the seal -4- . Remove adhesive residues with cleaning solution -H1- .

Diagnostic system: reading out fault memory and activating systems

Cleaning and priming areas that are free of adhesive residue or have paintdamage or where there is newly built-up paint in the window aperture of thebody

2472
