Porshe 911 (997). Manual - part 573

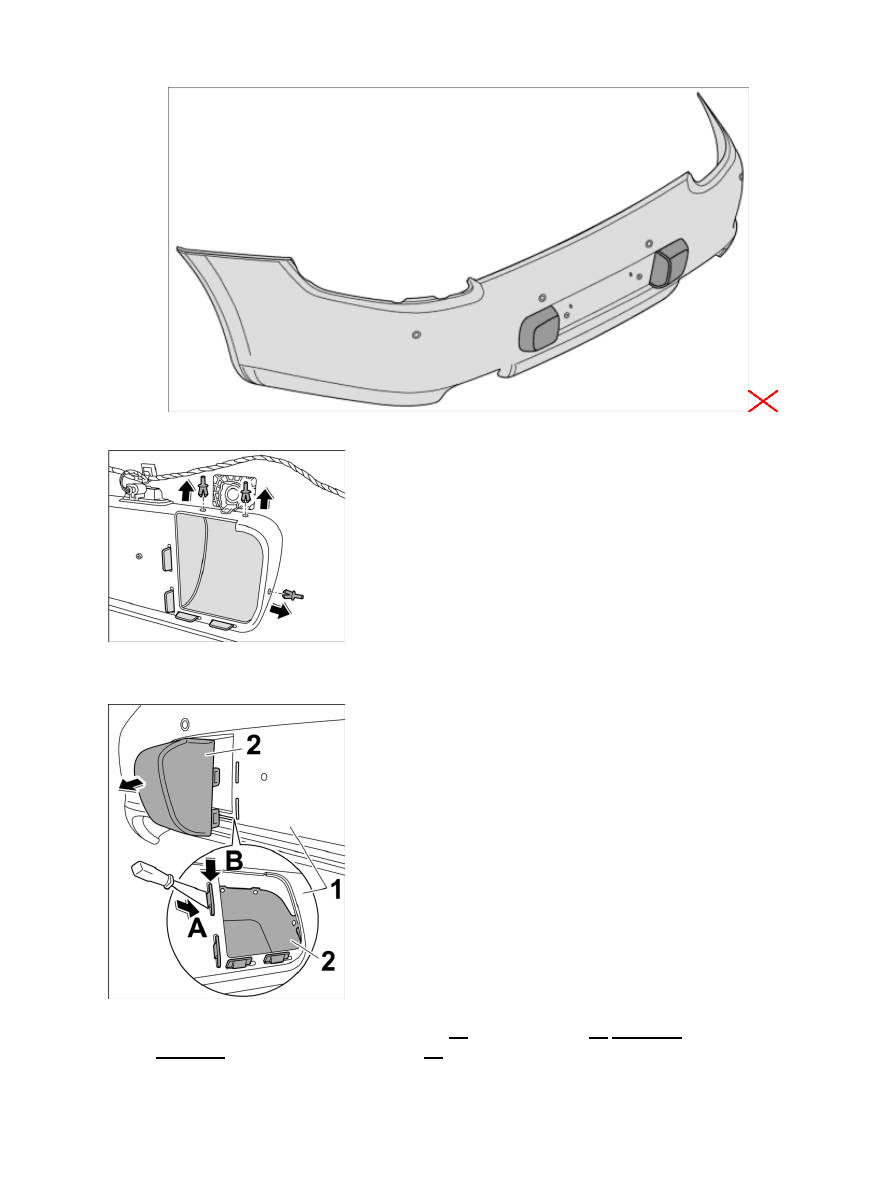

Main illustration rear bumper horn

Unclipping expanding clips

1. Push retaining pins from the inside and unclip expanding clips.

Removing the bumper horn

2. Insert a spatula laterally between the rear apron -1- and bumper horn -2- -arrow A- . Press in the locking

tab -arrow B- and remove the bumper horn -2- .

Diagnostic system: reading out fault memory and activating systems

Removing rear bumper horn

2449

Installing rear bumper overrider

Installing the rear bumper horn

Installation Location:

Main illustration rear bumper horn

Installing the rear bumper horn

1. Position the bumper horn -2- on the rear apron -1- and press in until the locking tabs

engage.

Diagnostic system: reading out fault memory and activating systems

 Installing rear bumper overrider

2450

Fastening the bumper horn

2. Fasten the bumper horn with the expanding clips by pressing in the retaining

pins.

Subsequent work

Subsequent work

Note

Only for vehicles with ParkAssist.

1. Install sensor for ParkAssist. → 917519 Removing and installing sensor for ParkAssist - installing

2. Install rear spoiler. → 635519 Removing and installing rear spoiler - chapter on "installing" [997110

997310 997410 997610]→ 635519 Removing and installing rear spoiler - chapter on "installing" [997120
997320 997430 997620]
