Adjustment dimensions of the bumper

Note

In order to reduce adjustment work to a minimum when assembling the rear spoiler, the rear bumper
or centre retaining strip must be aligned with the lower support of the rear lid according to the
dimensions shown above.

•

However, the precondition for precise positioning of the components is that the rear lid is optimally
adjusted and correctly locked in the lock in accordance with the joining plan, before the rear bumper
or centre retaining strip are assembled.

•

Note

All measurements refer to the position -V = 280 mm- .

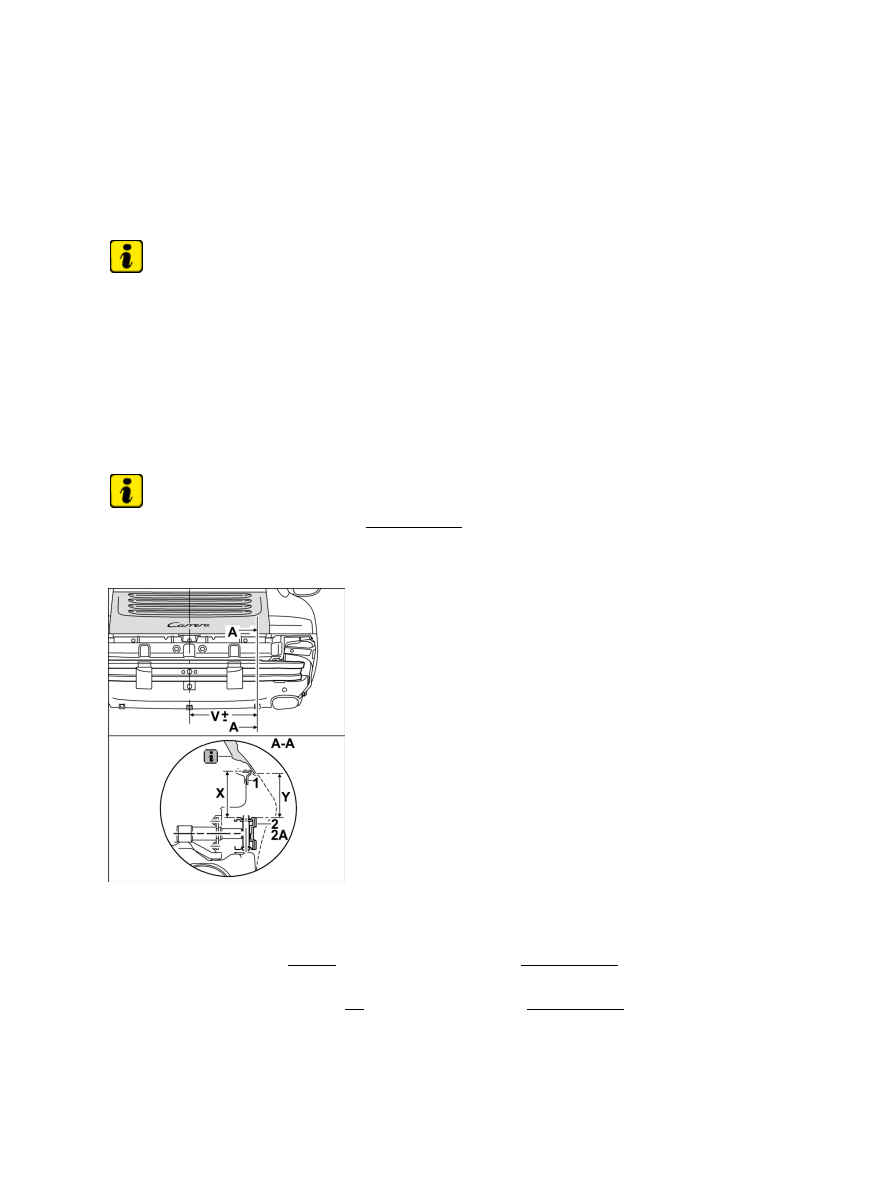

Adjustment dimensions of the bumper

1. Adjust the rear lid according to the joining plan. → 5  Diagram - body gap dimensions

2. Adjust the rear bumper -2, 2A- on both sides to dimension -X = 173 mm- . The measurements can be

changed by undoing or moving the impact pipes or impact absorbers (Canada version).

3. Adjust the centre retaining strip -1- according to dimension -Y = 171 mm- .

Diagnostic system: reading out fault memory and activating systems

2421

Correct assembly of the heat shields

ATTENTION

Damage will result if heat shields are fitted incorrectly!

Observe the following points during assembly!

•

→ Make sure the heat shields -Pfeil- overlap correctly.

→ There should not be any continuous gaps along the entire length of the heat

shields.

→ A gap of up to 2 mm wide and 30 mm long is permissible locally.

→ At least more than 80 % of the total sealing area must be sealed off without

gaps.

→ The following minimum gap dimensions must be observed.

Note

All measurements refer to the position -V = 280 mm- .

Correct assembly of the heat shields

1. After assembly of the rear spoiler, check that there is a gap dimension of -W = 40 mm- between the shield

of the exhaust system -1- and the lower retaining strip -2- . The heat shield must not project -Z = 2 mm- .

Diagnostic system: reading out fault memory and activating systems

Correct assembly of the heat shields

2422

Subsequent work

Subsequent work

Install rear apron. →  23 Removing and installing rear apron - installing
